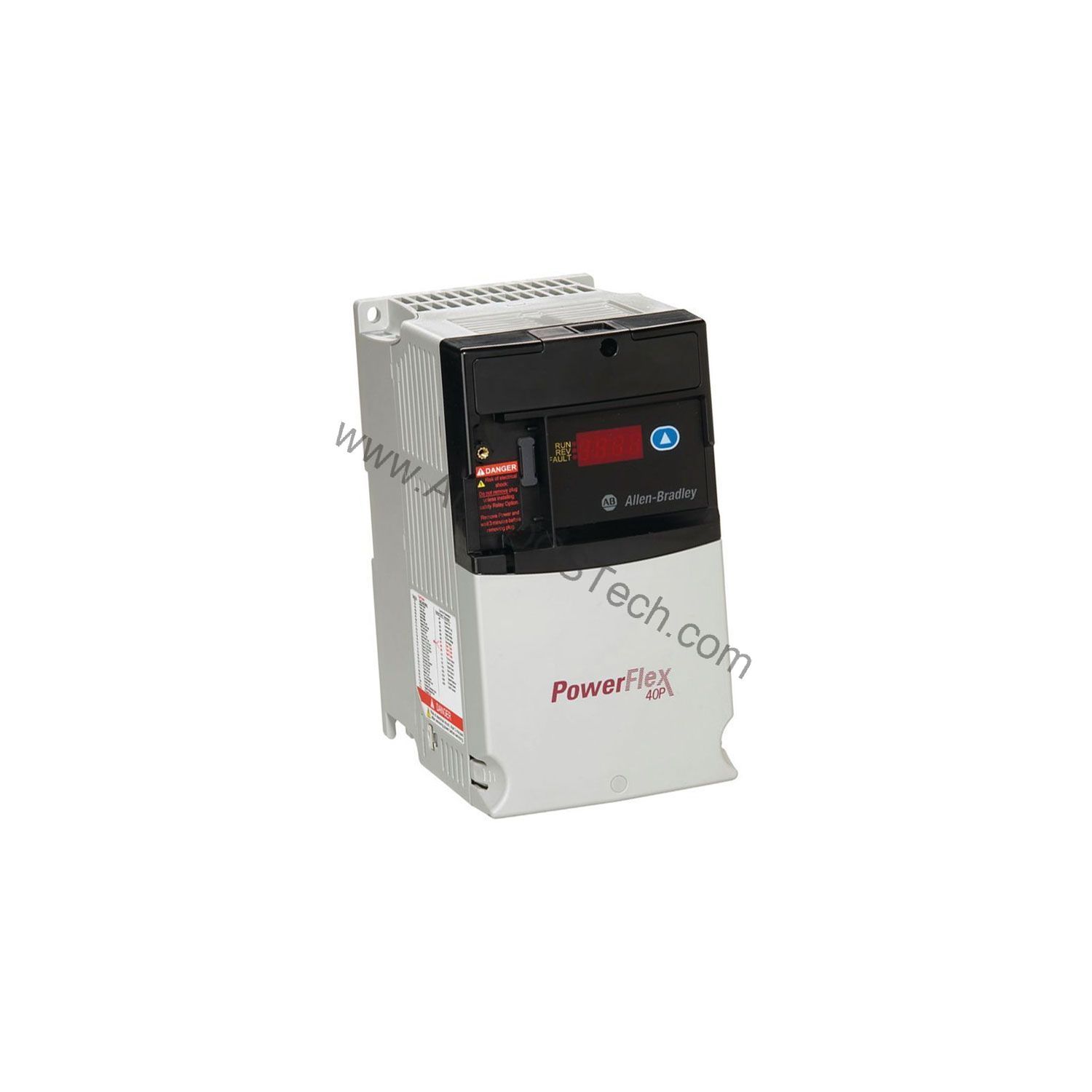

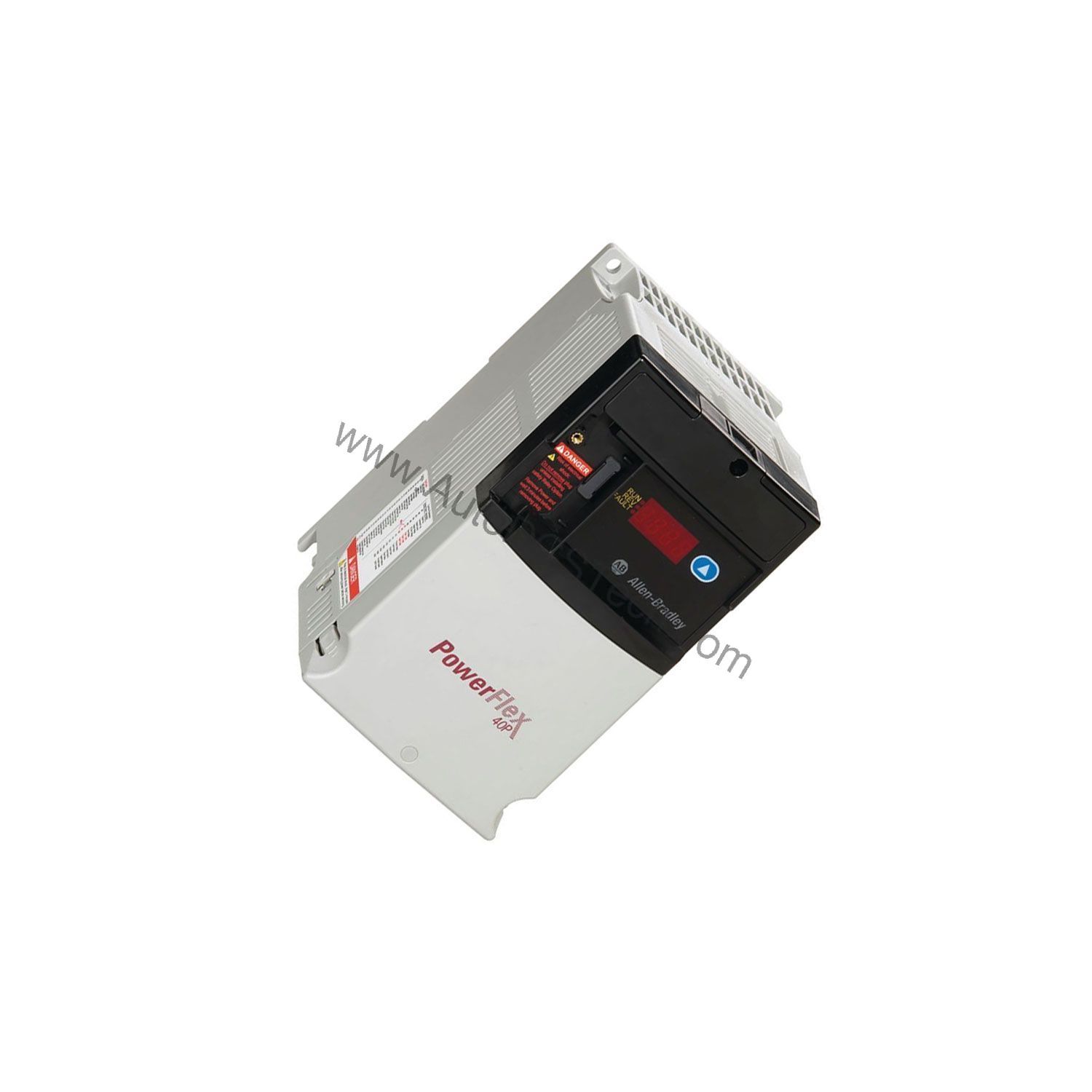

Allen-Bradley 22D-D4P0H204 PowerFlex 40P AC Drive, 480V, 4A

Technical Specifications Breakdown

Key parameters for the 22D-D4P0H204 are listed below for quick reference:

Industry Applications and Cost Benefits

The 22D-D4P0H204 is engineered for applications requiring precise speed regulation without the added expense of encoder feedback. By eliminating the need for external encoders, this drive reduces component costs and simplifies installation. The integral RS-485 port enables seamless integration into PLC-based systems, allowing centralized monitoring and control. This connectivity reduces wiring and commissioning time, directly lowering labor costs. For OEMs, the compact frame size B and flexible enclosure options minimize panel space, cutting material costs and footprint. The drive's step logic and application-specific features allow it to function as an independent position controller, reducing the need for additional controllers and associated programming costs.

Installation and Setup Guidance

Proper installation is critical for maximizing the lifespan of the 22D-D4P0H204. The DIN rail option provides flexible mounting on a panel, simplifying installation and reducing downtime. When mounting, ensure adequate ventilation to maintain ambient temperatures at or below 50°C (122°F) and relative humidity below 95% (non-condensing). The IP20 (NEMA Type open) enclosure protects against accidental contact with live parts but is not suitable for dusty or wet environments. Use the integral keypad for initial setup and local control. The relay pre-charge feature controls inrush currents, protecting the drive and connected equipment. Always follow local electrical codes and ensure proper grounding. The drive does not include a CE-compliant filter; if EMC compliance is required, an external filter may be necessary—verify with your system integrator.

Maintenance and Reliability

Regular inspection of the 22D-D4P0H204 ensures long-term reliability. Check the enclosure for dust accumulation and clean with a dry, low-pressure air stream if needed. Inspect all power and control wiring connections for tightness and signs of corrosion. Monitor ambient temperature and humidity levels to stay within specified limits. The drive's local LED provides real-time status, enabling quick detection of faults. Because the drive has no CE-compliant filter, pay extra attention to electrical noise in sensitive environments. Periodic testing of the Safe Torque Off (Category 3) function, if used, is recommended to ensure safety circuits operate correctly. Always disconnect power before any maintenance activity.

Cost-Effective Motor Control with the PowerFlex 40P Platform

Industrial operations constantly seek ways to reduce capital expenditure without sacrificing performance. The Allen-Bradley 22D-D4P0H204 adjustable frequency drive delivers precisely that balance. As part of the PowerFlex 40P product line from Rockwell Automation, this drive provides reliable speed and torque control for AC motors in a compact, cost-efficient package. Its design targets global OEM and end-user demands for space savings, flexibility, and ease of use—all while keeping total cost of ownership in check.

Compatibility and Integration

The 22D-D4P0H204 shares common accessories and options with other PowerFlex 40 drives, simplifying spare parts management. Its integral RS-485 port allows communication with Allen-Bradley PLCs and other Modbus RTU devices. The sensorless vector control mode provides speed regulation without encoder feedback, reducing system complexity. The drive's flexible programming allows quick configuration for various applications. For closed-loop control needs, the drive supports an optional Category 3 Safe Torque Off feature, enhancing safety without added hardware costs. This compatibility reduces engineering time and inventory costs, making it a cost-effective choice for multi-drive installations.

Selection Guide and Purchasing Advice

When selecting the 22D-D4P0H204, confirm that the input voltage (480V AC) and output current (4.0 A) match your motor requirements. The 2 HP rating is suitable for typical industrial motors. Consider the enclosure type (IP20) and whether a CE-compliant filter is needed for your application. If you require a filter, external options are available. For OEMs, the compact frame size B and DIN rail mounting offer space savings. Contact AutoDCSTech for a quote and to verify current lifecycle status and availability. Our team can provide technical support and recommend the right drive for your application.

Troubleshooting and Common Issues

If the drive fails to start, check the input power supply and ensure all wiring connections are secure. The local LED will indicate fault conditions; refer to the user manual for specific codes. Overheating can occur if ambient temperature exceeds 50°C or if ventilation is blocked. Ensure proper airflow and consider derating if installed in high-temperature environments. Communication issues over RS-485 may arise from incorrect wiring or baud rate settings; verify the network configuration. If the drive trips on overcurrent, inspect the motor and cabling for shorts or ground faults. The relay pre-charge feature helps manage inrush, but if the drive repeatedly faults, check the load for mechanical issues. Always consult the PowerFlex 40P user manual for detailed diagnostics. For persistent problems, contact AutoDCSTech for expert assistance.
