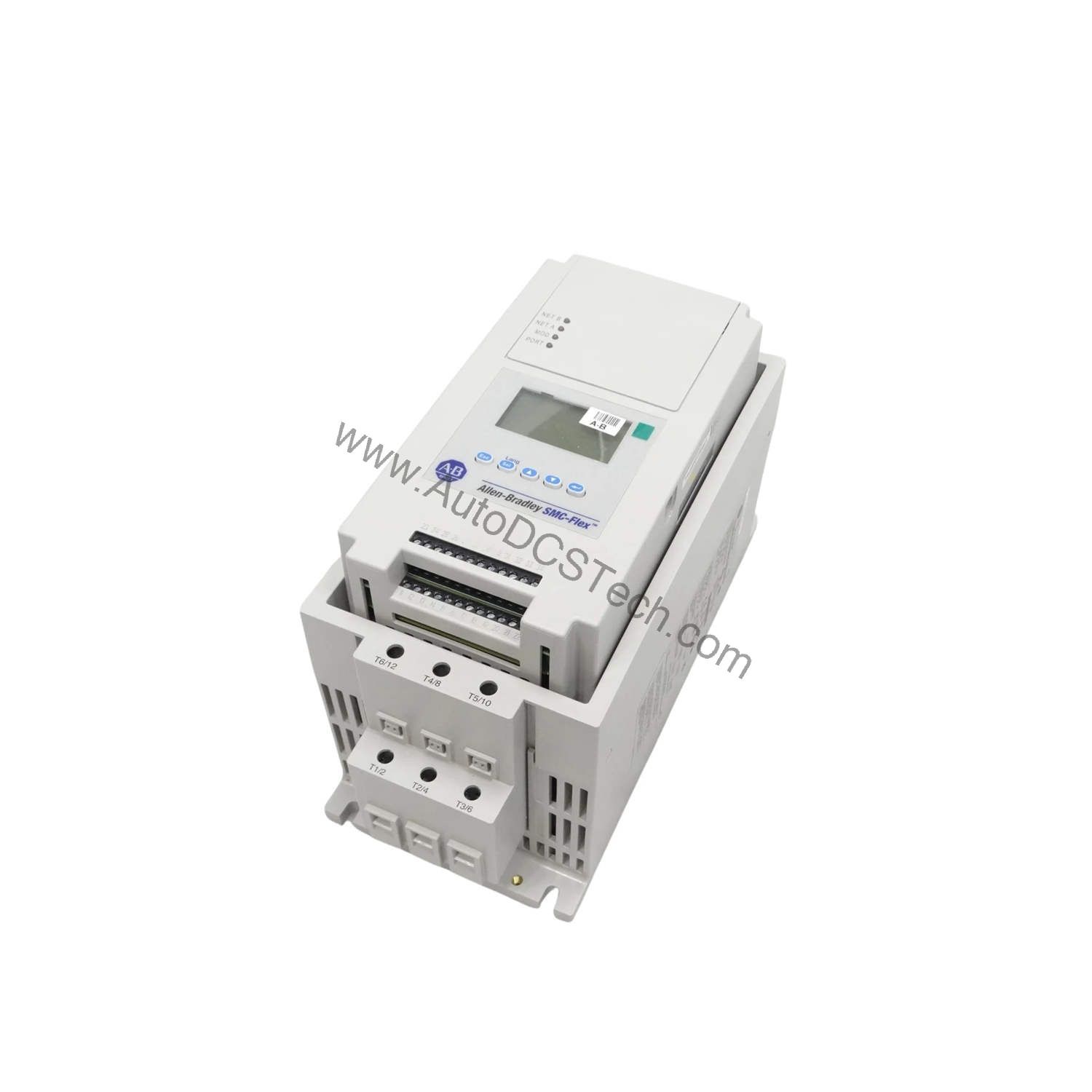

Allen-Bradley 150-F5FCD SMC-Flex Solid State Controller 5A IP65

Technical Specifications Breakdown

Key parameters for the 150-F5FCD are listed below for quick reference:

Industrial Applications and Reliability

The built-in electronic overload protection and SCR bypass reduce thermal stress on windings, extending motor life. For variable-torque loads such as centrifugal fans, the soft start feature minimizes mechanical shock to belts and bearings.

Installation and Setup Guidance

Mount the 150-F5FCD on a vertical surface to allow proper airflow around the heatsink. Use Class J fuses rated at 20A for branch circuit protection. Ensure the input line voltage matches the 500-575V AC, 3-phase supply. The control voltage of 100-240V AC should be stable within -15% to +10%.

Maintenance and Reliability

Inspect the IP65 enclosure gasket annually for cracks or compression set. Clean the heatsink fan (20VA) every six months to prevent overtemperature trips. The controller's operating temperature range of 23 to 104 °F at 5 to 95% relative humidity suits most indoor industrial environments.

Reliable Motor Starting with the Allen-Bradley 150-F5FCD

From a maintenance engineer's perspective, the Allen-Bradley 150-F5FCD SMC-Flex Smart Motor Controller delivers robust, microprocessor-based starting for three-phase induction motors. Its IP65 (Type 4/12) enclosure protects against dust and water jets, reducing downtime in washdown or dusty environments. The controller rating of 5 A and 3 Hp @ 460V AC ensures precise torque control for pumps, conveyors, and fans.

Compatibility and Integration

The DPI communication port allows connection to optional HIM modules or communication modules for remote monitoring. Four programmable auxiliary relay contacts (3A at 120V AC, 1.5A at 240V AC) can signal fault, alarm, or up-to-speed status to a PLC.

Selection Guide and Purchasing Advice

When selecting a replacement, verify that your motor's full-load current does not exceed 5A. The 150-F5FCD is cUL-us, CE, UL, and CCC certified. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting and Common Issues

If the controller fails to start, check the control voltage at 100-240V AC and the input line voltage. A tripped Class J fuse indicates a short circuit or overload. Use the built-in diagnostics via the DPI port to read fault codes for phase reversal or voltage unbalance.
