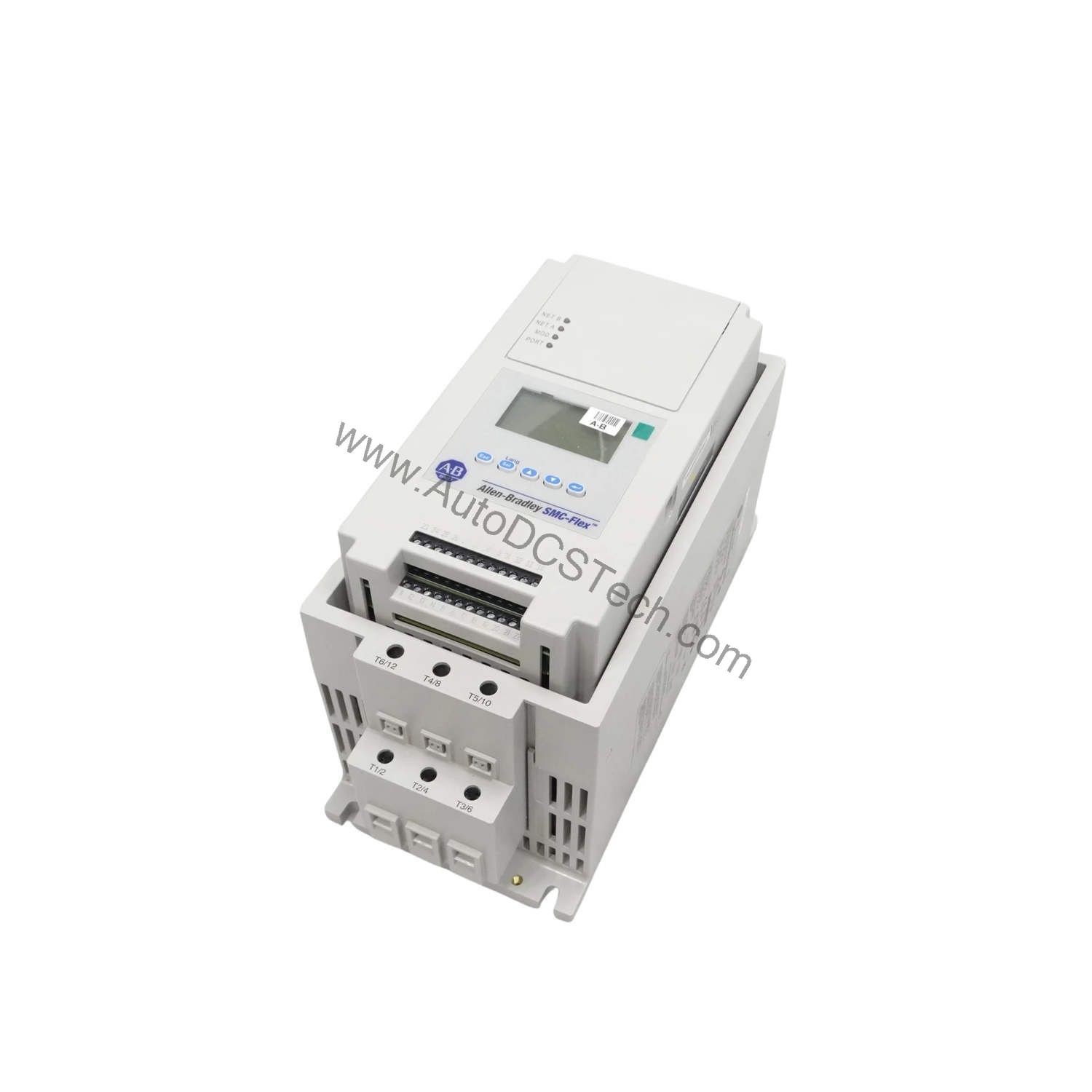

Allen-Bradley 150-F5NBDD SMC Flex Smart Motor Controller

Technical Specifications Breakdown

Key parameters for the 150-F5NBDD are listed below for quick reference:

Smart Motor Control for Demanding Applications

The Allen-Bradley 150-F5NBDD SMC Flex Smart Motor Controller is a versatile soft starter designed to optimize motor performance and reduce mechanical stress. Its integrated display and programmable auxiliary contacts simplify setup and monitoring.

Industry Applications

Typical uses include conveyors, pumps, fans, and compressors. The built-in SMB smart motor braking control provides rapid stopping without extra hardware, reducing wear and improving safety. The adjustable braking current from 0 to 400% of motor full-load current allows fine-tuning for specific load inertia.

Installation & Setup Guidance

Mount the open-type controller in a clean, dry enclosure with adequate ventilation. Ensure the ambient temperature stays within -5 to 50 °C. Use the specified cable sizes for power terminals: lower line/load side 0.8...2.5 mm² (18...14 AWG), upper line side 2.5...95 mm² (14...3 AWG), and upper load side 2.5...50 mm² (14...1 AWG). Tighten power terminals to 14.7 Nm (130 in-lb). Connect control voltage per the 100...240V AC rating, and configure trip classes (10, 15, 20, or 30) via the integrated display.

Maintenance & Reliability

Periodically inspect the heatsink and fan for dust buildup, as the unit relies on forced air cooling (heatsink fan rating 20VA). Verify the RC snubber network and metal oxide varistors (optional) remain intact for transient protection. The IP20 protection rating requires the controller to be housed in a suitable cabinet to prevent electrical shock. Check auxiliary contact operation and PTC sensor chain resistance (max 1500 Ω) during routine maintenance.

Selection Guide & Purchasing Advice

When selecting the 150-F5NBDD, verify motor full-load current and connection type (line or delta). The controller supports motors up to 3 Hp line connected or 7.5 Hp delta connected at 575V AC. For applications requiring fast stopping, the optional SMB braking feature is invaluable. AutoDCSTech stocks this unit and can confirm current lifecycle status and availability before ordering.

Troubleshooting & Common Issues

If the controller fails to start, check the control voltage (100...240V AC) and input ON-state voltage (min 85V AC). For PTC sensor faults, measure resistance between terminals; the short circuit trip resistance is 25 Ω ± 10 Ω, and response resistance is 3400 Ω ± 150 Ω. Overload trip current is set at 117% of motor FLC—verify motor data if nuisance tripping occurs. Ensure the heatsink fan is operational and the ambient temperature is within limits.
