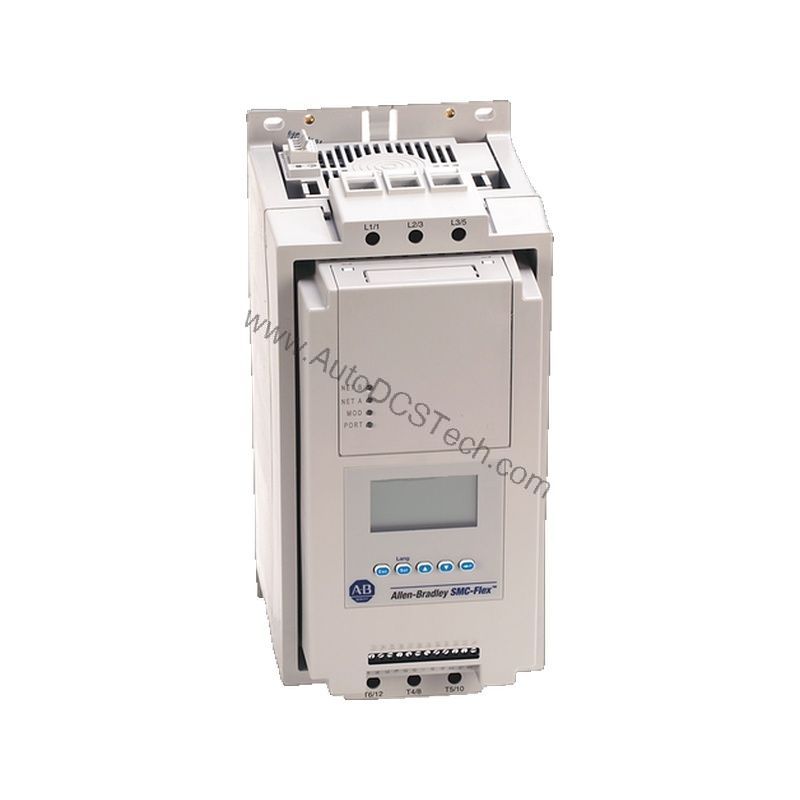

Allen-Bradley 150-F625NBED SMC Flex Smart Motor Controller 625A

Technical Specifications Breakdown

Key parameters for the 150-F625NBED are listed below for quick reference:

Industry Applications That Maximize ROI

Pump and Fan Control

By leveraging the SMC Flex's soft start capabilities and adjustable braking current (0...400% of motor FLC), users reduce mechanical stress on pumps and fans, extending equipment life and lowering replacement costs. The 208 A overload current for line-connected devices ensures efficient operation under varying loads.

Conveyor Systems

For material handling, the controller's trip classes (10, 15, 20, 30) allow precise protection matching, preventing nuisance trips that halt production. The 625 A rating supports high-torque conveyors, while the internal bypass reduces heat dissipation and energy losses.

Compressor Management

With delta-connected motor power up to 900 Hp @ 575V AC, this controller optimizes compressor starts, cutting peak demand charges. The 283 A delta overload current and DV/DT protection (RC snubber network) safeguard against voltage spikes, reducing unplanned maintenance.

Installation and Setup Guidance

Mount the 150-F625NBED in a clean, ventilated enclosure (IP00 open device per IEC). Ensure the control voltage (100...120V AC) is stable and within ±10% of nominal. Use the provided power terminal markings (NEMA, CENELEC EN50 012) for line/load connections—two 13.5 mm holes per power pole accommodate standard lugs. For auxiliary contacts, configure the programmable NO/NC contacts (19/20, 29/30, 31/32, 33/34) per application needs. Verify the short-circuit protection device (standard fuse, circuit breaker, or high capacity time delay Class CC/J/L) matches the 74kA available fault current at 600V.

Maintenance and Reliability

Inspect the heatsink hockey puck thyristor modular design periodically for dust buildup, ensuring airflow for heat dissipation (steady state heat dissipation: 446 W). Check the control module transformer rating (751 VA, recommended 800 VA) and fan supply (150VA @ 110/120V AC). Operate within -5 to 50 °C and 5...95% noncondensing humidity to prevent condensation. The 4 G shock and 1.0 G peak vibration tolerance (Opsal) supports reliable operation in industrial environments.

Cost-Efficient Motor Control with the Allen-Bradley 150-F625NBED

The Allen-Bradley 150-F625NBED SMC Flex Smart Motor Controller delivers robust performance for demanding industrial applications, combining a 625 A rating with 500 Hp at 460V AC. This controller reduces operational costs by integrating advanced features like brake control and adjustable trip classes, minimizing downtime and energy waste. Its 100...120V AC control voltage simplifies integration into existing systems, while the built-in display enables real-time monitoring for proactive maintenance.

Compatibility and Integration

The controller integrates with PTC sensors (up to 6, with response time 800 ms) and tachometer input (0...5V DC, 4.5V DC = 100% speed). Its EMC radiated emission Class A and surge transient immunity per EN/IEC 60947-4-2 ensure compliance in mixed installations. The 150-F625NBED works with both line-connected (208...625 A @ 600/Y/690V AC) and delta-connected motors (283...850A @ 500/575V AC), offering flexibility across voltage systems.

Selection Guide and Purchasing Advice

When selecting this controller, match the 625 A rating and 500 Hp at 460V AC to your motor full-load current. For applications requiring fast stops, the optional SMB smart motor braking control (adjustable 0...400% braking current) adds value without extra hardware. AutoDCSTech stocks the 150-F625NBED with verified specifications, ensuring compatibility. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
