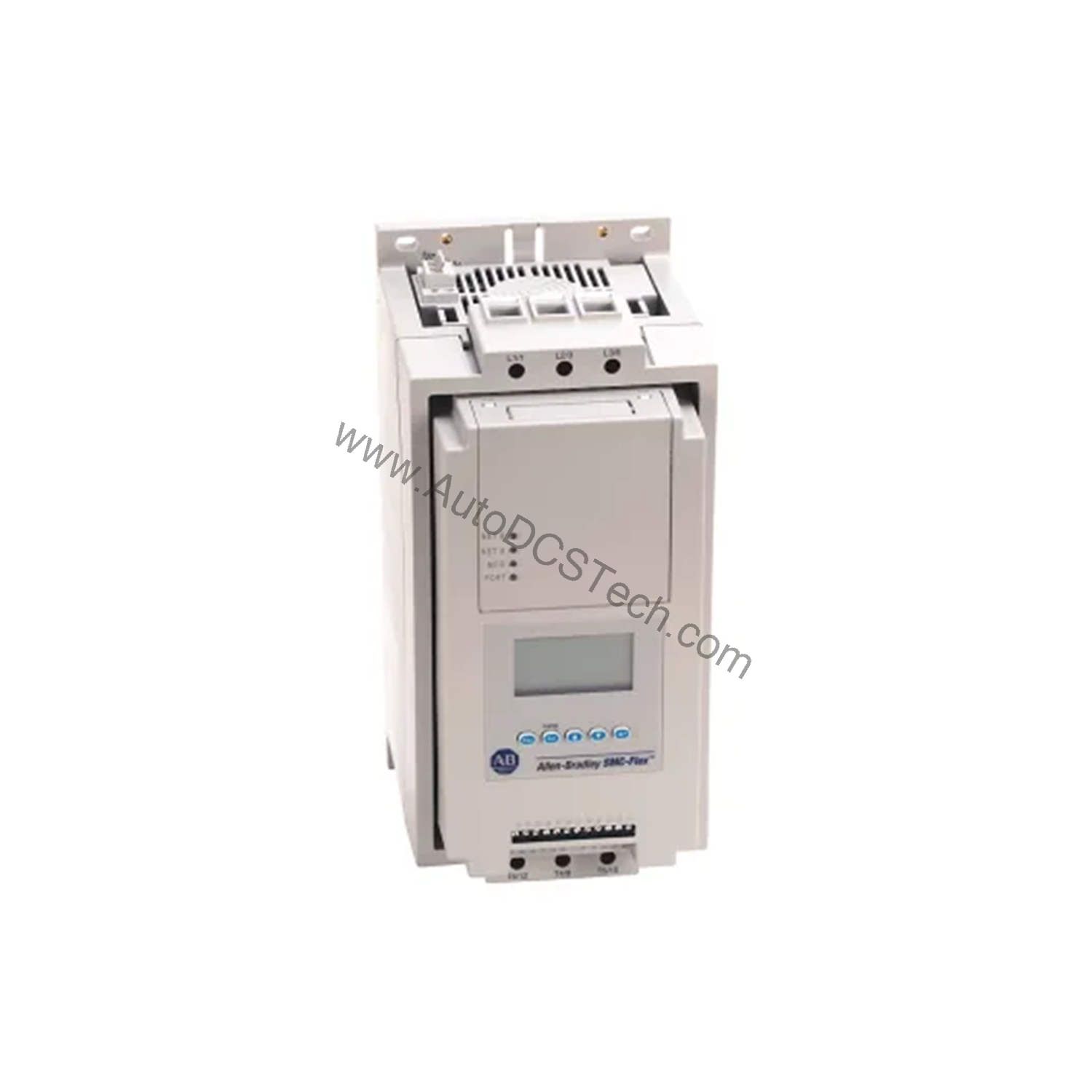

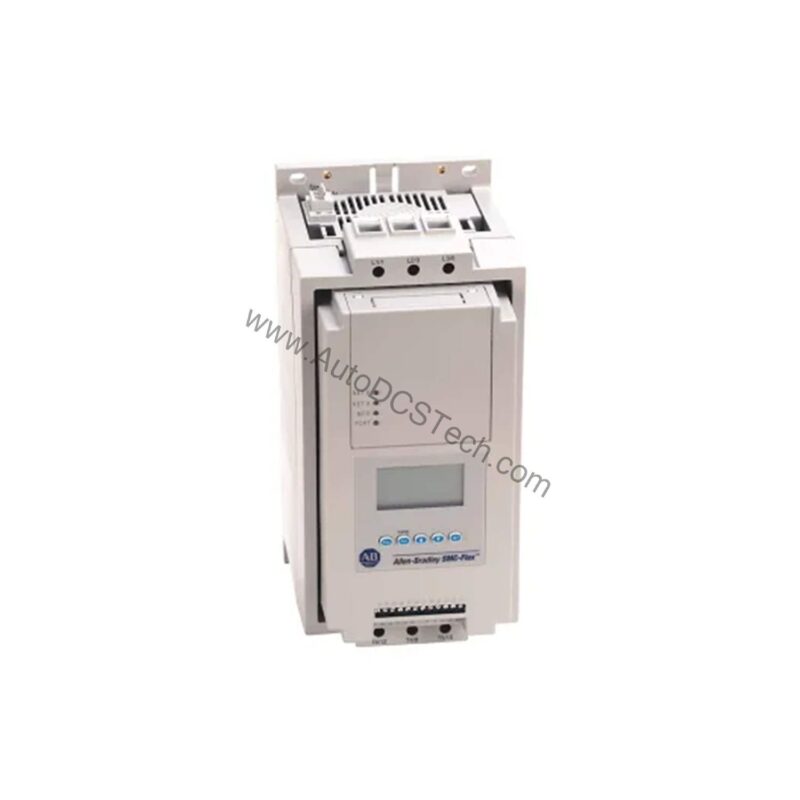

Allen-Bradley 150-F970NBA SMC-Flex Smart Motor Controller 970A

Technical Specifications Breakdown

Key parameters for the 150-F970NBA are listed below for quick reference:

Industrial Applications and Operational Benefits

Its integral bypass feature minimizes heat generation, improving energy efficiency and component lifespan. The 150-F970NBA supports line or delta connected motors, making it versatile for various setups.

Installation and Setup Guidance

Mount the open enclosure in a clean, dry cabinet with adequate ventilation. Connect the 200-460V AC, 3-phase input line and the 230/240V AC control voltage as per the wiring diagram. Use the multilingual LCD display to configure operating modes like soft start (adjustable 0-30 seconds) and soft stop (adjustable 0-120 seconds). Ensure proper grounding to avoid electrical noise.

Maintenance and Reliability Tips

Inspect the controller periodically for dust accumulation and loose connections. The built-in current and voltage protection mechanisms aid in troubleshooting. The metal oxide varistor (220 Joules) provides transient protection, but verify surge suppression annually. Keep the IP00-rated unit free from moisture and debris.

Selection Guide and Purchasing Advice

When selecting the 150-F970NBA, confirm your motor's horsepower and voltage requirements. For reliable supply and expert support, contact AutoDCSTech. Our team can verify availability and lifecycle status before ordering.

Troubleshooting and Common Issues

If the motor fails to start, check the control voltage and input line connections. The LCD display shows fault codes for quick diagnosis. For persistent issues, inspect the bypass contactor and transient protection components. Always follow safety protocols when servicing.
