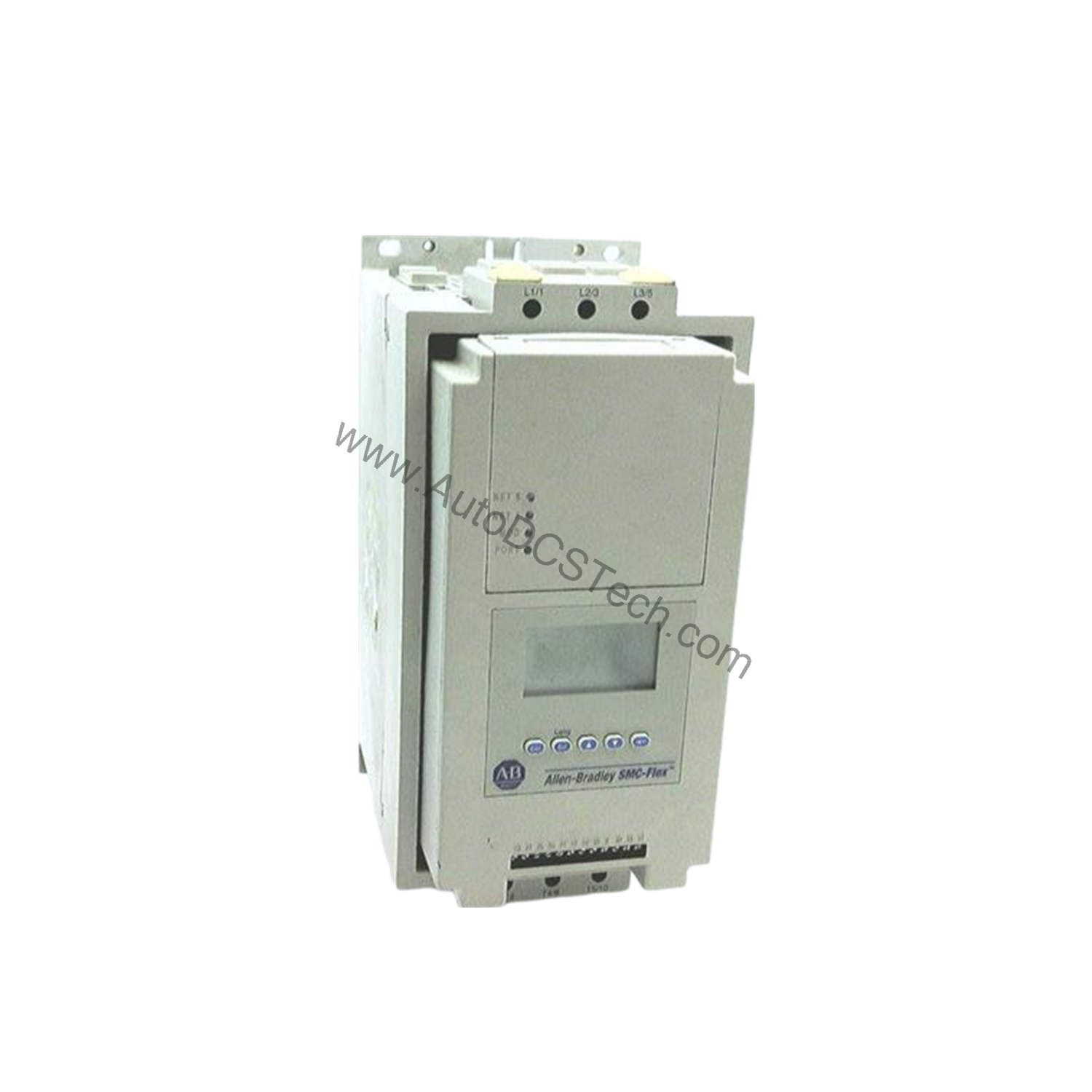

Allen-Bradley 150-F85NCR SMC-Flex Smart Motor Controller 85A

Technical Specifications Breakdown

Key parameters for the 150-F85NCR are listed below for quick reference:

Industrial Applications and Operational ROI

This smart motor controller is ideally suited for applications where controlled acceleration and deceleration reduce wear on mechanical components. Common uses include compressors, pumps, fans, and band-saws. In band-saw operations, the integrated motor braking option stops the motor in as little as 2 minutes versus the standard 15 minutes, reducing torque shock and improving safety. This capability minimizes downtime and maintenance costs, delivering a clear return on investment by protecting both the motor and driven equipment.

Installation and Setup Guidance

Install the controller in a location with ambient air temperature between 0-50°C and relative humidity up to 95%. Ensure altitude does not exceed 1000 meters to avoid derating. The open enclosure requires mounting in a suitable cabinet with proper ventilation. Connect the 3-phase input line voltage (200-575V AC) and the 24V AC/DC control voltage as specified. Follow all local electrical codes and manufacturer guidelines for wiring and configuration.

Maintenance and Reliability

Periodically inspect the controller for signs of overheating or contamination. Keep the enclosure clean and ensure airflow is unobstructed. The built-in protective heat thermistors will shut down the controller if internal temperatures exceed safe limits, preventing damage. For altitudes above 1000 meters, consult derating guidelines. Regular inspection of connections and environmental conditions will ensure long-term reliability.

SMC-Flex Smart Motor Control for Modern Industry

Industrial motor control has evolved from simple across-the-line starting to intelligent, adaptive systems that protect both machinery and processes. The Allen-Bradley 150-F85NCR SMC-Flex smart motor controller represents this evolution, offering precise soft starting and stopping for demanding applications. This solid-state controller, part of the SMC-Flex product line, is engineered to reduce mechanical stress and electrical disturbances, extending equipment life and improving operational efficiency.

Compatibility and Integration

It is compatible with standard motor control circuits using 24V AC/DC control signals. As part of the SMC-Flex series, it offers advanced diagnostic and communication capabilities for monitoring motor parameters and status. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
