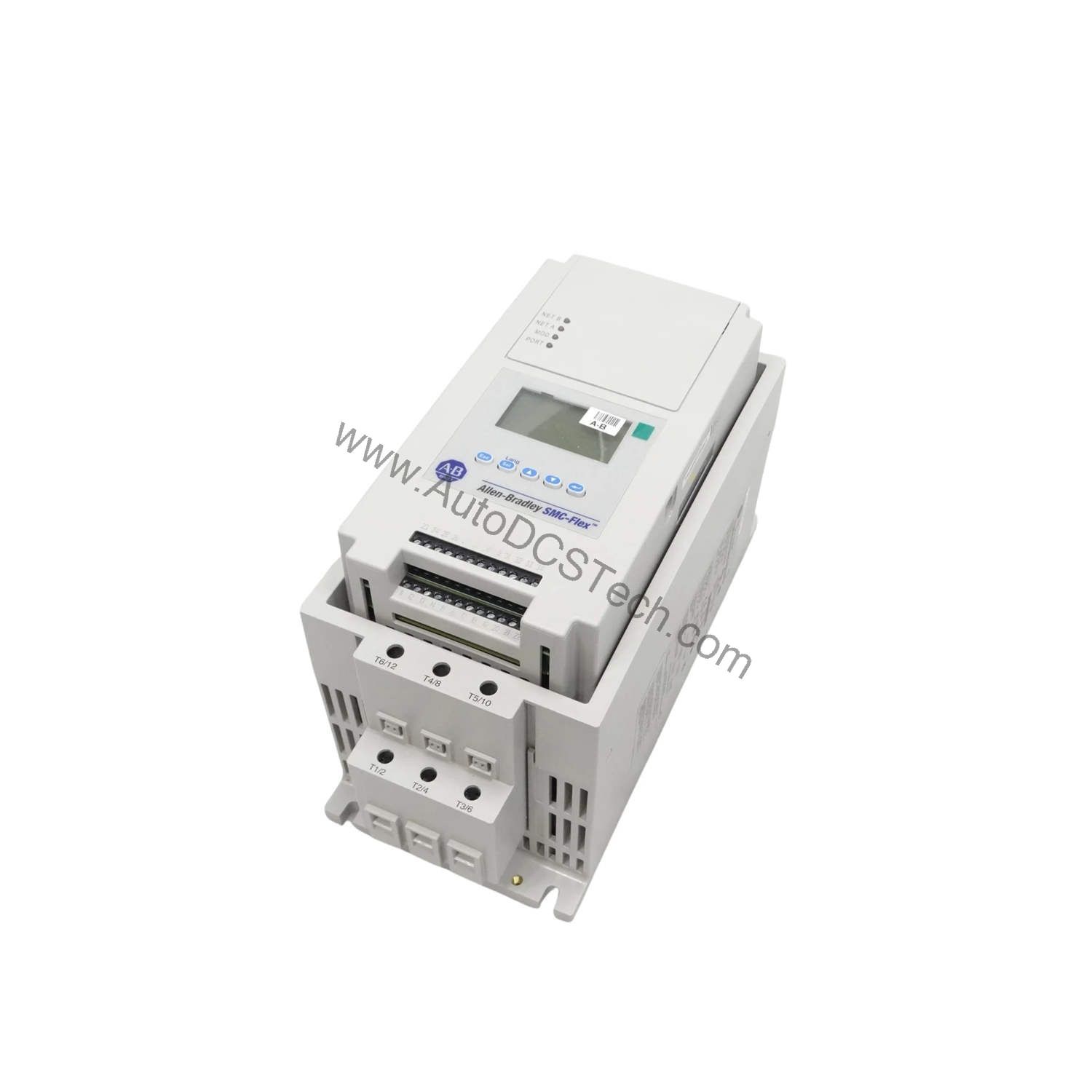

Allen-Bradley 150-F5NBDB SMC-Flex Smart Motor Controller, 5A, 3 HP

Technical Specifications Breakdown

Key parameters for the 150-F5NBDB are listed below for quick reference:

Industry Applications

With a current rating of 5 Amps and 3 Horsepower output at 460 Volts AC, it handles light-duty starting requirements efficiently. By upgrading from older electromechanical systems, operators gain smoother acceleration and reduced mechanical stress on driven equipment.

Installation & Setup Guidance

Given its open construction type, the 150-F5NBDB must always be installed inside a protective enclosure to guard against dust, moisture, and accidental contact. The controller features a 2-line, 16-character retro illuminated liquid crystal display (LCD) screen and a simple programming keypad for adjusting parameters. External control is supported within a voltage range from 100 to 240 Volts AC, allowing compatibility with both 110 Volts AC and 220 Volts AC rated signals. For advanced integration, an optional communication module from the Allen-Bradley Bulletin 1203 product line enables starting and stopping via a programmable logic controller.

Maintenance & Reliability

Periodic inspection of the enclosure and connections is recommended to ensure reliable operation. Since the controller uses solid-state components, it has no moving parts that wear out like electromechanical contactors. Verify that the line voltage (200 - 460 V AC) and frequency (50/60 Hz) match the supply.

Upgrade Your Motor Control with the Allen-Bradley 150-F5NBDB

The Allen-Bradley 150-F5NBDB Smart Motor Controller is a solid-state motor controller or soft starter from the SMC-Flex series, designed for controlling the starting and stopping of small motors in industrial or commercial settings. It provides the motor circuit activation function of a normal contactor while adding current limiting and energy-saving capabilities unavailable in older devices.

Compatibility & Integration

The SMC-Flex series is designed for three-phase loads only. The optional Bulletin 1203 communication module allows integration with plant control systems, providing a higher level of automation and monitoring.

Selection Guide & Purchasing Advice

When selecting a soft starter, match the current and horsepower ratings to your motor. The 150-F5NBDB is rated at 5A and 3 HP, suitable for small motors. Please verify current lifecycle status and availability with AutoDCSTech before ordering. AutoDCSTech offers genuine Allen-Bradley parts with expert support.

Troubleshooting & Common Issues

If the controller fails to start, check the control voltage (100-240 V AC) and ensure the line voltage is within 200-460 V AC. Verify that the three-phase load is properly connected. For display issues, inspect the LCD screen and keypad connections. Always consult the product manual for detailed diagnostics.
