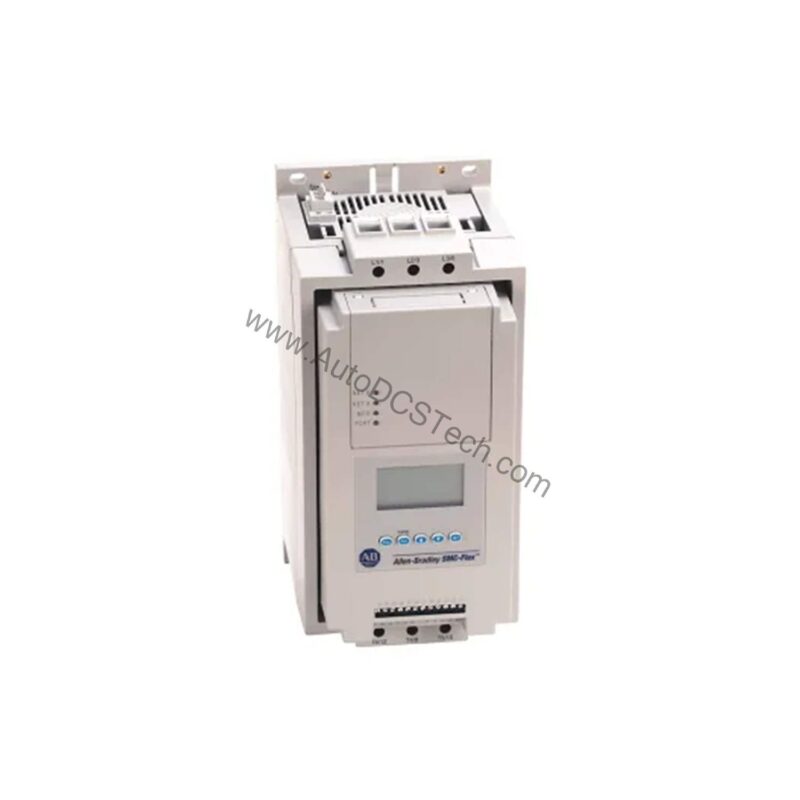

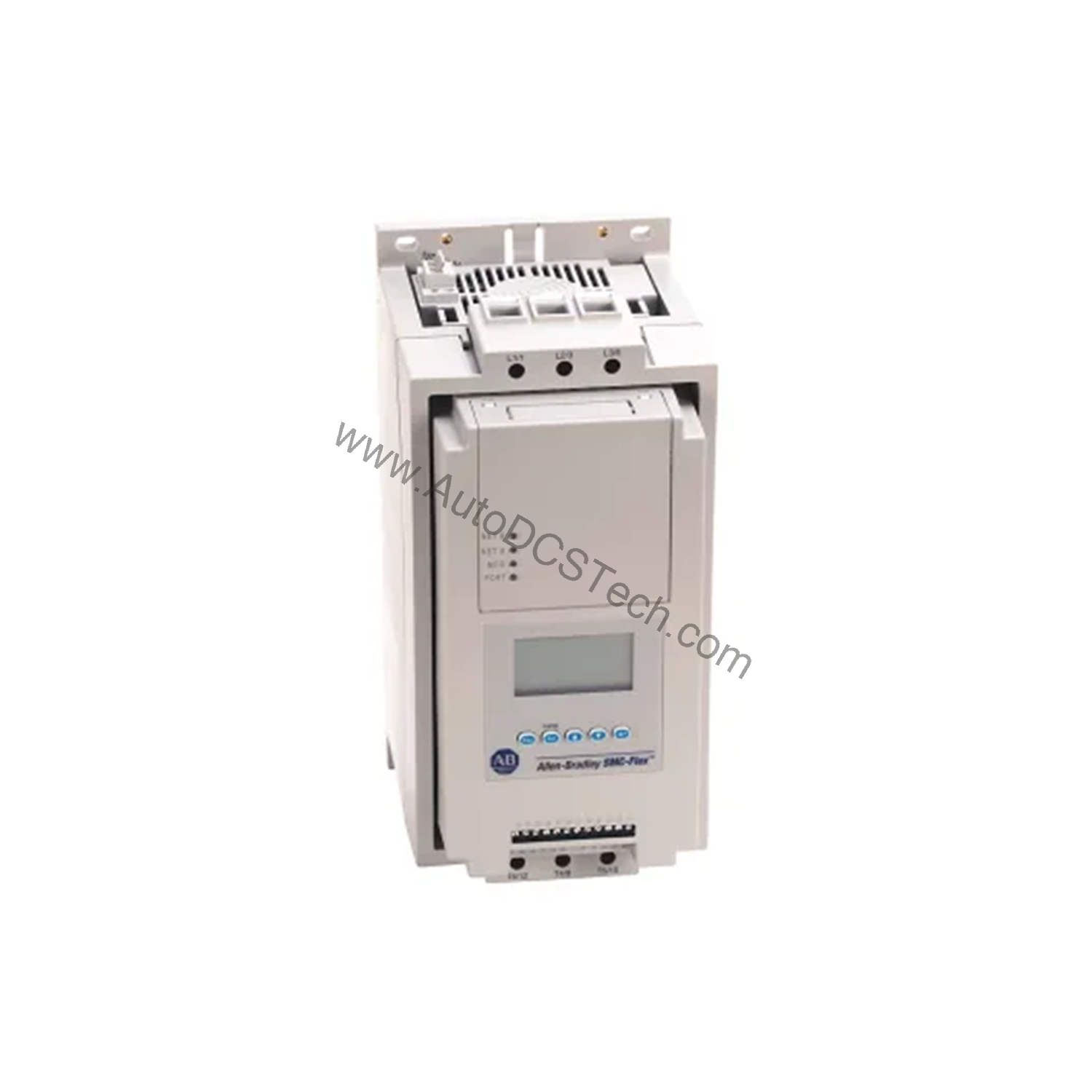

Allen-Bradley 150-F970NBED SMC Flex Smart Motor Controller 970A

Optimizing Motor Control with the Allen-Bradley 150-F970NBED SMC Flex

Industrial motor starting can cause voltage sags, mechanical stress, and equipment wear. This soft starter is rated for 970 A and delivers up to 800 Hp at 460V AC, making it suitable for high-power applications such as pumps, conveyors, and compressors.

Technical Specifications Breakdown

Key parameters for the 150-F970NBED are listed below for quick reference:

Industry Applications and Failure Mode Prevention

Large motors often experience high inrush currents during direct-on-line starting, leading to voltage dips and mechanical shock. The 150-F970NBED mitigates this by using a soft starter with adjustable trip classes (10, 15, 20, and 30) and overload protection set at 117% of motor FLC. For applications requiring rapid stopping, the optional SMB smart motor braking control provides adjustable braking current from 0...400% of full-load current, reducing downtime without additional equipment.

Installation and Setup Guidance

When installing the 150-F970NBED, ensure the control voltage supply matches the 100...120V AC requirement. The power circuit operates at 200...480V AC with a tolerance of -15% to +10%. Use the provided short-circuit protection device list, which includes standard fuse, circuit breaker, and high capacity time delay class CC/J/L options. For inside delta connected motors, the maximum available fault current is 85kA @ 600V with time delay Class J or L fuses. The device is open type (IP00), so install it in a suitable enclosure to protect against electrical shock.

Maintenance and Reliability

To maintain reliable operation, periodically inspect the heatsink hockey puck thyristor modular design for dust buildup. The steady state heat dissipation is 812 W, so ensure adequate ventilation. The operating temperature range is -5 to 50 °C (open device), and humidity should remain between 5...95% (noncondensing). The unit is designed for altitudes up to 2000 m and pollution degree 2 environments.

Compatibility and Integration

The controller includes integrated motor overload protection and supports PTC thermistor inputs for motor thermal protection. It features auxiliary contacts (19/20, 29/30, 31/32, 33/34) with programmable NO/NC configuration, rated for 3A @ 120V AC and 1.5A @ 240V AC. The control circuit uses electromagnetic relay technology, and the tachometer input accepts 0...5V DC (4.5V DC = 100% speed).

Selection Guide and Purchasing Advice

When selecting the 150-F970NBED, verify that your motor's full-load current falls within the line connected range of 323...970 A or delta connected range of 400...1200A. The unit weighs 224 kg and measures 596.9 mm wide, 346.2 mm deep, and 1041.1 mm high. Our team can help you confirm compatibility and provide a competitive quote.
