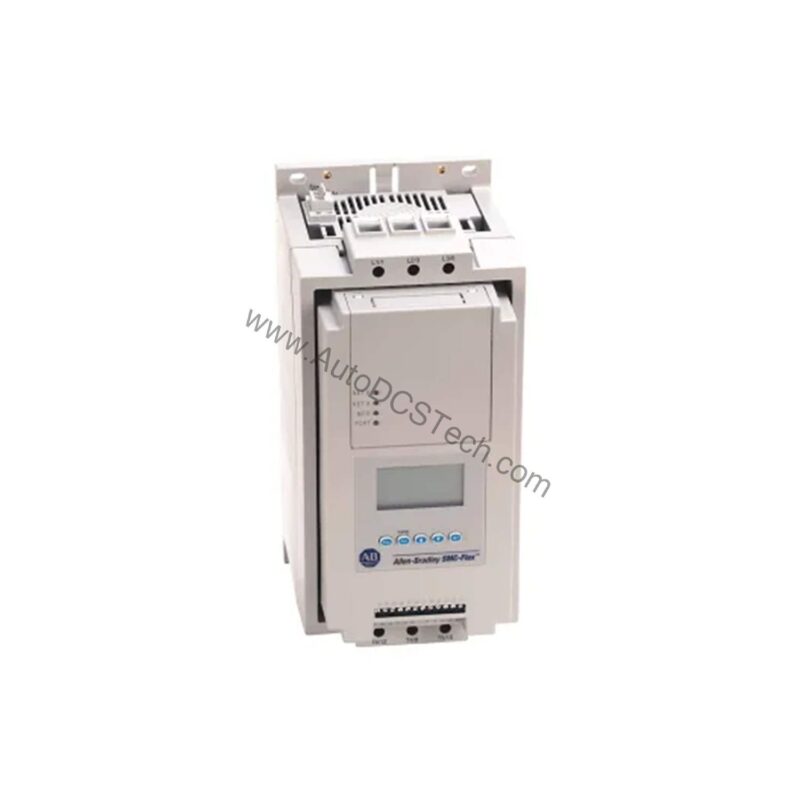

Allen-Bradley 150-F970NZA SMC-Flex Solid State Controller 970A

Cost-Efficient Motor Control with the Allen-Bradley 150-F970NZA

Industrial facilities face constant pressure to reduce energy costs and minimize downtime. The Allen-Bradley 150-F970NZA SMC-Flex solid state controller directly addresses these challenges by providing precise motor starting and stopping, which lowers peak demand charges and extends equipment life.

Technical Specifications Breakdown

Key parameters for the 150-F970NZA are listed below for quick reference:

Industry Applications and ROI

This controller is designed for large three-phase cage induction motors and Wye-Delta 6 lead motors. Common applications include pumps, fans, compressors, and conveyors where soft starting reduces mechanical shock and electrical stress. By limiting inrush current, the 150-F970NZA lowers peak demand charges—a direct operational cost saving. The built-in electronic motor overload protection prevents costly motor burnouts, while the Run Bypass feature improves energy efficiency during steady-state operation.

Installation and Setup Guidance

Mount the open enclosure in a clean, dry electrical cabinet with adequate ventilation. Verify that the input line voltage matches the 230-690V AC, 3-phase supply. The control voltage must be 230/240V AC for units in the 625-1250 A range. Use the programmable keyboard and LCD display to configure one of seven start modes: soft start, selectable kick start, current limit start, dual ramp start, full voltage start, soft stop, or linear speed acceleration. For drive operation, select start and stop motor control, accu stop braking control, or slow speed with braking as needed.

Maintenance and Reliability

Periodically inspect the enclosure for dust and debris, as the open design requires a clean environment. Verify that all power connections remain tight. The controller provides metering for 3-phase current, power factor, 3-phase voltage, elapsed time, and power in kW or MWh—use these readings to monitor motor health and optimize energy usage. The motor thermal capacity feature allows operators to track thermal usage before a trip occurs, reducing unplanned downtime.

Compatibility and Integration

The 150-F970NZA integrates with standard three-phase induction motors and Wye-Delta 6 lead configurations. It includes four programmable auxiliary contacts and CT on each phase for flexible control system integration. The LCD display and programmable keyboard simplify setup without additional software.

Selection Guide and Purchasing Advice

When selecting a solid state controller, match the controller rating (970 A, 800 Hp at 460V AC) to your motor full-load current. The wide input voltage range (230-690V AC) accommodates various global power systems. Please verify current lifecycle status and availability with AutoDCSTech before ordering. AutoDCSTech offers this unit along with expert support to ensure you select the right component for your application.
