Allen-Bradley 1746-NI4 SLC 500 Analog I/O Module – 4-Channel Input

Technical Specifications Breakdown

Key parameters for the 1746-NI4 are listed below for quick reference:

Industry Applications

In a chemical plant, it can read 4-20 mA signals from pressure transmitters to maintain safe operating conditions. In a manufacturing line, it monitors voltage outputs from sensors to control motor speeds. The 16-bit resolution ensures accurate data for closed-loop control, reducing waste and improving efficiency.

Installation & Setup Guidance

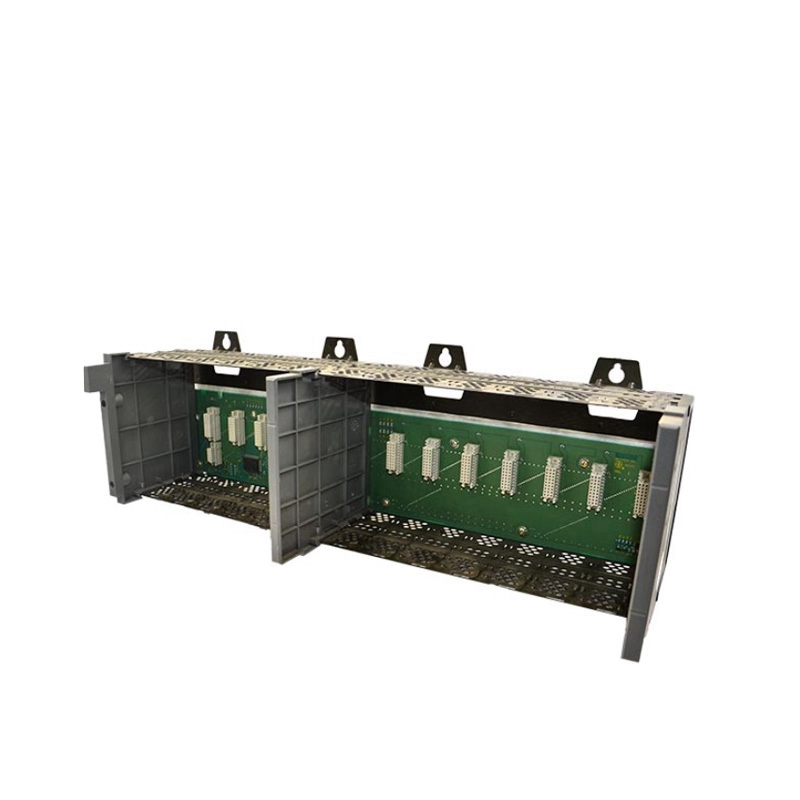

Mount the 1746-NI4 in any I/O slot of the SLC 500 chassis except slot 0. Use the DIP switches on the circuit board to select voltage or current input per channel. Connect analog devices using standard cable lengths of 0.5, 1, 2.5, or 5.0 meters. Ensure the removable terminal block is securely fastened. Avoid connecting a voltage source to a channel configured for current input to prevent damage.

Maintenance & Reliability

Periodically inspect the module for dust or debris. Verify that all connections are tight and cables are undamaged. The module's LED indicators provide quick status checks for each channel. Regular monitoring of the diagnostic interrupt can help identify issues early, ensuring high system availability.

Compatibility & Integration

It uses Delta–Sigma Modulation for analog-to-digital conversion, with current input coding from -16,384 to +16,384 and voltage input coding from -32,768 to +32,767. The module supports scaling algorithms to display process variables in engineering units.

Selection Guide & Purchasing Advice

When selecting the 1746-NI4, verify compatibility with your existing SLC 500 system. AutoDCSTech offers this module with detailed specifications to ensure a perfect fit. Contact our team for lifecycle status and availability before ordering.

Troubleshooting & Common Issues

If a channel reads incorrectly, check the DIP switch setting for the correct input type. Verify that the analog source is within the -20 to +20 mA or -10 to +10V dc range. Use the diagnostic LED to identify faulty channels. If the module fails to communicate, inspect backplane connections and ensure proper power supply.
