Allen-Bradley 1766-L32AWA MicroLogix 1400 Controller Overview

Product Overview

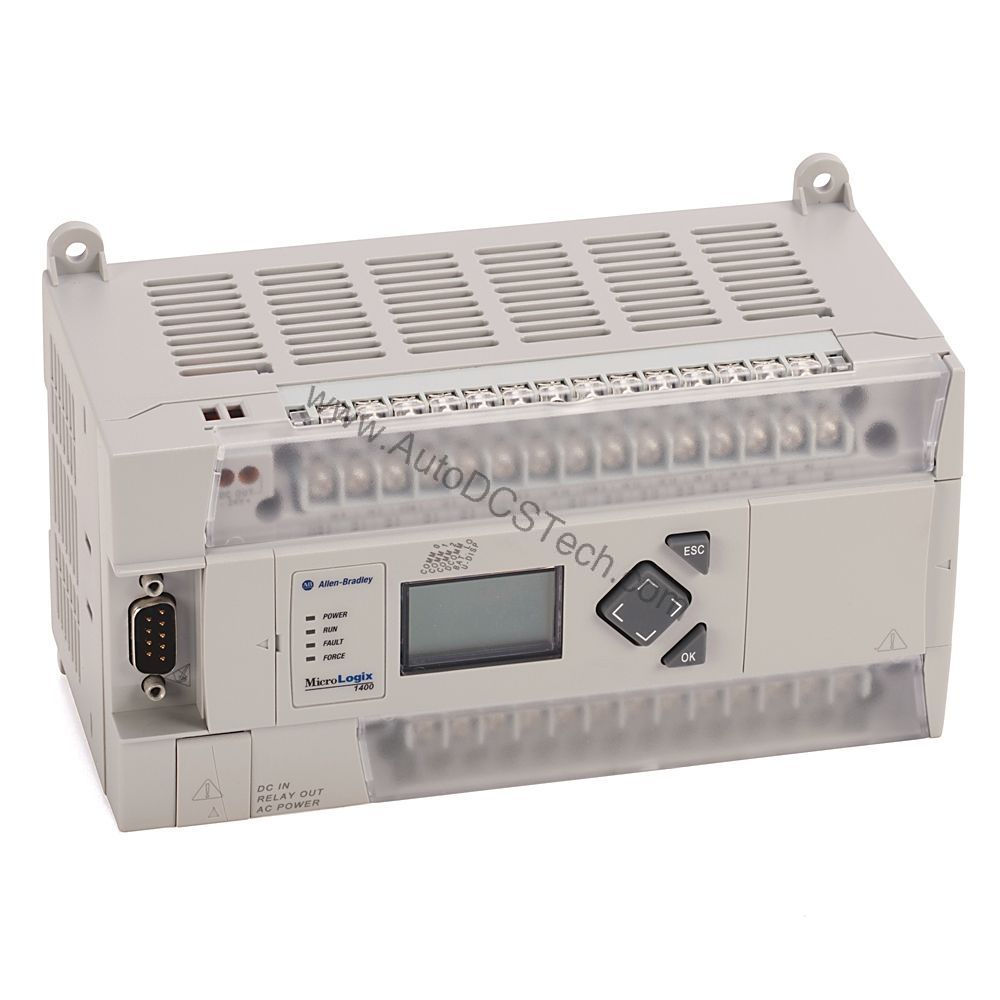

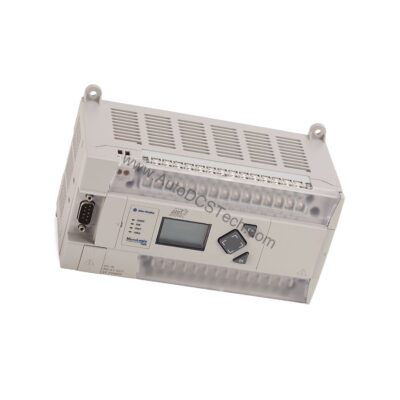

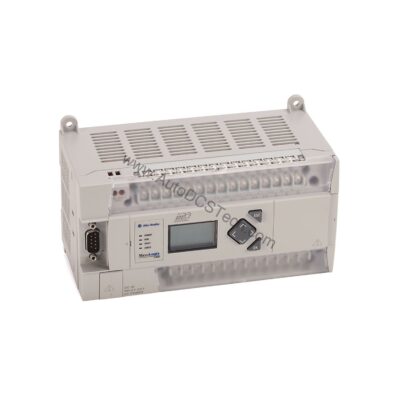

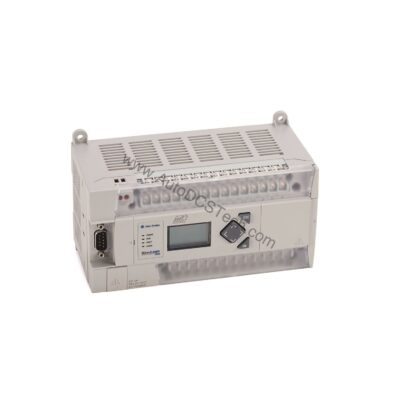

The Allen-Bradley 1766-L32AWA is a MicroLogix 1400 Controller from the Bulletin 1766 product family. This compact programmable logic controller is designed for small to mid-size industrial applications where reliable discrete control and flexible communication are essential. It integrates three communication ports: a combo RS232/RS485 port, an isolated RS232 port, and an Ethernet port. With embedded I/O channels consisting of twenty digital 120V AC inputs and twelve relay outputs, this controller simplifies wiring and reduces panel space. The built-in real-time clock enables time-based control sequences without an external time source.

Technical Specifications Breakdown

Key parameters for the 1766-L32AWA are listed below for quick reference:

Industry Applications

Material Handling Systems

In conveyor and sortation systems, the 1766-L32AWA handles discrete 120V AC input signals from sensors and limit switches while its relay outputs drive motor contactors and solenoid valves. The Ethernet port enables data exchange with a supervisory SCADA system for real-time throughput monitoring.

Packaging Machinery

For packaging lines that require time-stamped event logging, the built-in real-time clock provides accurate timestamps for production batches. The controller’s 20 KB memory supports moderate-sized ladder logic programs typical for wrapping, labeling, and cartoning machines.

Water & Wastewater Control

Remote pump stations benefit from the controller’s DNP3 protocol support over both serial and Ethernet links. The isolated RS232/RS485 port ensures reliable communication over longer distances, while the relay outputs directly control pump start/stop circuits.

Installation & Setup Guidance

Mount the controller horizontally on a properly grounded panel or DIN rail inside an enclosure. Use the supplied debris strip during installation to protect the electronics from dust and conductive debris; remove it after all panel work is complete. Connect the 120/240V AC power supply to the dedicated terminals, observing the operating frequency range of 47-63 Hz. For communication wiring, use shielded twisted-pair cables for RS-485 networks and standard Cat5e for Ethernet connections. The combo RS232/RS485 port (Channel 0) uses an 8-pin mini-DIN connector; the isolated RS232 port (Channel 2) uses a standard DB9. Configure the communication protocols via the RSLogix 500 programming software.

Maintenance & Reliability

Inspect the controller periodically for dust accumulation on the enclosure vents and ensure ambient conditions remain within Over Voltage Category II limits. Verify that all wiring connections are tight and that the Ethernet cable is securely latched. The battery-backed RAM retains the user program during power loss; replace the battery every 5 years or as indicated by the controller’s diagnostic LED. Do not expose the unit to conductive dust or moisture.

Compatibility & Integration

The 1766-L32AWA supports up to seven 1762 expansion I/O modules, allowing system scaling beyond the built-in 32 I/O points. Supported serial protocols include DF1, ASCII, MODBUS RTU, DNP3, and DH485. Ethernet protocols include Ethernet/IP, DNP3, and MODBUS TCP/IP. This broad protocol support enables integration with HMI panels, SCADA systems, and enterprise databases. The built-in web server and email capability facilitate remote monitoring and alarm notifications.

Selection Guide & Purchasing Advice

When selecting a MicroLogix 1400 controller, verify that the I/O count and communication requirements match your application. For systems requiring DC inputs or high-speed counting, consider the DC-input variants. AutoDCSTech stocks this controller and can advise on availability and lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If the controller fails to power up, check the input voltage at the power terminals (110 to 240 VAC) and verify the power supply inrush current limits: 25 A for 8 ms at 120V AC, 40 A for 4 ms at 240V AC. If communication fails, confirm that the correct protocol (DF1, MODBUS, etc.) is selected in the programming software and that cable pinouts match the port type. For Ethernet issues, verify the IP address configuration and cable integrity. If the real-time clock loses time, replace the internal battery. For persistent faults, consult the MicroLogix 1400 user manual.
