Reliability-Focused Overview

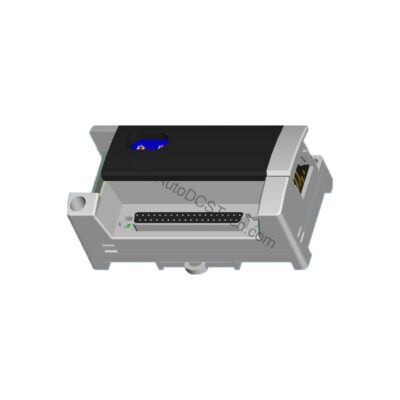

As a maintenance engineer, you need I/O modules that provide consistent performance and easy diagnostics. The Allen-Bradley 1790-0V16X is a 24V DC 16-point sinking output module designed for CompactBlock LDX base and expansion units. This module delivers 16 nonisolated sinking outputs with green status indicators for each channel, allowing quick visual confirmation of output states without additional tools. Its robust design minimizes downtime in demanding industrial environments.
Technical Specifications Breakdown
Key parameters for the 1790-0V16X are listed below for quick reference:
| Feature | Specification |
|---|---|
| Output Type | Discrete Sinking Outputs |
| Number of Channels | 16 Channels |
| On-State Voltage Range | 10V DC min, 24V DC nom, 28.8V DC max |
| On-State Current | 1 mA min per channel |
| Output Current Rating | 0.5 A max per output, 4.0 A max per common |
| Off-State Leakage | 0.5 mA max |
| Output Signal Delay | Off to On: 0.5 ms max, On to Off: 1.0 ms max |
| Indicators | 16 green status LEDs |
| Isolation | I/O to logic: photocoupler, 1250V AC rms |
| Field Power Supply | 24V DC nom, range 10…28.8V DC |
Industry Applications
The 16-point configuration with two commons per eight points simplifies wiring in grouped load applications. For example, in a bottling plant, you can use one common group for conveyor zone solenoids and the other for fill station actuators, reducing wiring errors and maintenance time.
Installation & Setup Guidance
Mount the 1790-0V16X onto a CompactBlock LDX base module using the 37-pin D-shell connector. For sinking outputs, wire Com 0 and Com 2 to field power positive (+) 24V DC, and wire Com 1 and Com 3 to field power negative (-) GND. Note that all Com 0 and Com 2 are internally connected, simplifying power distribution. Ensure field power is within 10…28.8V DC to avoid output damage. Use twisted-pair shielded cable for noisy environments.
Maintenance & Reliability
Periodically inspect the green status LEDs to verify output operation. Clean the 37-pin connector contacts with a dry cloth if oxidation is suspected. The module's photocoupler isolation protects logic circuits from field-side surges, enhancing long-term reliability. Avoid exceeding the 0.5A per output or 4.0A per common rating to prevent thermal stress.
Compatibility & Integration
The 1790-0V16X integrates with CompactBlock LDX base modules that provide DeviceNet power (24V DC nom, 11…28.8V DC range). It is compatible with Allen-Bradley controllers that support DeviceNet or remote I/O scanning. Verify your system's firmware revision for seamless integration.
Selection Guide & Purchasing Advice
When selecting this module, confirm your application requires 16 sinking outputs with 0.5A per channel and 24V DC field power. The 1790-0V16X is a reliable choice for new installations or as a direct replacement in existing CompactBlock LDX systems. AutoDCSTech stocks this module and can advise on lifecycle status. Please verify current availability and lifecycle status with AutoDCSTech before ordering.
Troubleshooting & Common Issues
If outputs fail to energize, check the green LED indicators: a dark LED suggests a blown fuse or no field power. Verify field power voltage at the common terminals (Com 0/2 positive, Com 1/3 negative). For intermittent operation, inspect the 37-pin connector for bent pins or corrosion. If all outputs are off, confirm the base module's DeviceNet power is present.
Availability & Condition at AutoDCSTech
| Part Number | 1790-0V16X |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
