Product Overview

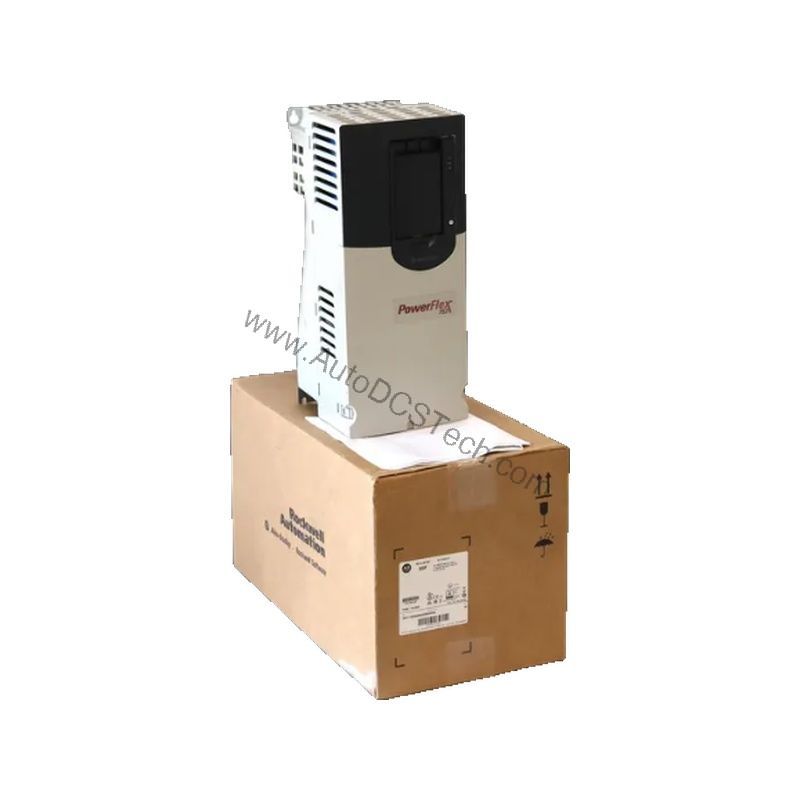

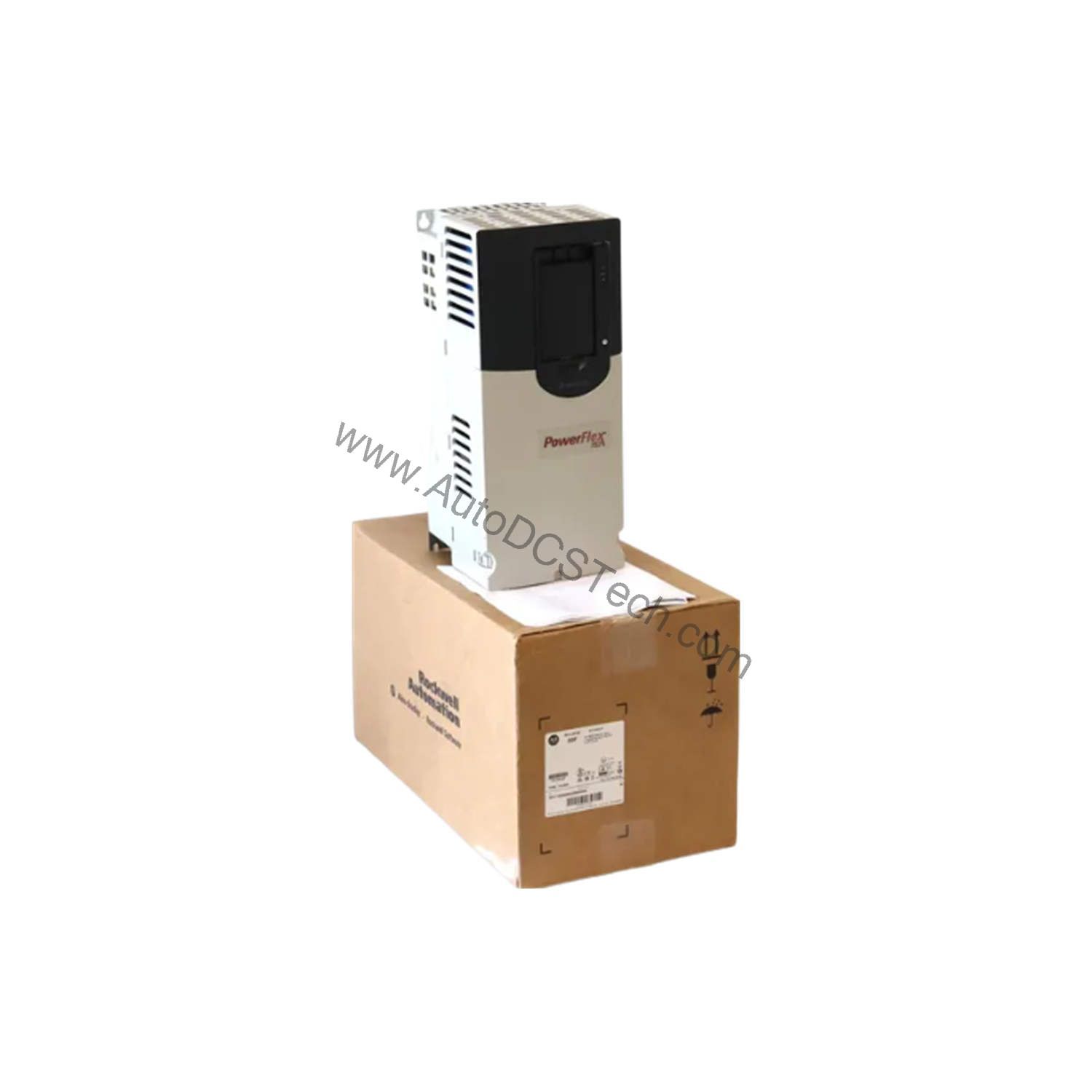

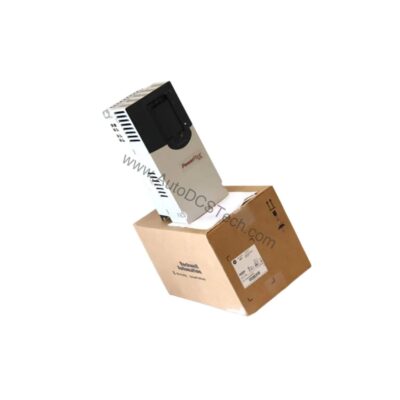

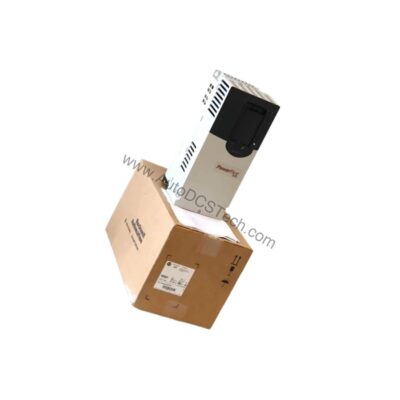

The Allen-Bradley 20F11NC037JA0NNNNN is a PowerFlex 753 AC Drive designed for precise motor control in demanding industrial environments. This unit operates at 400 VAC (3-phase) and delivers an output current of 37 Amps, with a heavy-duty output power of 15 kW. It features embedded I/O and an open-type enclosure, making it suitable for integration into control panels. With built-in dynamic braking and a forced air cooling system, this drive ensures reliable performance under varying loads.
Technical Specifications Breakdown
Key parameters for the 20F11NC037JA0NNNNN are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Product Type | AC Drive |
| Product Line | PowerFlex 753 |
| Voltage | 400 VAC (3-phase) |
| Output Current | 37 A |
| Heavy-Duty Output Power | 15 kW |
| Communication Port | 1 × RS-485 |
| Dynamic Braking | DB Transistor |
| Protection Rating | IP20 |
| Cooling Method | Forced Air, Air-cooled |
Industry Applications
This drive is well-suited for conveyor systems, pumps, and fans where precise speed control and reliable braking are essential. The 37A output and 15kW heavy-duty power allow it to handle moderate to heavy industrial loads. The built-in DB transistor enhances stopping capability, reducing wear on mechanical brakes in applications like material handling or packaging lines.
Installation & Setup Guidance
Mount the drive in a clean, dry indoor location with adequate clearance for airflow. Ensure the incoming 400 VAC three-phase supply matches the drive's voltage class. Connect the motor to the output terminals, observing proper phase rotation. The embedded I/O provides three digital inputs, two digital outputs, one analog input, and one analog output for basic control. Use the RS-485 port for network communication. The CM jumper is pre-installed for common-mode filtering.
Maintenance & Reliability
Periodically inspect the cooling fan and air filters to ensure unobstructed airflow. Keep the IP20 enclosure free from dust and moisture. Check terminal connections for tightness annually. The forced air cooling system helps maintain stable operating temperatures, extending the drive's service life.
Compatibility & Integration
The RS-485 communication port enables integration with PLCs and SCADA systems using Modbus RTU or DF1 protocols. The drive is compatible with Allen-Bradley ControlLogix and CompactLogix controllers for seamless data exchange. The analog and digital I/O allow direct connection to sensors and actuators.
Selection Guide & Purchasing Advice
When selecting the 20F11NC037JA0NNNNN, verify that your motor's full-load current does not exceed 37A and that the supply voltage is 400 VAC three-phase. Contact AutoDCSTech for current lifecycle status and availability before ordering. AutoDCSTech offers genuine Allen-Bradley parts with expert support.
Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | 20F11NC037JA0NNNNN |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
