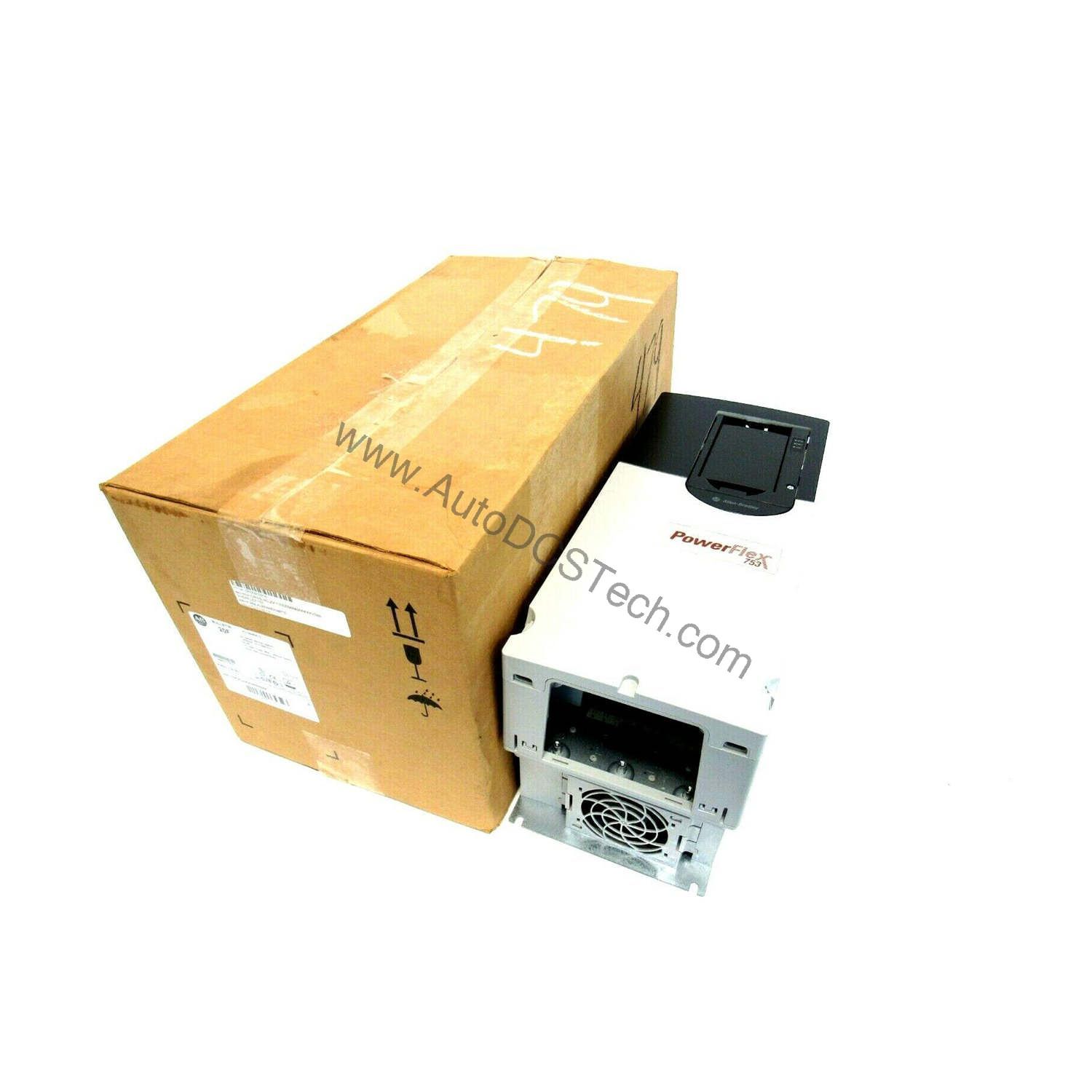

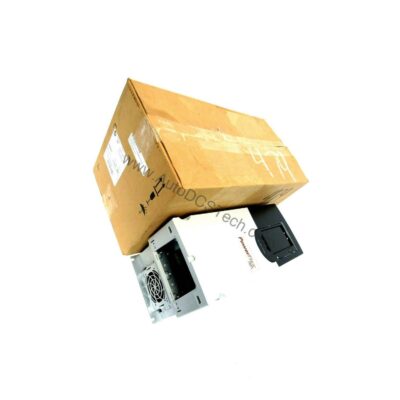

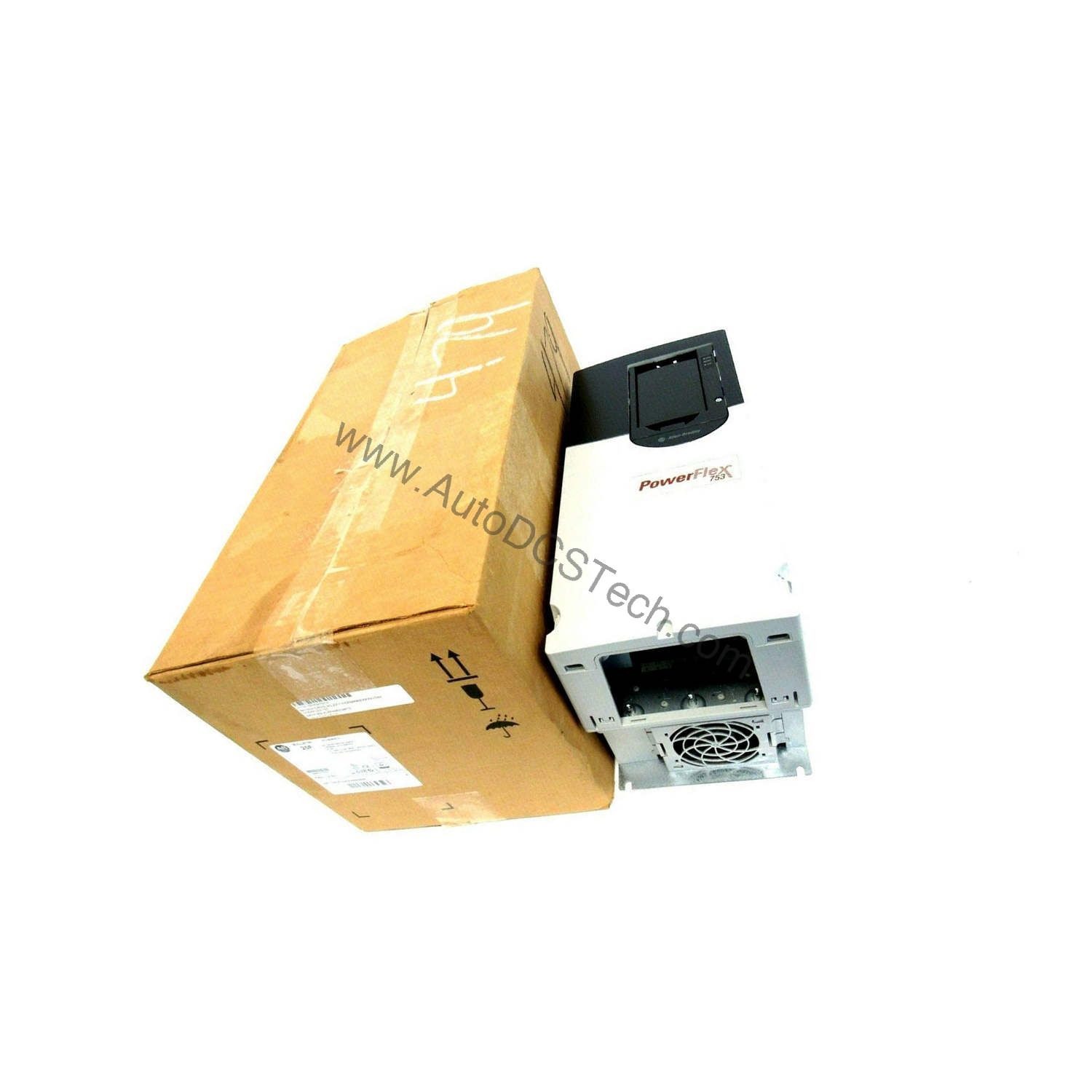

Allen-Bradley 20F11ND034AA0NNNNN PowerFlex 753 Adjustable Frequency Drive

Technical Specifications Breakdown

Key parameters for the 20F11ND034AA0NNNNN are listed below for quick reference:

Real-World Applications for Enhanced Productivity

Pump and Fan Control

In HVAC or water treatment plants, variable torque loads benefit from the drive's 110% overload capacity for 60 seconds, handling startup surges without nuisance tripping. The three-phase design ensures balanced load distribution, reducing mechanical stress on motors.

Conveyor Systems

For material handling, the heavy-duty rating of 27 A (15 kW / 20 HP) provides reliable torque at low speeds. The internal brake transistor enables controlled deceleration, preventing product damage during stops.

Machine Tool Spindles

Precision machining requires consistent speed regulation. The integrated EMC filtering minimizes electrical noise, protecting sensitive CNC controllers and improving overall process quality.

Installation and Setup Guidance

Mount the open-type drive in a clean, dry enclosure with adequate airflow. The air-cooled design requires unobstructed ventilation; maintain clearance per manufacturer guidelines. Connect three-phase power to the input terminals, ensuring voltage matches 480 VAC or 650 VDC as per site conditions. The common mode jumper is removed by default, so verify grounding configuration for your application. Use shielded motor cables to reduce electromagnetic interference.

Maintenance and Reliability

Periodically inspect the drive for dust accumulation on heatsinks and fans. Ambient temperature should stay within 0°C to 50°C to prevent thermal derating. Check all power connections for tightness annually. The IP20/IP00 enclosure offers basic protection against solid objects; avoid exposure to moisture or conductive dust.

Optimize Motor Control with the PowerFlex 753 Drive

Industrial facilities often face challenges with motor speed regulation, energy efficiency, and equipment longevity. The Allen-Bradley 20F11ND034AA0NNNNN adjustable frequency drive from the PowerFlex 753 series provides a robust solution for variable speed control in demanding environments. This unit supports input voltages up to 480 VAC or 650 VDC, offering flexibility across different electrical infrastructures.

Compatibility and Integration

The internal brake transistor supports dynamic braking resistors for rapid stopping. For system expansion, verify that the 20F11ND034AA0NNNNN matches your motor's voltage and current ratings.

Selection Guide and Purchasing Advice

When selecting a drive, match the output current to your motor's full-load amps. For normal duty cycles, the 34 A rating covers most 25 HP applications; for constant torque loads, use the 27 A heavy-duty rating. AutoDCSTech stocks this unit and can advise on lifecycle status and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
