Reliable Signal Integrity with the Bently Nevada 84661-35 Interconnect Cable

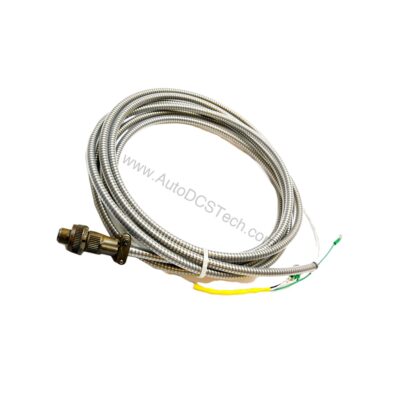

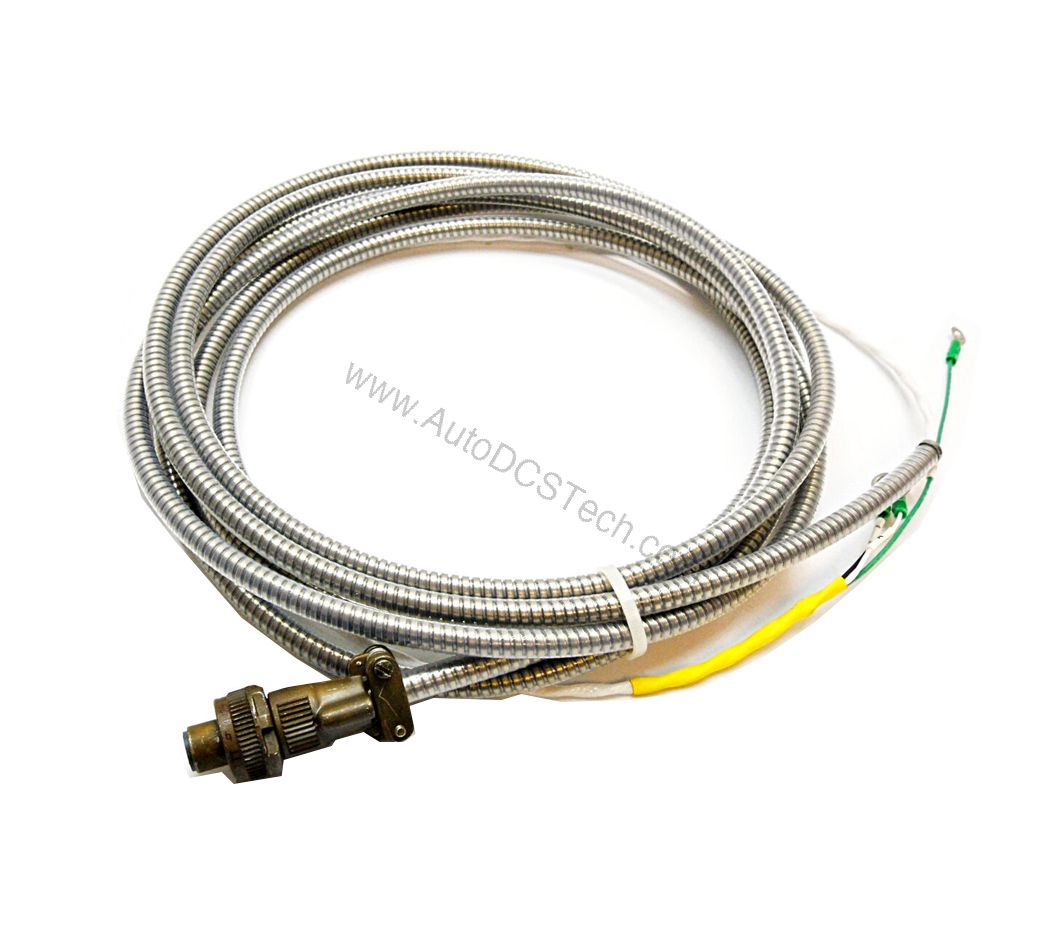

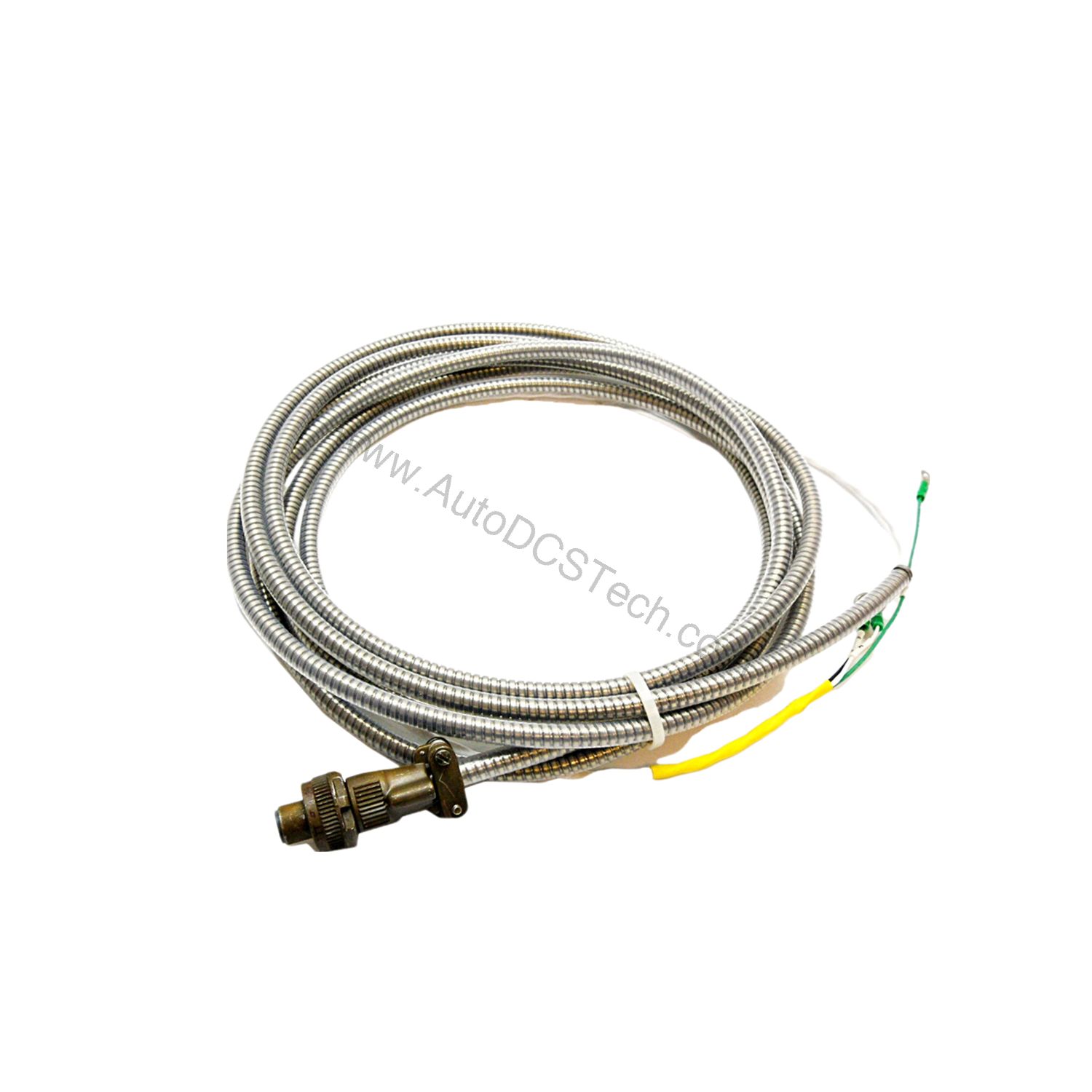

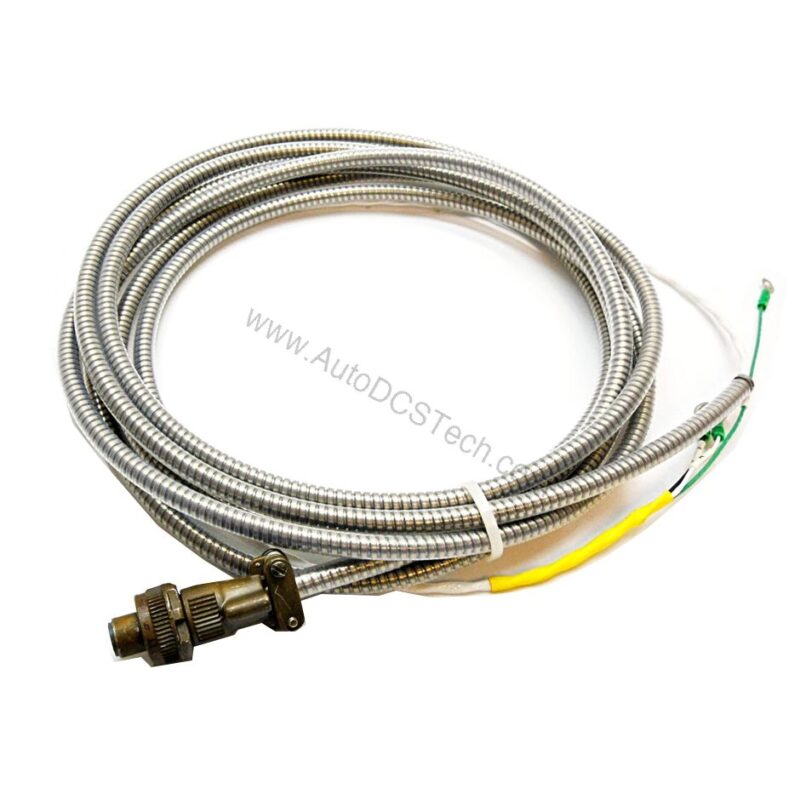

When vibration monitoring signals degrade, machine protection becomes unreliable. The 84661-35 from Bently Nevada solves this with a two-conductor twisted, shielded 22 AWG armored cable. Its design minimizes electromagnetic interference, ensuring accurate data transfer from sensors to monitoring systems.
This interconnect cable is built for demanding industrial environments. The armored jacket protects against physical damage, while the moisture-resistant connector prevents signal loss in humid conditions. With a length of 35 feet, the 84661-35 offers flexibility in routing between field devices and control cabinets.
Key Features and Technical Specifications
- Two-conductor twisted, shielded 22 AWG construction for noise rejection.
- Armored cable jacket for enhanced mechanical protection.
- Two-socket moisture-resistant female connector at one end.
- Terminal lugs at the opposite end for secure termination.
- Length: 35 feet (10.7 m) – within the 3.0 ft (0.9 m) to 96 ft (29 m) range.
The twisted pair design cancels common-mode noise, a critical factor in maintaining signal fidelity over longer runs. The shield adds an extra layer of defense against electrostatic interference, making the 84661-35 suitable for installations near motors, drives, or high-voltage lines.
Application Flexibility for Industrial Monitoring
This cable is ideal for connecting proximity probes, accelerometers, or other transducers to Bently Nevada monitoring systems. Its 35-foot length suits typical machine train layouts, allowing sensors to be placed at optimal measurement points while keeping electronics in safe areas.
For retrofit projects, the terminal lugs simplify field wiring, while the female connector mates directly with compatible sensor cables. The armored construction withstands abrasion and impact, reducing downtime caused by cable damage.
Installation and Setup Considerations
Proper routing is essential to preserve signal quality. Avoid running the 84661-35 parallel to power cables for long distances. If crossing is unavoidable, do so at 90 degrees to minimize inductive coupling.
Secure the cable using appropriate clamps or conduit, but do not over-tighten, as excessive stress on the connector can compromise the moisture-resistant seal. Leave sufficient slack at both ends to allow for thermal expansion and vibration without pulling on the connections.
Maintenance and Longevity
Periodically inspect the cable jacket for cuts, abrasions, or chemical exposure. Check the connector for signs of corrosion or moisture ingress, especially in washdown areas. Replace the cable if the shield is exposed or the connector shows damage.
The robust construction of the 84661-35 minimizes maintenance needs, but regular visual checks help prevent unexpected failures. Store spare cables in a clean, dry area to ensure they remain ready for deployment.
Compatibility and Integration
As a Bently Nevada interconnect cable, the 84661-35 is designed to work with Bently Nevada monitoring systems and sensors. Its 22 AWG conductors and shielding are optimized for low-level signal transmission typical of vibration monitoring.
For systems requiring longer runs, the maximum length of 96 ft (29 m) provides design flexibility. Always verify connector types and pinouts with your system documentation before installation.
Troubleshooting Common Signal Issues
If you experience erratic readings, first inspect the cable for physical damage. A compromised shield can introduce noise, causing false alarms. Test continuity on both conductors and the shield to ensure there are no breaks.
Moisture ingress is another common failure point. The moisture-resistant connector reduces this risk, but if the cable is submerged or exposed to condensation, dry the connector and verify the seal. Replace the cable if internal corrosion is suspected.
Product Support and Availability
The 84661-35 is available through AutoDCSTech, a leading supplier of industrial automation parts. Contact our team to confirm stock and lead times. We are ready to support your monitoring system needs.
