Allen-Bradley 22B-B012N104 PowerFlex 40 AC Drive 240VAC 3-Phase

Optimizing Motor Control with the Allen-Bradley 22B-B012N104 PowerFlex 40 Drive

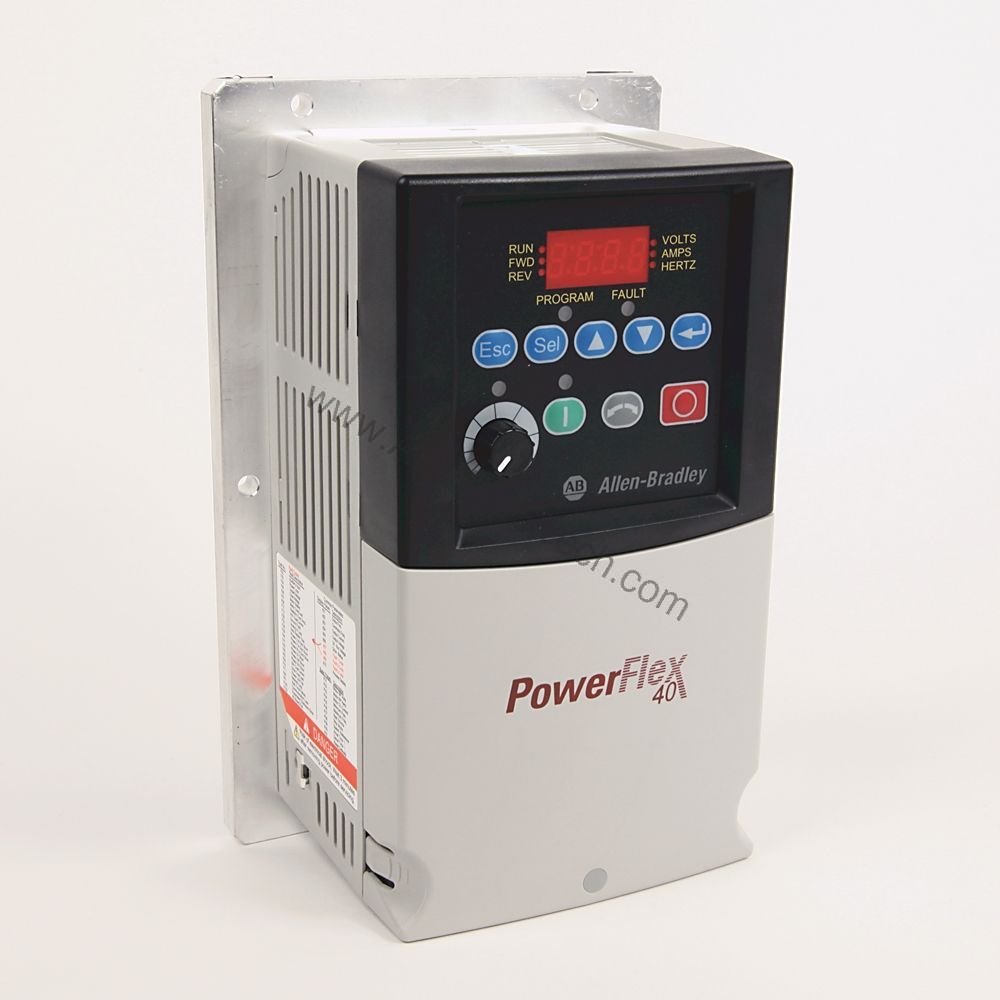

Industrial facilities often face the challenge of balancing precise motor speed regulation with energy efficiency. The Allen-Bradley 22B-B012N104 PowerFlex 40 adjustable frequency AC drive directly addresses this need. Designed for 240VAC, 3-Phase input, this drive delivers 2.2 kW or 3.0 HP output at 12.0 Amperes, making it a compact solution for variable torque and constant torque applications.

Technical Specifications Breakdown

Key parameters for the 22B-B012N104 are listed below for quick reference:

Real-World Applications for Enhanced Productivity

For conveyor systems handling fluctuating loads, the Sensorless Vector Control (SVC) method delivers high torque even at low speeds, preventing stalls and reducing mechanical stress. In pump and fan applications, Volts per Hertz (V/Hz) control provides stable speed regulation while minimizing energy consumption through programmable acceleration and deceleration profiles. The integrated Safe-Torque Off (STO) functionality adds a layer of operator safety during maintenance without removing power from the drive.

Installation and Setup Guidance

Mount the 22B-B012N104 on a panel or DIN rail within an IP20 rated enclosure. Ensure the ambient air temperature stays between -10 and 50°C and relative humidity remains 0-95% non-condensing. Use the embedded keypad Human Interface Module (HIM) for local configuration and troubleshooting. For network integration, the RS485 port supports DSI protocol, and optional communication adapters enable ProfiBus, DeviceNet, ControlNet, or Ethernet/IP connectivity. When connecting to a motor, verify the output current (12.0 A) matches the motor nameplate and set the carrier frequency within the 2-16 kHz range.

Maintenance and Reliability Considerations

Periodically inspect the enclosure for dust buildup that could impede airflow. Verify all wiring connections are tight and free from corrosion. The drive’s zero-stacking capability allows multiple units to be mounted side by side, but ensure adequate clearance for heat dissipation. Monitor the drive’s internal diagnostics via the HIM to catch early warnings of overload or overtemperature conditions.

Compatibility and Integration

When equipped with an optional Ethernet/IP card, it allows direct parameter access from CompactLogix and ControlLogix platforms, streamlining commissioning and data collection. The discrete I/O includes four sink/source inputs and a combination of N.O./N.C. contacts and optocoupler outputs, providing flexibility for interlocking and status feedback.

Selection Guide and Purchasing Advice

When selecting this drive, confirm your incoming power matches 240VAC 3-Phase and that the motor’s full-load current does not exceed 12.0 A. For applications requiring precise speed or torque control, the SVC and V/Hz methods cover a wide range of needs. AutoDCSTech stocks the 22B-B012N104 and can advise on compatible accessories such as communication adapters and motor protection components. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
