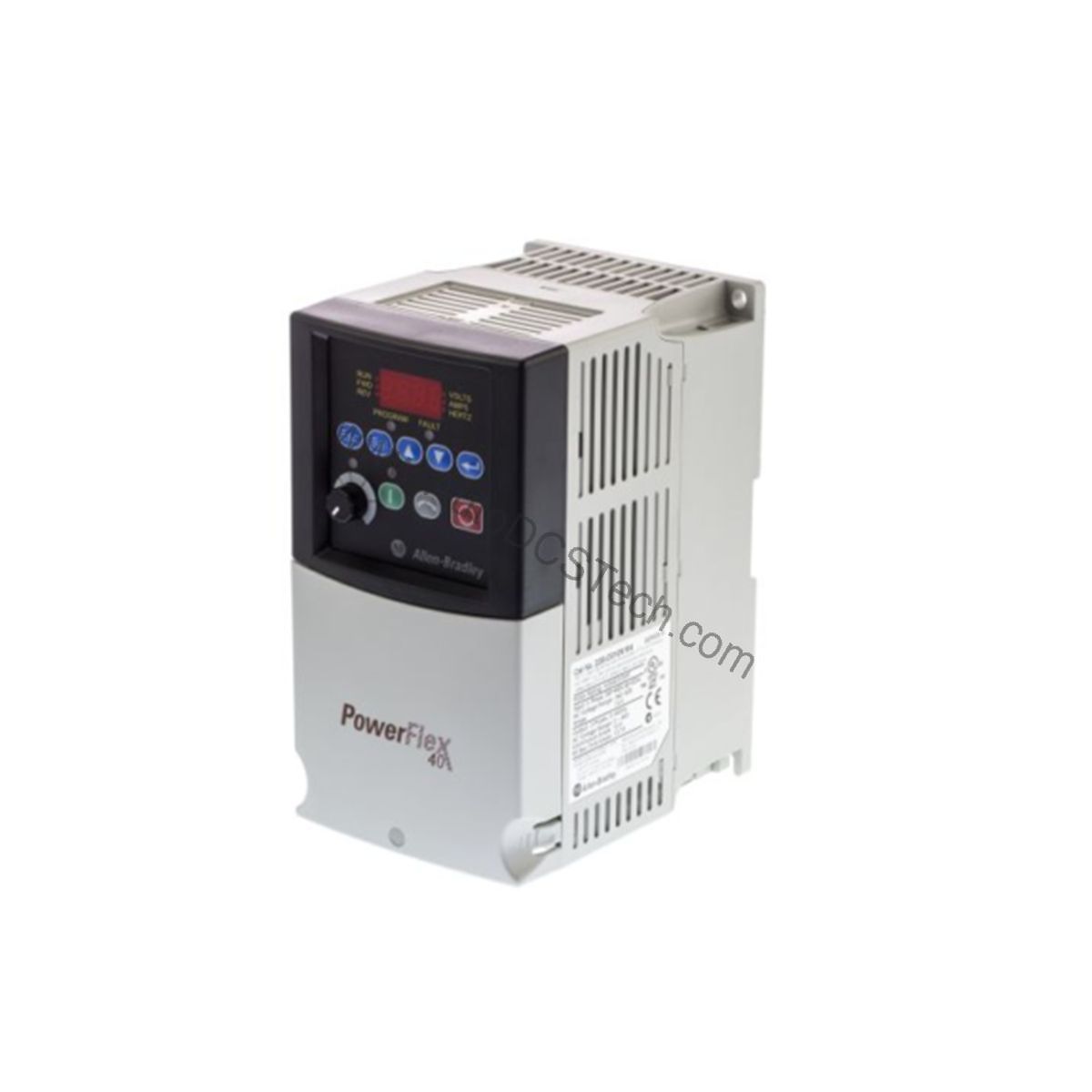

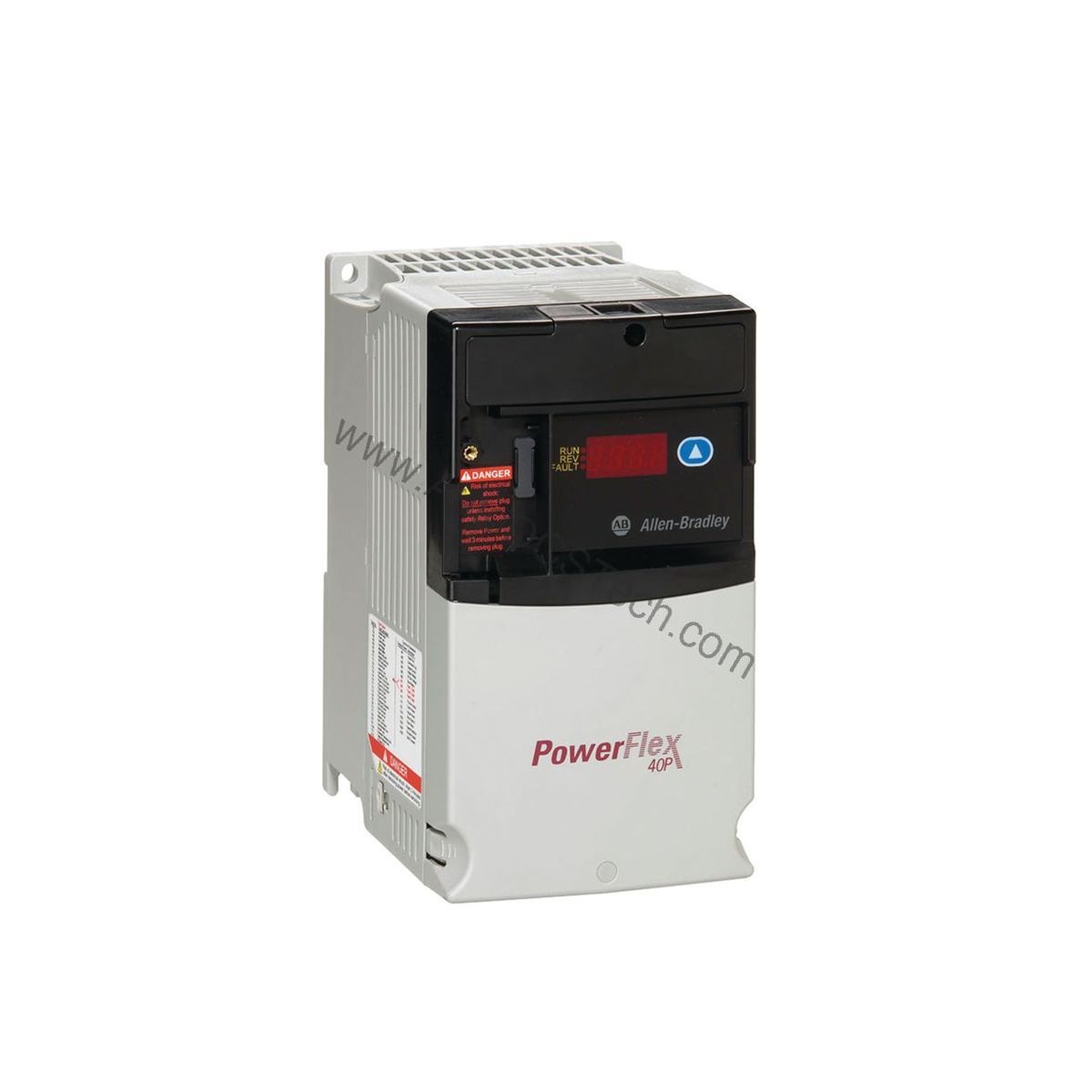

Allen-Bradley 22D-B8P0N104 PowerFlex 40P AC Drive, 240V, 8A

Technical Specifications Breakdown

Key parameters for the 22D-B8P0N104 are listed below for quick reference:

Applications That Benefit from the 22D-B8P0N104

The 2 HP rating at 240V AC input suits many light-to-medium industrial processes. Because it lacks a built-in EMC filter, it is well-suited for installations where an external filter is preferred or where electromagnetic compatibility requirements are already managed at the panel level. The IP20 enclosure allows for safe installation inside a larger control cabinet, protecting operators from accidental contact with live parts.

Installation & Setup Guidance

When mounting the 22D-B8P0N104, ensure the panel provides adequate clearance for airflow and heat dissipation. The drive should be installed vertically on a flat, non-flammable surface. Use the provided mounting holes and torque screws to the recommended values. Connect incoming 3-phase 240V AC power to the input terminals, and the motor to the output terminals (U, V, W). Verify that the motor's voltage and current ratings match the drive's output. Configure the drive using the built-in human interface module (HIM), which includes a 4-digit display, a reset button, and 10 LED status indicators. For initial setup, set the motor control mode to either sensorless vector or volts-per-hertz, depending on your application requirements. Always follow local electrical codes and the product manual for safe wiring.

Maintenance & Reliability

The 22D-B8P0N104 is designed for long service life, but periodic inspections are essential. Check the drive's cooling fan (if present) for dust buildup and ensure the panel's ambient temperature stays within the specified range of -10 to 50 °C. Also, verify that the altitude does not exceed 1000 m, as higher altitudes can reduce cooling efficiency. Inspect all power and control wiring for signs of wear or loose connections. Since this drive includes bus overvoltage and undervoltage trips, these protective functions should be tested periodically by simulating fault conditions (if safe to do so) to confirm they operate correctly.

The Challenge: Consistent Motor Control in Tight Spaces

Industrial facilities often face a common dilemma: how to achieve precise variable-speed control for 3-phase AC motors without sacrificing valuable panel space or dealing with complex wiring. The Allen-Bradley 22D-B8P0N104 from the PowerFlex 40P series addresses this directly. As a compact, panel-mounted drive, it delivers dependable performance for applications that demand straightforward operation and robust protection, all within a NEMA Type open (IP20) enclosure.

Compatibility & Integration

The PowerFlex 40P series is known for its flexible I/O. The 22D-B8P0N104 provides 7 digital inputs (2 semi-programmable, 5 fully programmable), 1 DIP-switch-selectable analog input, 1 DIP-switch-selectable analog output, 1 programmable form C relay output, and 2 opto outputs. This rich I/O set allows easy integration with PLCs, sensors, and other control devices. The drive supports both sensorless vector and volts-per-hertz control, giving you the flexibility to match the control method to your motor and load characteristics.

Selection Guide & Purchasing Advice

When selecting a replacement or a new drive, always confirm that the voltage, current, and horsepower ratings match your motor and power supply. The 22D-B8P0N104 is a 3-phase, 240V AC drive with 8.0 A output, suitable for 2 HP motors. If your application requires a built-in EMC filter, consider other models in the PowerFlex 40P series. We stock genuine Allen-Bradley parts and can help you find the right drive for your needs. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If the drive trips on bus overvoltage, it means the DC bus voltage exceeded 1005V DC (equivalent to 711V AC incoming). This often occurs during rapid deceleration or regenerative loads. Check the deceleration time and consider adding a dynamic brake resistor. For bus undervoltage trips, the DC bus fell below the threshold (390V DC at low voltage or 487V DC at high voltage). This can be caused by supply voltage dips or loose connections. Inspect the incoming power and wiring. If the drive does not start, verify that the enable inputs are properly wired and that the HIM is functioning. Use the LED indicators to diagnose status. Always consult the user manual for detailed fault codes and corrective actions.
