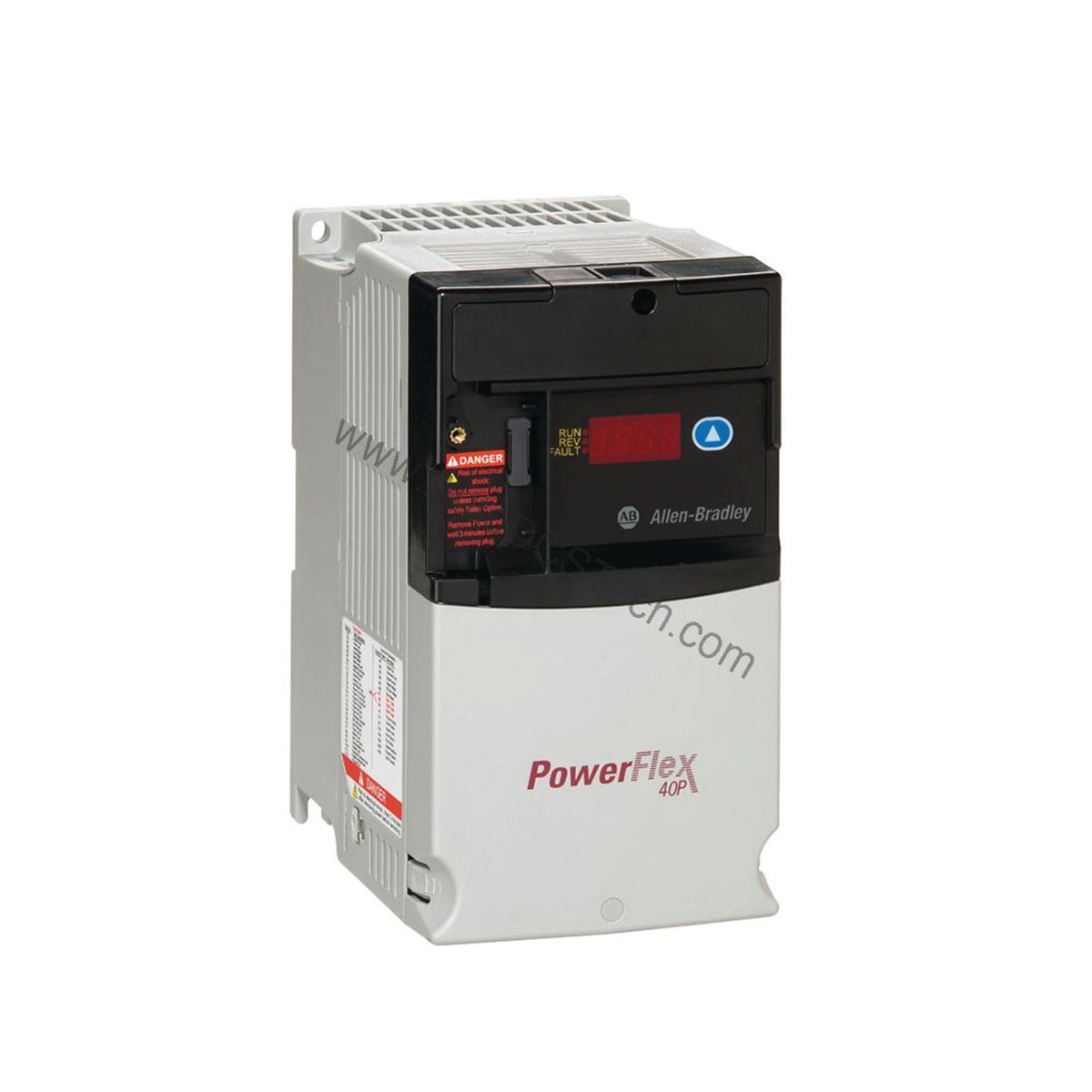

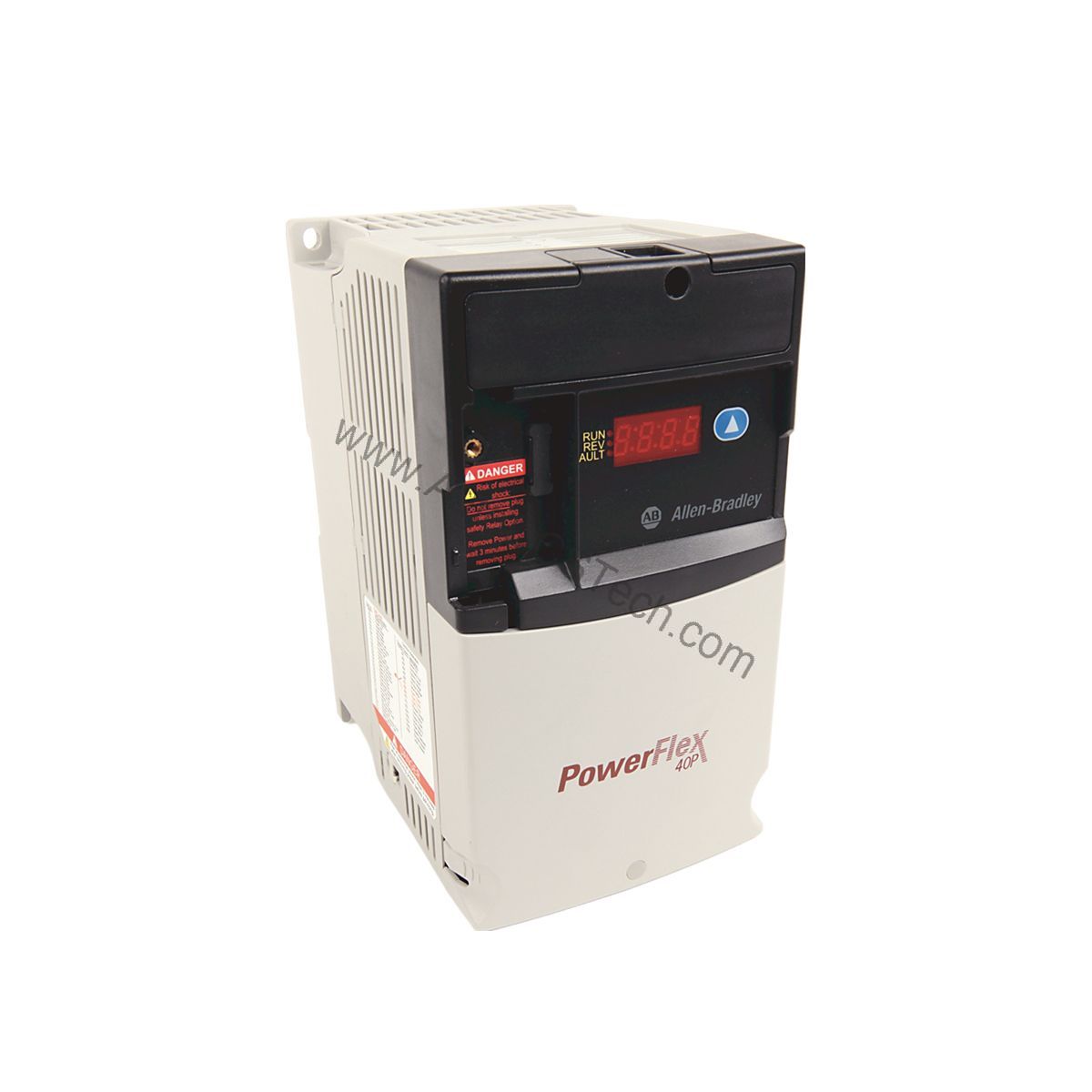

Allen-Bradley 22D-D010H204 PowerFlex 40P AC Drive 10.5A

Technical Specifications Breakdown

Key parameters for the 22D-D010H204 are listed below for quick reference:

The 22D-D010H204 is built for production environments that demand reliability and flexibility. It is an choice for smart conveyors, diverters, and palletizers, where precise speed control keeps material flow smooth and reduces jams. In textile machinery, such as ring spinning machines and drafting machines, this drive helps maintain consistent tension and quality. Its compact frame size B and DIN rail mounting option make it easy to integrate into new or existing machinery, saving valuable panel space.

Installation & Setup Guidance

Installing the 22D-D010H204 is straightforward. The B frame drive supports DIN rail mounting, which simplifies installation and reduces downtime. Panel mounting is also available for added flexibility. For applications requiring a higher environmental rating, an optional IP30 (NEMA 1) conduit box can be easily adapted to the standard IP20 product. This adaptability helps you meet different site requirements without major redesigns.

When planning your installation, consider the ambient temperature. Zero stacking is allowable for ambient temperatures up to 40 degrees Celsius, which helps save panel space. Always follow the manufacturer's guidelines for clearance and airflow to ensure reliable operation.

Maintenance & Reliability

To keep the 22D-D010H204 operating at peak performance, implement a routine inspection schedule. Periodically check for dust buildup on the heatsink and ensure the enclosure's IP20 rating is maintained. Verify that all wiring connections remain tight and that the drive is not exposed to excessive moisture or vibration. Because the drive has no CE-compliant filter, be mindful of the electrical environment and follow standard EMC practices.

The 22D-D010H204: Solving Speed Control Challenges in Compact Spaces

Industrial engineers often face a common dilemma: they need precise speed control for applications like conveyors and packaging machines, but they lack the panel space for bulky drives. The Allen-Bradley 22D-D010H204 from the PowerFlex 40P series addresses this directly. It delivers dependable variable speed control in a compact, cost-effective package, allowing you to optimize production without sacrificing valuable floor space.

Compatibility & Integration

The PowerFlex 40P series is designed to share common options and accessories across the family. This commonality simplifies spare parts management and reduces inventory costs. The drive supports a wide range of power ratings and voltage classes, making it a versatile building block for OEMs and end-users alike. For specific communication or I/O options, consult the product documentation to ensure compatibility with your system.

Selection Guide & Purchasing Advice

When selecting a drive, verify that the amperage, voltage, and horsepower match your motor's requirements. The 22D-D010H204 is rated for 10.5 A, 480 Volts AC, and 5 Horsepower, making it suitable for many three-phase applications. If you need a drive with a CE-compliant filter, consider other models in the PowerFlex 40P series. Our team can help you confirm that this part meets your needs and is in stock.

Troubleshooting & Common Issues

If the drive does not start, check the input power supply and ensure the control wiring is correct. Overheating can occur if the ambient temperature exceeds the rated limit or if airflow is blocked; verify that the drive is installed with adequate clearance. If the drive trips on overcurrent, inspect the motor and cables for shorts or ground faults. Always refer to the user manual for detailed fault codes and troubleshooting procedures.
