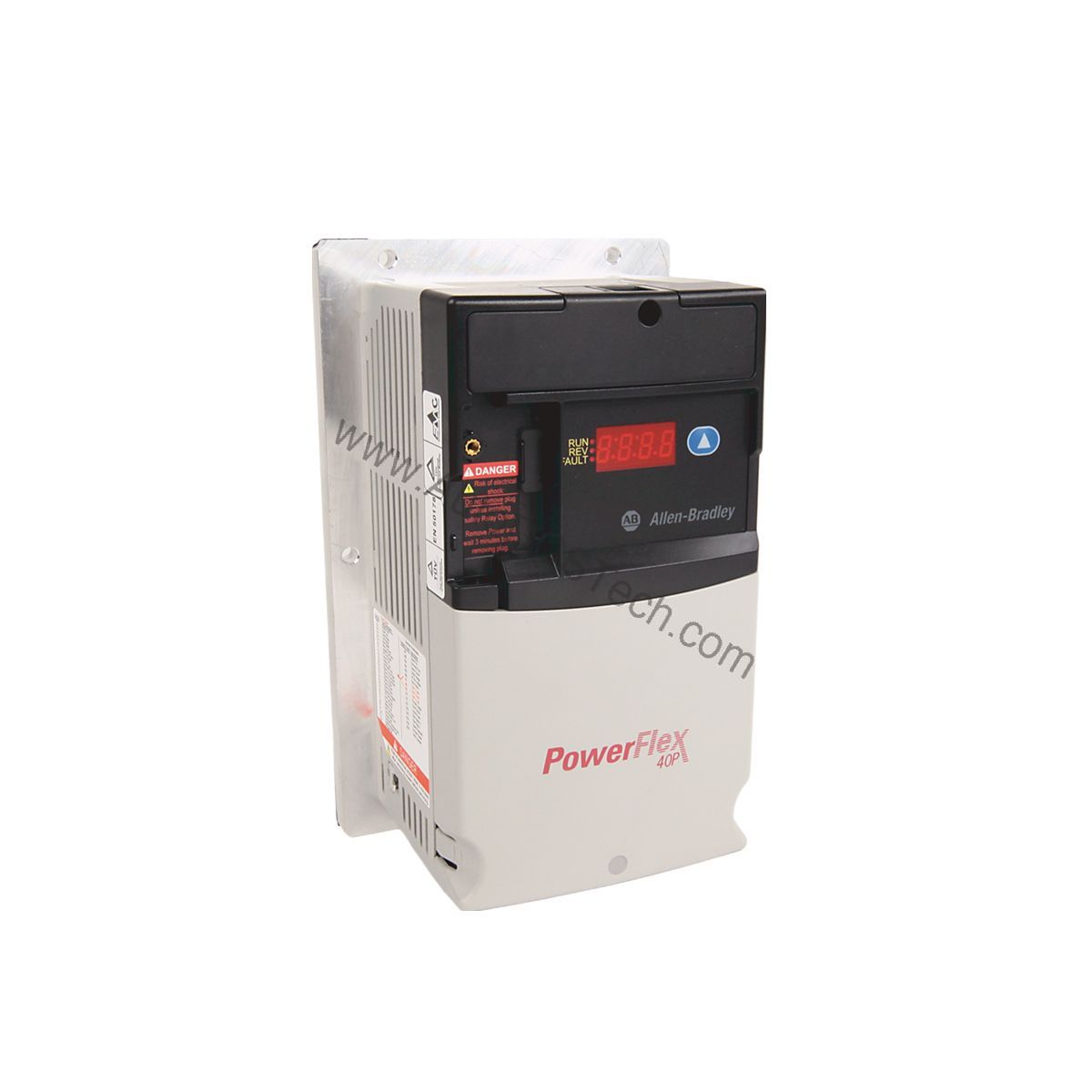

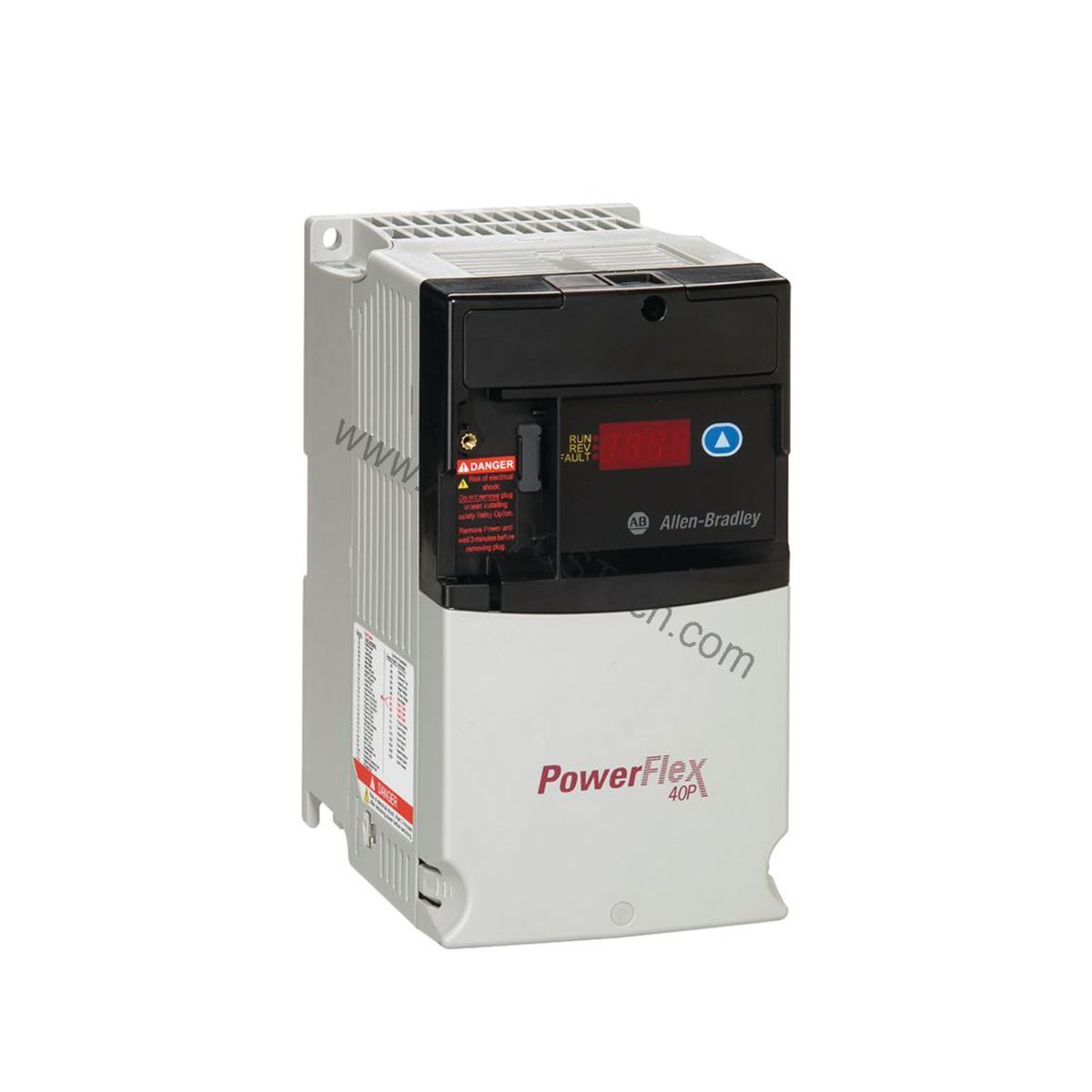

Allen-Bradley 22D-D012H204 PowerFlex 40P Drive

Technical Specifications Breakdown

Key parameters for the 22D-D012H204 are listed below for quick reference:

Industry Applications: Where Precision Meets Safety

This drive is an choice for applications that demand accurate speed regulation and a safe stop function. Typical uses include conveyor systems, fans, pumps, and packaging machinery. The built-in DriveGuard Safe Torque-off feature provides Category 3 safe-off functionality, allowing you to safely remove torque from the motor without disconnecting power, which is critical for maintenance and emergency stops. The velocity and frequency control, along with sensorless vector control, ensures smooth operation even at low speeds, improving product quality and reducing mechanical stress.

Installation & Setup Guidance

Proper installation is key to maximizing the performance and lifespan of your drive. The 22D-D012H204 features an open NEMA Type - Plate Mount (IP20) enclosure, which is intended for installation inside a suitable electrical cabinet. Ensure adequate ventilation and maintain the minimum enclosure volume of 2069 cubic inches to prevent overheating. The drive operates at a frequency of 50 to 60 Hertz, so verify your motor and supply are compatible. Use the Human Interface Module (HIM) to configure parameters and monitor operation. For remote mounting, consider the optional panel mount, handheld, or wireless handheld HIM kits, along with the DSI HMI cable.

Maintenance & Reliability

Regular inspection is essential for reliable operation. Periodically check all power and control connections for tightness, and ensure the enclosure remains clean and free of dust and debris. The estimated power dissipation of 175 Watts should be factored into your cabinet cooling calculations. With no CE compliant filter, you may need to consider external filtering if your application requires it. The drive's compact design and robust construction contribute to long service life, but always follow the manufacturer's guidelines for maintenance intervals.

PowerFlex 40P Adjustable Frequency Drive for Reliable Motor Control

This adjustable frequency drive is part of the PowerFlex 40P series, a family designed to address two critical industrial needs: closed-loop control and Category 3 safe-off functionality. The 22D-D012H204 is engineered to help you maintain process accuracy while ensuring operator safety, all within a compact and cost-effective package.

Compatibility & Integration

The PowerFlex 40P series is designed for easy integration into existing automation systems. The 22D-D012H204 supports multiple control options, including velocity and frequency control, and sensorless vector control. The Human Interface Module (HIM) provides a display and fault reset functionality, making it simple to monitor and diagnose issues. Optional accessories, such as the bezel kit for IP20, allow for flexible mounting. For more advanced integration, the DSI HMI cable enables connection to external devices. Always consult the product documentation for detailed wiring and configuration instructions.

Selection Guide & Purchasing Advice

When selecting an adjustable frequency drive, consider your motor's full-load amperage, voltage, and the required control features. The 22D-D012H204 is rated for 12.0 A, 480 Volts AC, and 7.5 Horsepower, making it suitable for a range of medium-duty applications. If you need a drive with a CE compliant filter, consider other models in the PowerFlex 40P series. At AutoDCSTech, we stock the Allen-Bradley 22D-D012H204 and can provide expert guidance to ensure you choose the right drive for your needs. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
