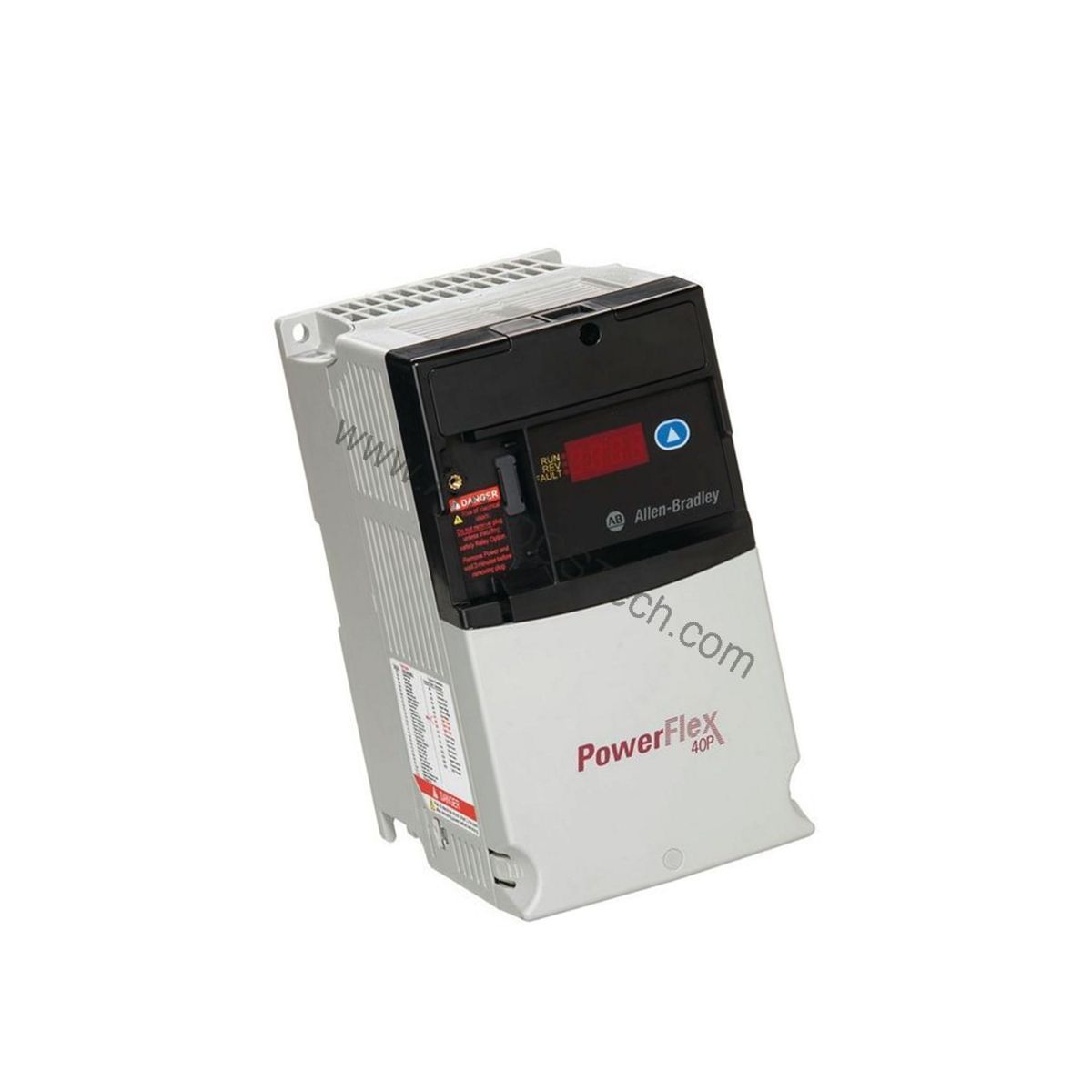

Allen-Bradley 22D-E012N104 PowerFlex 40P Adjustable Frequency Drive

Technical Specifications Breakdown

Key parameters for the 22D-E012N104 are listed below for quick reference:

Cost-Effective Speed Control for Critical Applications

The 22D-E012N104 is designed for applications like fans, machines, pumps, conveyors, and material handling systems. By precisely matching motor speed to load demand, this drive reduces unnecessary energy consumption and mechanical stress. This translates into lower operating costs and extended equipment life. Its compact design saves valuable panel space, which can reduce enclosure costs and improve overall system density.

Installation and Setup Guidance

This drive supports panel mounting within an IP20 rated open enclosure. For A and B frame drives, DIN rail mounting is available, offering flexibility in installation. The 22D-E012N104 features an integral keypad with a local potentiometer and regulation keys, enabling out-of-the-box operation. Ten common application parameters are grouped in the Basic Program Group, simplifying programming and reducing commissioning time. The digital display includes ten additional LED indicators for intuitive status monitoring.

Maintenance and Reliability Considerations

Regular inspection of the drive and its enclosure is recommended to ensure proper airflow and cooling. The drive can operate at ambient temperatures up to 40 degrees Celsius with zero stacking, saving panel space. With minimal spacing between drives, ambient temperatures of 50 degrees Celsius are possible. Always follow manufacturer guidelines for spacing and environmental conditions to maintain reliability and longevity.

Optimize Motor Control with the Allen-Bradley 22D-E012N104

Industrial operations demand precise motor speed and torque control without excessive energy waste. The Allen-Bradley 22D-E012N104 adjustable frequency drive from the PowerFlex 40P series delivers this capability in a compact, panel-mount design. Engineered for simple installation and reliable operation, this drive helps reduce energy consumption and improve process consistency across a wide range of applications.

Compatibility and Integration

The 22D-E012N104 is part of the PowerFlex 40P series, designed to meet international OEM standards and end-user requirements for space savings, flexibility, and ease of operation. It can be connected to a compatible PLC motor to control speed and torque. This drive is available in various power ratings from 0.2 to 11 kW and voltage classes of 120, 240, 480, and 600 Volts AC, making it a versatile choice for many systems.

Purchasing Advice and Lifecycle Status

Before ordering, please verify the current lifecycle status and availability of the 22D-E012N104 with AutoDCSTech. As a trusted supplier of industrial automation parts, AutoDCSTech can provide guidance on availability, alternatives, and support. Contact AutoDCSTech to ensure this drive meets your application requirements and to confirm stock status.
