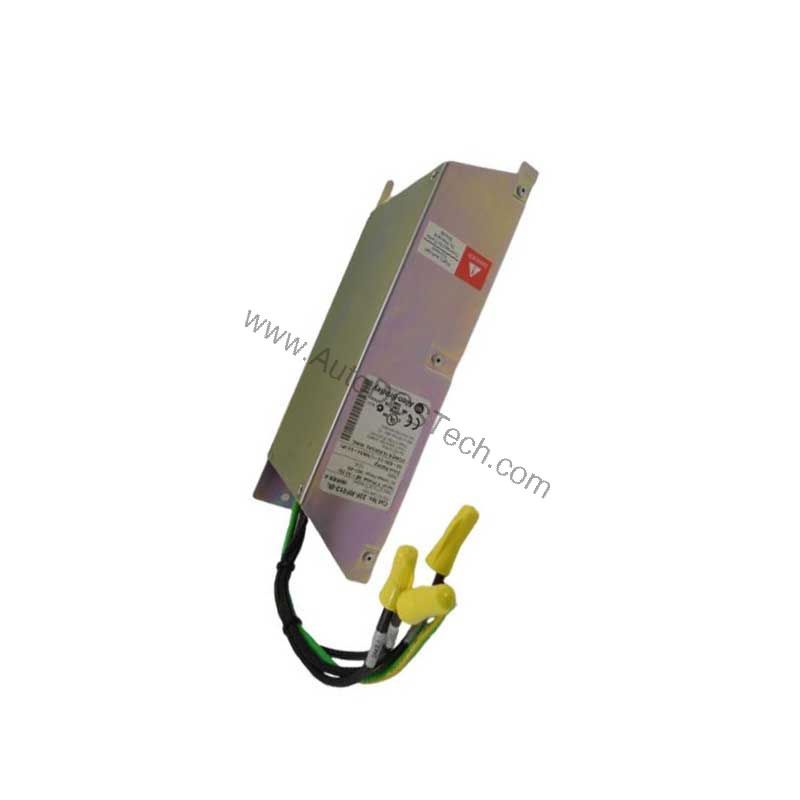

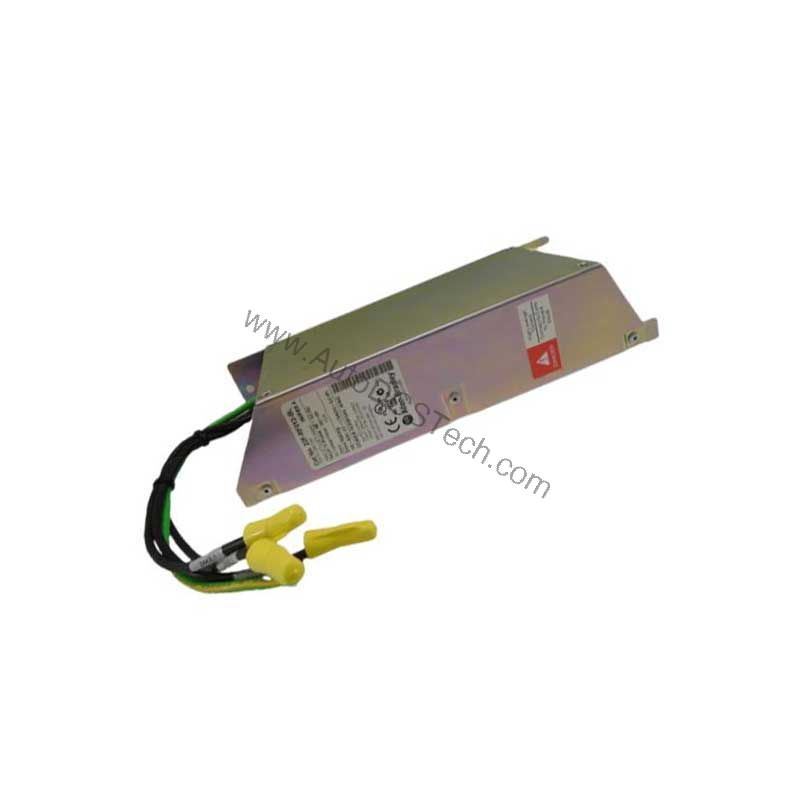

Allen-Bradley 22F-RF021-BL PowerFlex 4M EMC Filter Kit

Technical Specifications Breakdown

Key parameters for the 22F-RF021-BL are listed below for quick reference:

Industry Applications

In packaging lines, for example, conveyors and sensors operate close together. A PowerFlex 4M drive without proper filtering can cause false triggers or communication errors. Adding the 22F-RF021-BL minimizes these risks. Similarly, in material handling systems, multiple drives run simultaneously. Clean power ensures consistent performance and reduces downtime. The filter is also valuable in HVAC systems, where drives control fans and pumps. Reliable operation without EMI issues keeps the entire building management system stable.

Installation & Setup Guidance

Installing the EMC filter kit requires careful attention to the drive’s frame size. This kit is designed for Frame B drives. Before beginning, ensure the drive is disconnected from all power sources. Mount the filter securely, following the provided instructions. Use proper grounding techniques to maximize filter effectiveness. Connect the input power leads to the filter terminals, then route the output leads to the drive. Keep filter wiring separate from control wiring to avoid coupling. After installation, verify all connections are tight and that no stray wires touch the enclosure.

Maintenance & Reliability

EMC filters are passive components with no moving parts. They require minimal maintenance, but periodic inspection is wise. Check for signs of overheating, such as discolored terminals or a burnt smell. Ensure that dust and debris do not accumulate on the filter, as this can reduce cooling efficiency. In harsh industrial environments, inspect the filter every six months. If the filter is exposed to high humidity or corrosive vapors, increase inspection frequency. Replace the filter if any physical damage is visible.

The Quiet Evolution of Drive Systems

Industrial automation has come a long way since the days of bulky, noisy motor starters. Modern variable frequency drives (VFDs) bring precise speed control and energy savings, but they also introduce a new challenge: electromagnetic interference (EMI). As production lines became more sensitive, the need for clean power grew. This is where the Allen-Bradley 22F-RF021-BL PowerFlex 4M EMC Filter Kit steps in. It is a simple, effective solution that keeps your drive system operating reliably without disrupting nearby equipment.

What Is the 22F-RF021-BL?

The 22F-RF021-BL is an EMC filter kit designed specifically for the PowerFlex 4M series. It is a three-phase filter rated for 200…240V, 50/60 Hz. It is built for Frame B drives and supports a current rating of 21 A. This filter reduces electromagnetic emissions, helping your installation meet EMC compliance standards. It is an essential component for applications where sensitive electronics operate near the drive.

Compatibility & Integration

The 22F-RF021-BL is designed for use with Allen-Bradley PowerFlex 4M drives. It is specifically matched to Frame B drives. This filter kit is not a standalone device; it must be installed in conjunction with a compatible drive. The filter is rated for 200…240V, 50/60 Hz, three-phase systems. It supports a continuous current of 21 A. Always verify that your drive’s voltage and current ratings match the filter’s specifications before installation.

Selection Guide & Purchasing Advice

When selecting an EMC filter, consider your drive’s frame size and current rating. The 22F-RF021-BL fits Frame B drives and handles up to 21 A. If your drive draws more current, you may need a larger filter. Also, confirm that your supply voltage is within the 200…240V range. At AutoDCSTech, we stock genuine Allen-Bradley parts. Our team can help you confirm compatibility with your specific drive model. Contact us before ordering to ensure you select the correct filter kit for your application.

Troubleshooting & Common Issues

If you experience EMI-related problems after installing the filter, check the grounding first. A poor ground connection is the most common cause of filter inefficiency. Ensure that the filter’s ground terminal is connected to a solid earth ground. Also, verify that the filter is installed as close to the drive as possible. Long cable runs between the filter and drive can reduce effectiveness. If the filter gets hot, check for overcurrent conditions. The filter is rated for 21 A; exceeding this can cause overheating. Finally, confirm that the input voltage is within the specified range. Operating outside 200…240V can damage the filter.
