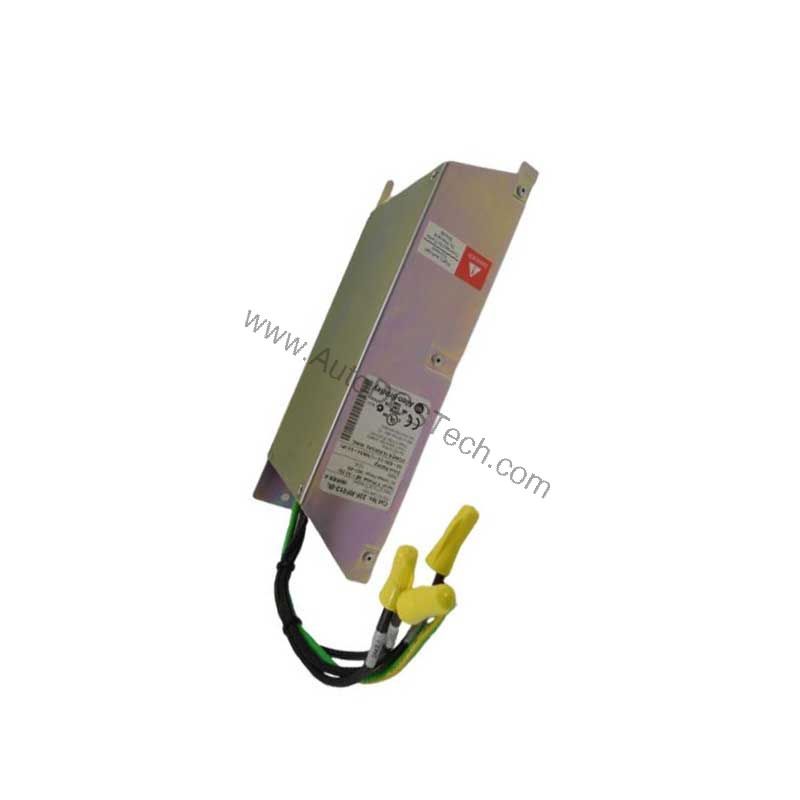

Allen-Bradley 22F-RF021-BS PowerFlex 4M EMC Line Filter 200-240V AC 21A

Technical Specifications Breakdown

Key parameters for the 22F-RF021-BS are listed below for quick reference:

Industry Applications

Common uses include conveyor systems, pumps, fans, and packaging machinery. By attenuating conducted emissions, the filter helps maintain compliance with EMC directives and reduces the risk of communication errors in PLC networks. The short cable length rating makes it suitable for installations where the drive is mounted near the motor, minimizing cable capacitance effects.

Installation & Setup Guidance

When installing the 22F-RF021-BS, ensure the filter is mounted close to the drive input terminals to maximize its effectiveness. Use the provided mounting holes and maintain adequate clearance for airflow. Connect the three-phase input lines to the filter's input side, and the output side to the drive's input terminals. Follow the torque specifications in the PowerFlex 4M manual. For short cable lengths, the filter is optimized to work without additional output reactors in most cases. Always verify that the supply voltage matches the filter rating before energizing.

Maintenance & Reliability

Periodically inspect the filter for signs of overheating, such as discoloration or a burnt odor. Check that all connections remain tight and free from corrosion. The filter has no moving parts, so maintenance is minimal. Keep the enclosure clean and ensure that ambient temperature stays within the drive's specified range. If the filter is exposed to high humidity, consider applying a conformal coating to the terminals, but only if the drive manufacturer permits it.

Why the 22F-RF021-BS EMC Filter Matters

Electromagnetic interference can disrupt drive performance and cause nuisance trips in adjacent equipment. The Allen-Bradley 22F-RF021-BS is a line filter designed specifically for PowerFlex 4M drives, ensuring cleaner power delivery and reliable operation in industrial environments. This filter is engineered for 3-phase systems operating at 200-240V AC with a current rating of 21A, making it a precise match for drives in that class.

Compatibility & Integration

The 22F-RF021-BS is designed for use with Allen-Bradley PowerFlex 4M drives. It is not a standalone drive component; it must be installed in series with the drive's input power. The filter is compatible with 3-phase systems only. For drives with higher current ratings, a different filter model is required. Verify that your drive's input current does not exceed 21A. This filter is not suitable for single-phase applications.

Selection Guide & Purchasing Advice

When selecting an EMC filter, consider the drive's input current and the cable length between the drive and motor. The 22F-RF021-BS is rated for short cable lengths, typically up to 25 meters, but always refer to the PowerFlex 4M manual for exact limits. At AutoDCSTech, we stock this filter and can help you confirm compatibility with your specific drive model. Our team of automation specialists can also advise on alternative filters if your application requires a longer cable length or a higher current rating. Contact us for a quote or to check availability.

Troubleshooting & Common Issues

If you experience drive faults related to overvoltage or overcurrent, first check that the filter is wired correctly. Loose connections can cause intermittent issues. If the filter runs hot, verify that the ambient temperature is within limits and that airflow is not blocked. If the drive trips on ground fault, inspect the filter for moisture ingress. The filter itself is passive and rarely fails; most issues stem from installation errors. If problems persist, consult the PowerFlex 4M troubleshooting guide or contact AutoDCSTech for technical support.
