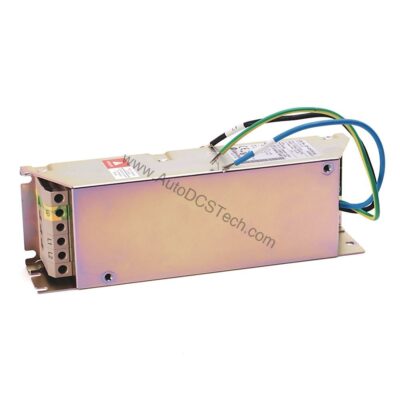

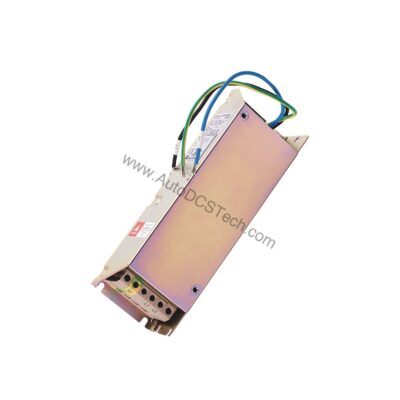

Allen-Bradley 22F-RF9P5-AL EMC Filter for PowerFlex 4M Drives

Technical Specifications Breakdown

Key parameters for the 22F-RF9P5-AL are listed below for quick reference:

This EMC filter is specifically engineered for PowerFlex 4M drives, which are commonly found in compact machinery such as conveyors, fans, pumps, and packaging equipment. In these applications, the drive's switching frequencies can generate conducted and radiated emissions that interfere with control signals. By installing the 22F-RF9P5-AL, you reduce electromagnetic noise, ensuring reliable operation of PLCs, sensors, and other sensitive electronics. The filter's 240V AC, 3-phase design makes it suitable for standard industrial power distribution in many regions, while the 50/60 Hz rating covers both European and North American mains frequencies. This versatility simplifies inventory management for OEMs and system integrators.

Solving the Electromagnetic Interference Challenge in Compact Drive Installations

When integrating variable frequency drives into modern industrial machinery, engineers often face a hidden adversary: electromagnetic interference (EMI). This noise can disrupt nearby sensors, communication lines, and control systems, leading to erratic behavior and costly downtime. The Allen-Bradley 22F-RF9P5-AL EMC filter directly addresses this issue for PowerFlex 4M drive installations. Designed as an L-type filter for 240V AC, 3-phase systems, this component ensures your drive operates cleanly within its electromagnetic environment, protecting both the drive and surrounding equipment.

Installation & Setup Guidance

Proper installation is key to maximizing the filter's performance. The 22F-RF9P5-AL is a panel-mount device with an IP20 rating, meaning it is protected against solid objects larger than 12mm but not against water. Install the filter in a clean, dry, and well-ventilated enclosure. Mount it as close as possible to the drive's input terminals to minimize cable length and reduce the risk of picking up noise. Use shielded cables for the drive input and output, and ensure the shield is grounded at both ends. The filter is designed for open-style mounting, so it does not require a separate enclosure, but it must be installed in a location that prevents accidental contact with live parts. Always follow the manufacturer's wiring diagrams and local electrical codes.

Maintenance & Reliability

The 22F-RF9P5-AL is a passive component with no moving parts, requiring minimal maintenance. However, periodic inspections are recommended to ensure reliable operation. Check the filter's connections for tightness and signs of corrosion, especially in humid or corrosive environments. Inspect the enclosure for dust accumulation, which can impede airflow and cause overheating. The IP20 rating means the filter is not dust-tight, so regular cleaning with a dry, lint-free cloth is advisable. Verify that the ambient temperature does not exceed the filter's rated limits, as excessive heat can degrade the internal components over time. With proper care, this filter can provide years of trouble-free service.

Compatibility & Integration

The 22F-RF9P5-AL is specifically designed for use with PowerFlex 4M drives. This filter kit is part of the drive communications and accessories family, ensuring seamless integration with your existing drive system. The filter is an L-type EMC filter, which is a common topology for reducing conducted emissions. It is rated for 240V AC, 3-phase systems, and is compatible with drives in the 0.2–1.5 kW (0.25–2 HP) range. Before ordering, verify that your drive's power rating and input voltage match the filter's specifications. This filter is not intended for use with other drive series unless explicitly confirmed by the manufacturer.

Selection Guide & Purchasing Advice

When selecting an EMC filter, it is crucial to match the filter's voltage, current, and power ratings to your specific drive. The 22F-RF9P5-AL is designed for PowerFlex 4M drives up to 1.5 kW, so it is not suitable for larger drives. If you are unsure about compatibility, consult the drive's manual or contact AutoDCSTech for expert guidance. AutoDCSTech offers this genuine Allen-Bradley filter, ensuring you receive a reliable, OEM-quality component. We also stock a wide range of industrial automation parts, so you can source all your needs from one trusted supplier. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
