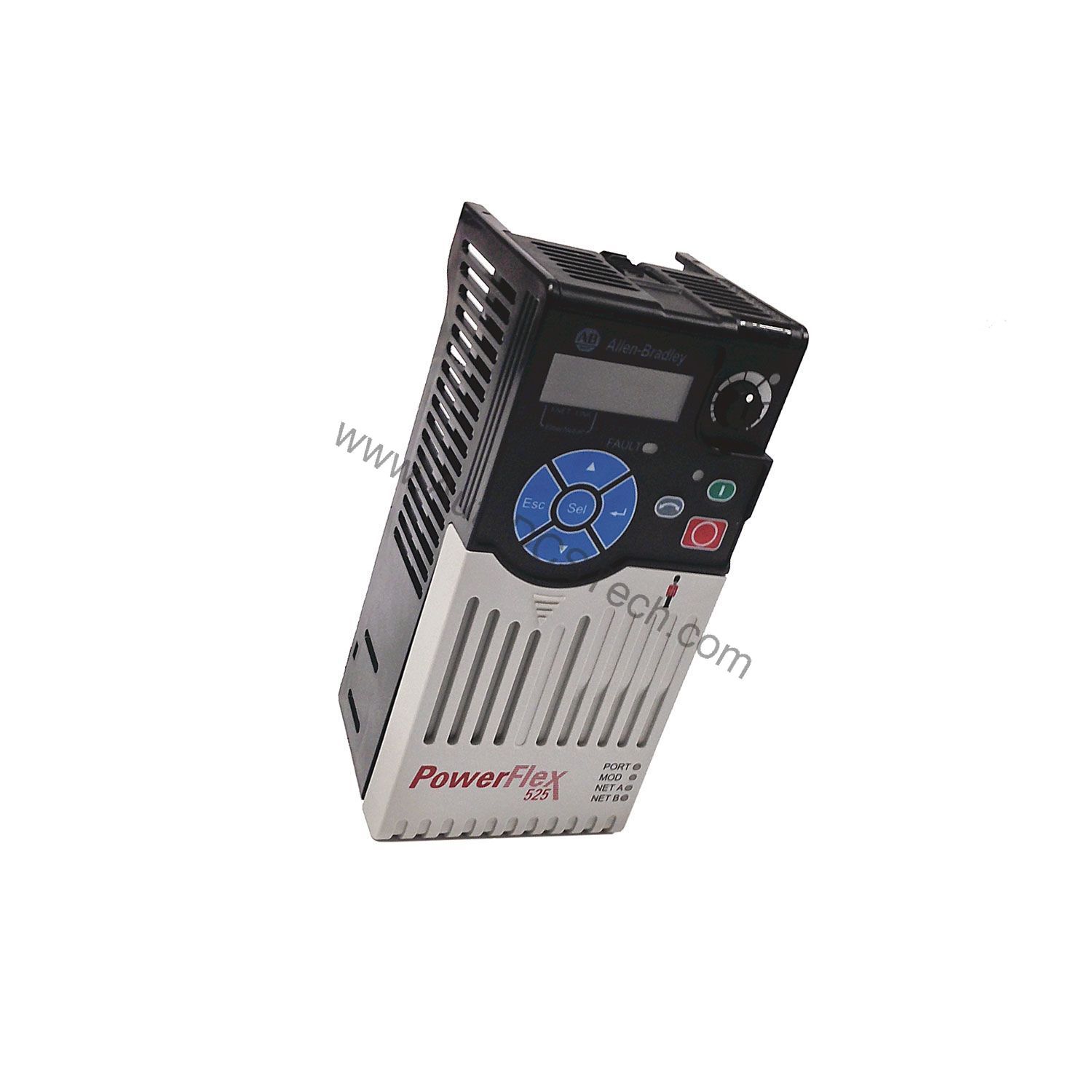

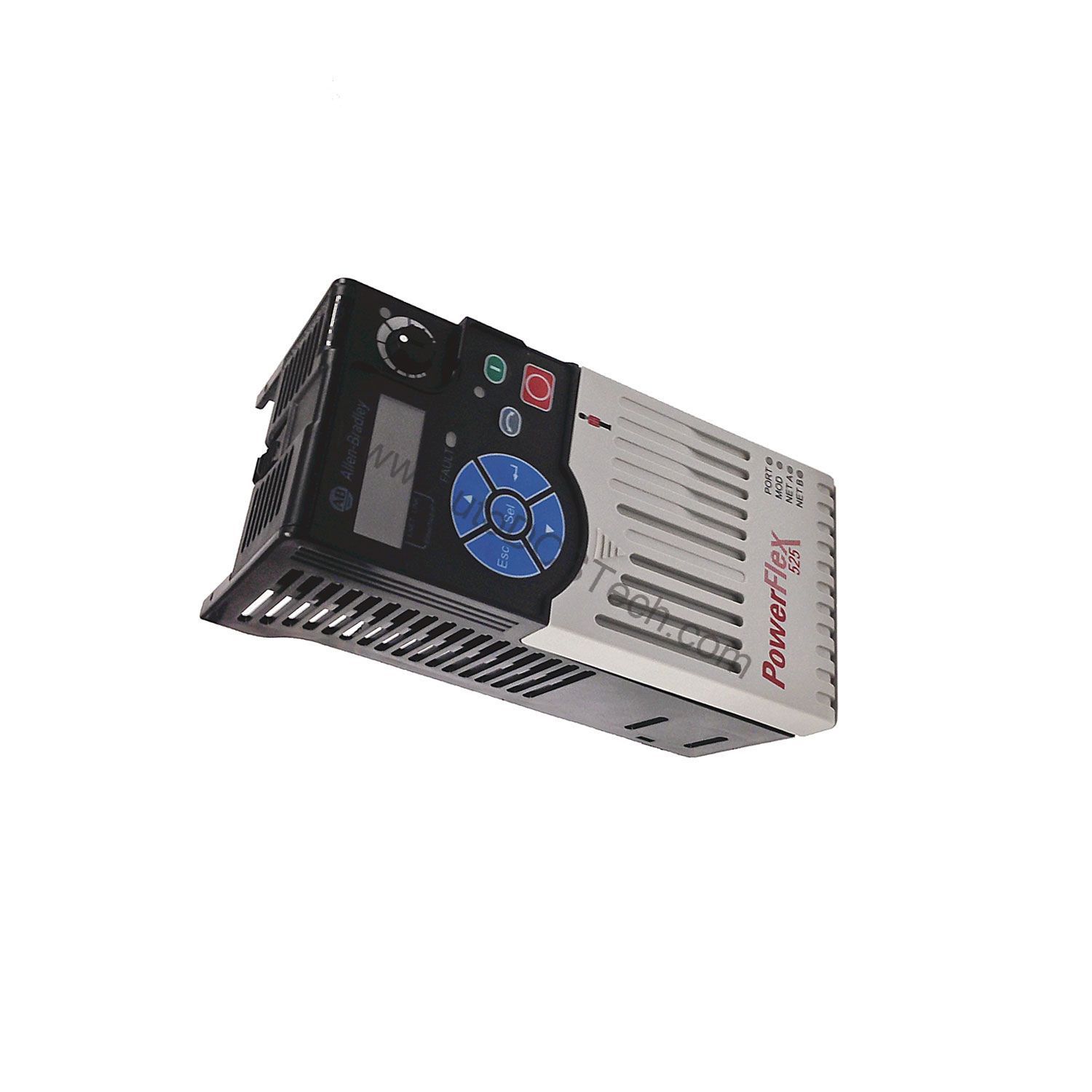

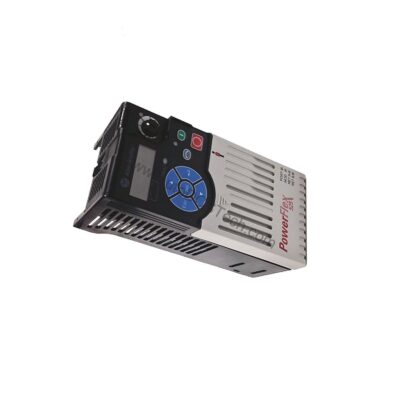

Allen-Bradley 25B-CTMFC1 PowerFlex 525 Control Module Front Cover

Technical Specifications Breakdown

Key parameters for the 25B-CTMFC1 are listed below for quick reference:

Industry Applications: Where Precision Meets Protection

This front cover is essential in various industries that rely on PowerFlex 525 drives for precise motor control. In material handling systems, conveyors depend on consistent operation; a damaged cover can expose the control module to debris, leading to unplanned stoppages. In pumping and HVAC applications, the cover protects against moisture and humidity, which are common in these environments. For packaging machinery, where washdowns are frequent, the cover's certified design helps maintain the drive's integrity against water ingress, ensuring continuous production cycles.

Installation & Setup Guidance

Replacing the 25B-CTMFC1 is a straightforward procedure, but it requires care. Always disconnect and lock out all power sources to the drive before beginning any work. The cover is designed to fit onto the PowerFlex 525 control module. Align the cover with the mounting points on the drive chassis and gently press it into place until it clicks or seats securely. Ensure that all gaskets or seals are properly positioned to maintain the protective seal. After installation, visually inspect the cover to confirm it is flush and secure. For detailed instructions, always refer to the official PowerFlex 525 documentation.

Maintenance & Reliability

The 25B-CTMFC1 is a low-maintenance component, but regular inspection is key to maximizing its lifespan. During routine maintenance checks, we recommend inspecting the cover for cracks, warping, or signs of chemical exposure. Clean the cover with a soft, dry cloth to remove dust and grime. Avoid using solvents or abrasive cleaners that could damage the plastic. In harsh environments, consider more frequent inspections. A proactive approach to replacing this cover can prevent costly damage to the more expensive control module inside.

Protecting Your Drive Investment: The Allen-Bradley 25B-CTMFC1 Front Cover

In the fast-paced world of industrial automation, the reliability of your variable speed drives (VSDs) is non-negotiable. Downtime translates directly to lost production and revenue. While the focus often falls on the drive's internal electronics, the physical integrity of its components is equally critical. The Allen-Bradley 25B-CTMFC1, a genuine PowerFlex 525 control module front cover, plays a vital role in safeguarding your drive's control interface and ensuring long-term operational stability.

The Role of the Control Module Front Cover

This component is specifically designed as a replacement or spare part for the PowerFlex 525 series. Its primary function is to protect the drive's control module from dust, moisture, and accidental contact, which can lead to electrostatic discharge or physical damage. By maintaining a sealed environment, the 25B-CTMFC1 helps preserve the integrity of the control board, ensuring that your drive's programming and communication settings remain secure. It is a simple yet essential part of a comprehensive preventive maintenance strategy.

Compatibility & Integration

This cover is specifically engineered for the PowerFlex 525 series, ensuring a perfect fit and seamless integration. It is not an universal part, so it is crucial to verify that your drive model is within the PowerFlex 525 family. The cover's design does not interfere with the drive's communication ports or control wiring. It is a direct replacement part, meaning no additional modifications are required. For any uncertainty regarding compatibility with your specific drive configuration, consult the product documentation or contact our technical team.

Selection Guide & Purchasing Advice

When ordering spare parts, authenticity is paramount. Counterfeit or third-party covers may not meet the same stringent standards, potentially compromising safety and performance. The 25B-CTMFC1 is manufactured to the original specifications, holding certifications such as UL, ATEX, and CE. At AutoDCSTech, we supply genuine Allen-Bradley components to ensure your equipment operates reliably. We recommend keeping this front cover in stock as part of your critical spares inventory to minimize downtime. Contact our team to confirm availability and current lifecycle status before ordering.
