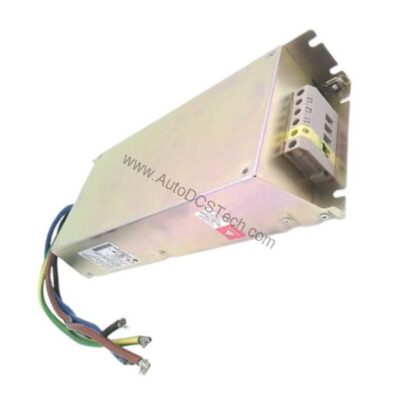

Allen-Bradley 22F-RF026-CL PowerFlex 4M EMC Filter Kit

Technical Specifications Breakdown

Key parameters for the 22F-RF026-CL are listed below for quick reference:

Industry Applications

Long cable runs act as antennas, radiating high-frequency noise that can cause communication errors, sensor glitches, or even damage to sensitive electronics. By installing the 22F-RF026-CL at the drive output, you reduce electromagnetic emissions and improve system reliability.

Common applications include conveyor systems, pumps, fans, and material handling equipment where PowerFlex 4M drives control AC induction motors. The filter’s 26A rating matches drives in the 5.5-11 kW range, making it a practical choice for many production lines.

Installation & Setup Guidance

Mount the filter close to the drive, using the provided hardware. Ensure the enclosure provides adequate airflow and that the filter is grounded according to local electrical codes. Use shielded motor cables with the shield grounded at both ends to maximize EMC performance. Keep power and control wiring separated to avoid coupling noise. Always disconnect power before installing or servicing the filter.

Maintenance & Reliability

Periodically inspect the filter for signs of overheating, such as discoloration or a burnt smell. Check that all connections remain tight and that the enclosure is free of dust and moisture. The filter has no moving parts, so it requires minimal maintenance. However, environmental factors like high humidity or corrosive atmospheres can degrade performance over time. Include the filter in your routine drive maintenance schedule to ensure long-term reliability.

Reliable EMC Protection for PowerFlex 4M Drives

Variable frequency drives generate electrical noise that can disrupt nearby equipment and cause nuisance trips. The Allen-Bradley 22F-RF026-CL EMC filter kit is a genuine Rockwell Automation solution designed to suppress electromagnetic interference in PowerFlex 4M drive installations. This line filter is rated for 3-phase, 380-480V AC systems and handles 26 amps, making it suitable for a range of industrial motor control applications.

Compatibility & Integration

The 22F-RF026-CL is specifically designed for Allen-Bradley PowerFlex 4M drives. It is not an universal filter; always verify compatibility with your drive model and rating before ordering. The filter supports 50-60 Hz systems, which covers most industrial power supplies worldwide. For drives rated 342-528V AC, this filter provides the necessary EMC protection for long cable installations.

Selection Guide & Purchasing Advice

When selecting an EMC filter, match the filter’s voltage and current ratings to your drive’s output. The 22F-RF026-CL is rated for 380-480V AC and 26A, which aligns with PowerFlex 4M drives in the 5.5-11 kW range. If your installation uses longer cables than standard, this “Long Cable Length” version is the right choice. AutoDCSTech stocks genuine Allen-Bradley parts, ensuring you receive authentic components that meet OEM specifications. Contact our team to confirm availability and lead times before placing your order.

Troubleshooting & Common Issues

If you experience drive faults or communication errors after installation, first verify that the filter is wired correctly and that all connections are tight. Check that the filter is rated for your drive’s voltage and current. If the filter overheats, ensure adequate ventilation and that the ambient temperature is within the drive’s specifications. If problems persist, consult the PowerFlex 4M user manual or contact AutoDCSTech for technical support.
