6SE7012-0TP50-Z 510-650V DC 0.75kW Inverter

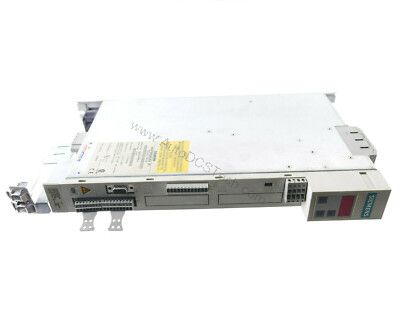

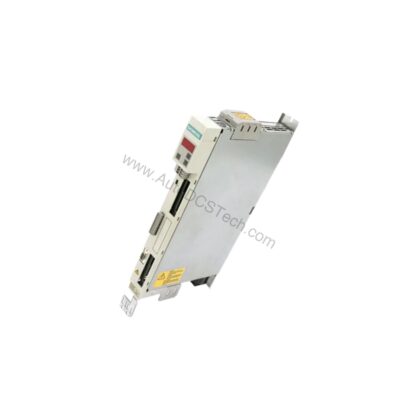

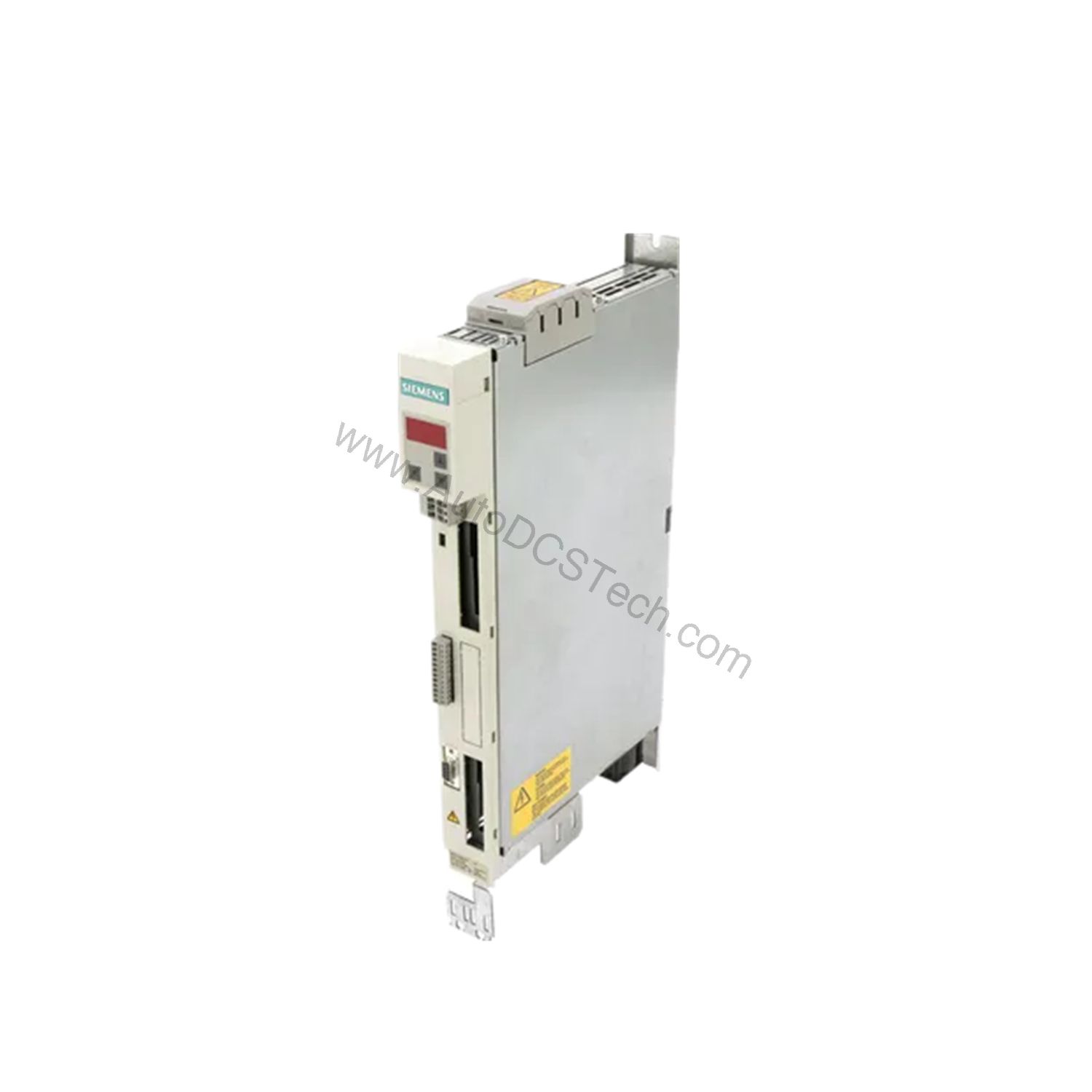

6SE7012-0TP50-Z Overview

When your production line demands reliable variable-speed control, the 6SE7012-0TP50-Z delivers. This Siemens SIMOVERT MASTERDRIVES Motion Control Compact Plus inverter is a spare part engineered for precise motor control in industrial environments. It operates on a 510-650V DC supply and provides a nominal output current of 2 A, supporting a power rating of 0.75 kW.

As part of the MASTERDRIVES family, this frequency converter is designed for three-phase input systems. It accepts a main frequency of 50/60 Hz, making it versatile for global installations. The unit weighs 3.20 kg and measures 39.50 x 30.00 x 17.00 cm, offering a compact footprint for panel integration.

This model is a successor to the 6SE7012-0TP70-Z, ensuring you have access to a proven design with documented performance. Whether you are upgrading an existing drive or replacing a failed unit, the 6SE7012-0TP50-Z provides a dependable solution.

Key Features and Technical Specifications

The 6SE7012-0TP50-Z is built to deliver consistent performance. Its technical parameters are tailored for light-to-medium duty applications. Below are the core specifications:

• Supply Voltage: 510-650V DC
• Main Frequency: 50/60 Hz
• Number of Phases Input: 3
• Nominal Output Current: 2 A
• Nominal Power Rating: 0.75 kW
• Dimensions (cm): 39.50 x 30.00 x 17.00
• Weight: 3.20 kg

These specifications ensure the inverter matches the electrical demands of typical industrial motors. The 510-650V DC input range provides flexibility for various DC bus configurations. The 2 A output current is suitable for fractional-horsepower motors, while the 0.75 kW rating indicates the maximum continuous mechanical power the drive can deliver.

Applications and Use Cases

Common use cases include conveyors, pumps, fans, and simple material handling systems. Its 0.75 kW rating makes it suitable for small to medium-sized machines.

For example, in a packaging line, this inverter can precisely control the speed of a conveyor belt, ensuring consistent product flow. In HVAC systems, it can modulate fan speed to match demand, improving energy efficiency. The 50/60 Hz main frequency support allows deployment in regions with different grid standards.

Furthermore, the 510-650V DC input makes it compatible with common DC bus systems found in industrial plants. This integration capability simplifies installation and reduces the need for additional power conversion equipment.

Installation and Setup

Proper installation is crucial for optimal performance. Begin by verifying that the DC supply voltage is within the 510-650V range. Ensure the input phases are connected correctly, as the inverter requires a three-phase input. Mount the unit securely in a well-ventilated enclosure to facilitate heat dissipation.

Refer to the documentation provided on CD for detailed wiring diagrams and parameter settings. It is essential to follow the manufacturer's guidelines to avoid electrical hazards. After installation, perform a thorough check of all connections before applying power.

For commissioning, set the motor parameters according to the motor nameplate. The inverter's control panel allows easy configuration of speed references and ramp times. Always test the system under no-load conditions first to verify correct operation.

Maintenance and Reliability

Regular maintenance ensures the 6SE7012-0TP50-Z operates reliably for years. Inspect the unit periodically for dust accumulation, which can impede airflow and cause overheating. Keep the cooling fins clean and ensure the ambient temperature stays within the specified limits.

Check all electrical connections for tightness and signs of corrosion. Loose connections can lead to voltage drops and overheating. Verify that the DC bus capacitors are in good condition, as they are critical for energy storage and filtering.

Following the manufacturer's maintenance manual is essential for safety and performance. With proper care, this inverter can provide long service life, minimizing total cost of ownership.

Cost-Efficiency and ROI Analysis

Investing in the 6SE7012-0TP50-Z can yield significant long-term savings. Its efficient power conversion reduces energy waste, directly lowering electricity bills. Moreover, the compact design minimizes panel space, freeing up valuable real estate for other components.

By maintaining precise speed control, this inverter reduces mechanical stress on motors and driven equipment. This translates to fewer breakdowns and lower maintenance costs over time. Additionally, the spare part availability ensures minimal downtime during repairs, protecting your production schedule.

Compared to replacing an entire drive system, sourcing a genuine spare part like the 6SE7012-0TP50-Z is a cost-effective strategy. It extends the life of your existing equipment without the capital expenditure of a full upgrade.

Compatibility and Integration

The 6SE7012-0TP50-Z is part of the Siemens SIMOVERT MASTERDRIVES family, ensuring compatibility with other MASTERDRIVES components. It can be integrated into existing drive systems that use a DC bus voltage of 510-650V. The inverter accepts standard three-phase input, making it adaptable to most industrial power networks.

For control integration, the inverter can be operated via its built-in keypad or through external control signals. It supports analog and digital inputs for speed reference and start/stop commands. However, specific communication protocols are not listed in the available data, so consult the official documentation for detailed integration options.

If you are replacing a similar MASTERDRIVES unit, the 6SE7012-0TP50-Z is designed to be a drop-in replacement, minimizing rewiring efforts. Always verify the motor compatibility and load requirements before installation.

Troubleshooting Common Issues

If the inverter fails to start, check the DC supply voltage and ensure it is within the 510-650V range. Verify that all input phases are present and correctly wired. A blown fuse or tripped circuit breaker could also prevent operation.

Overcurrent faults may occur if the motor is overloaded or if there is a short circuit in the motor cables. Inspect the motor and cabling for damage. Additionally, ensure that the motor parameters are correctly set in the inverter.

Overheating issues are often caused by inadequate ventilation. Clean the cooling fans and ensure the enclosure has sufficient airflow. If the problem persists, consult the troubleshooting section of the documentation or contact AutoDCSTech for technical support.

Product Support and Availability

The 6SE7012-0TP50-Z is available as a spare part at AutoDCSTech. We stock this item to ensure prompt delivery for your maintenance needs. Contact our team for current availability and lead times. Please verify the lifecycle status and compatibility with your system before ordering.
