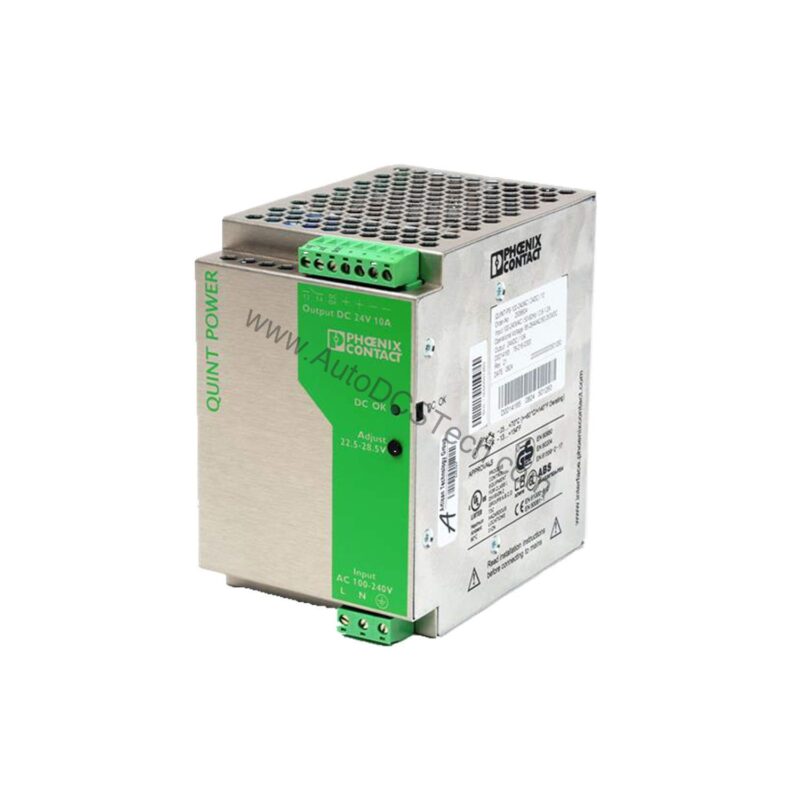

Allen-Bradley QUINT-PS-100-240AC/24DC/10 Power Supply | 24V 10A

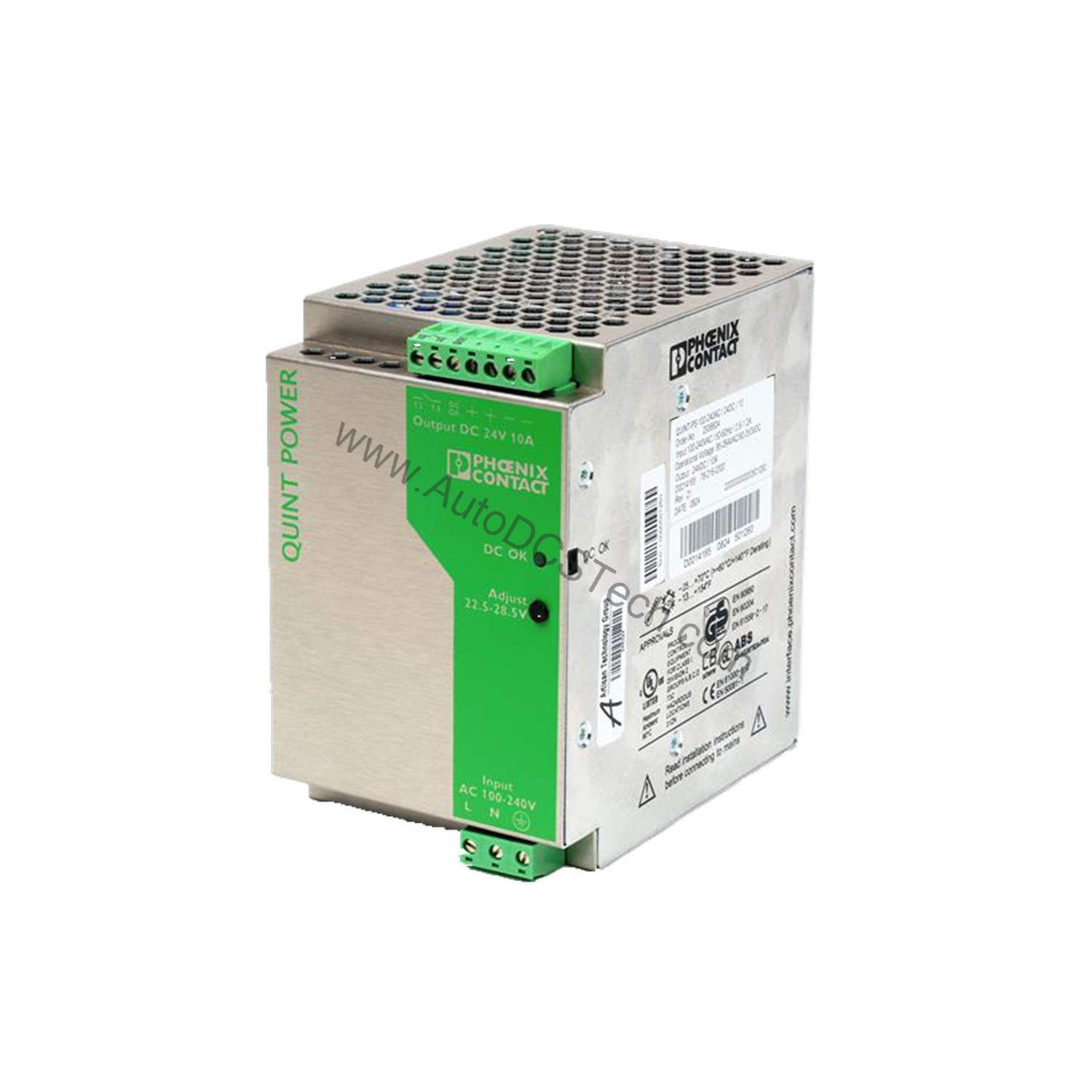

Technical Specifications Breakdown

Key parameters for the QUINT-PS-100-240AC/24DC/10 are listed below for quick reference:

Key Features for System Reliability

• Power Boost: Delivers 15A temporarily to start demanding loads.
• Mains Buffering: Maintains output for >50ms during brief power dips (at 230V AC).
• Preventive Monitoring: Active transistor and floating relay contacts signal DC OK status.
• Adjustable Output: Set voltage from 22.5V to 28.5V DC to compensate for line drops.
• Parallel Operation: Connect units for redundancy or increased capacity.

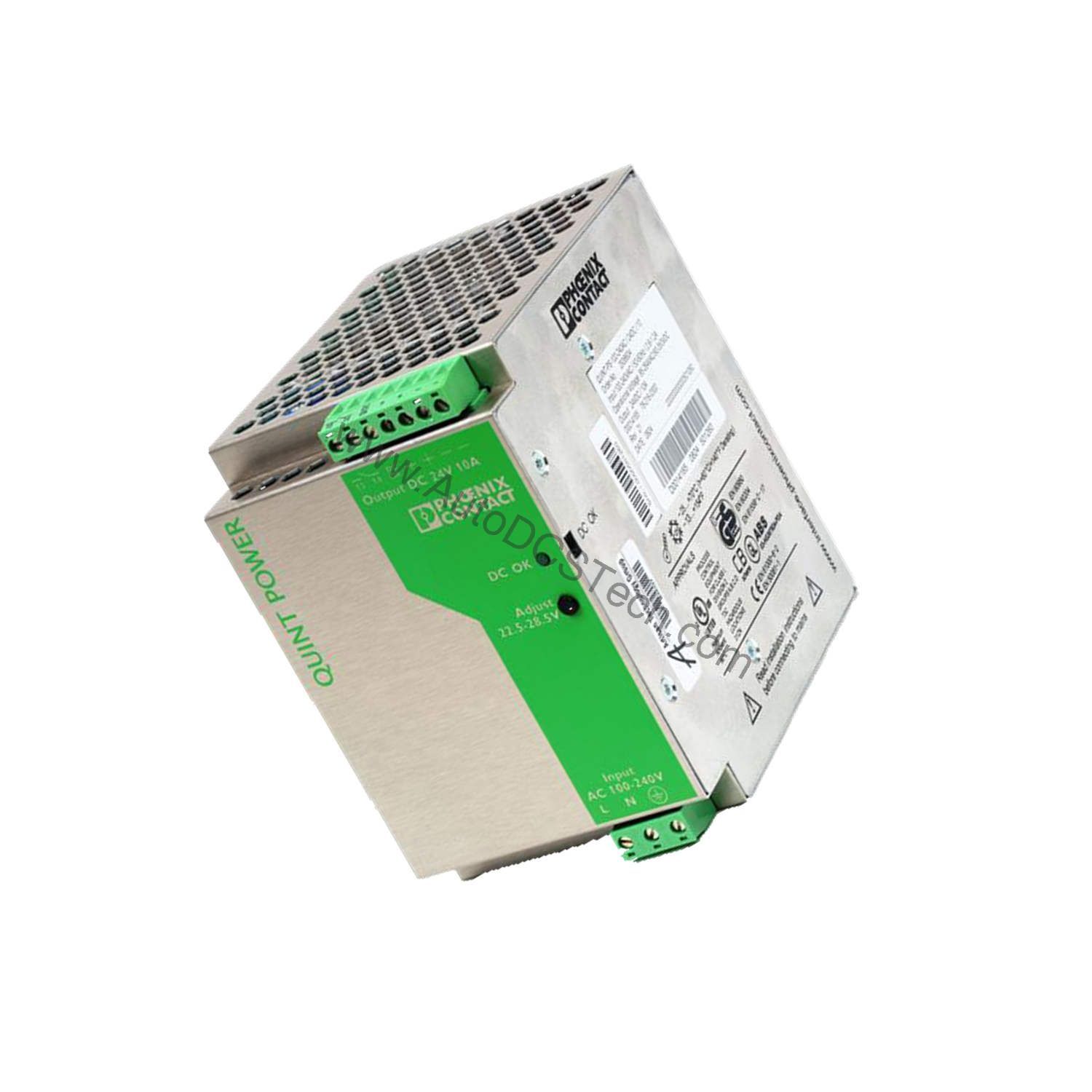

Installation and Setup Guidance

Mount the unit on a standard 35mm DIN rail (NS 35, EN 60715). Ensure horizontal alignment with 0mm spacing between units. For vertical stacking, maintain a 50mm gap for proper airflow. Use pluggable screw terminals for input and output wiring. Accepts solid or flexible conductors from 0.2mm² to 2.5mm² (AWG 24 to 12). Strip insulation to 7mm and tighten M3 screws to 0.5-0.6 Nm.

Maintenance and Reliability Insights

With an MTBF exceeding 500,000 hours, the QUINT-PS-100-240AC/24DC/10 is built for long service life. Its IP20 protection requires a clean, dry environment. Periodically inspect the unit for dust accumulation and ensure ventilation paths remain clear. The green LED provides a quick visual status check. If the LED flashes, the output voltage has dropped below 90% of nominal, indicating a potential overload or input issue.

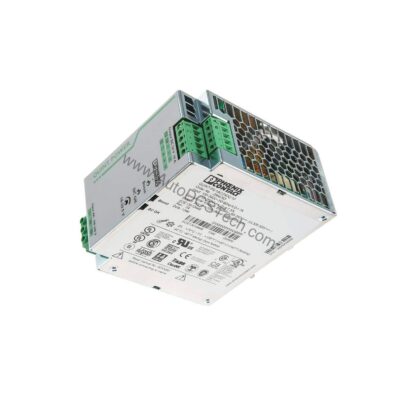

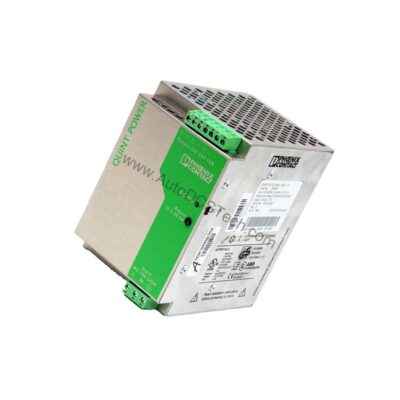

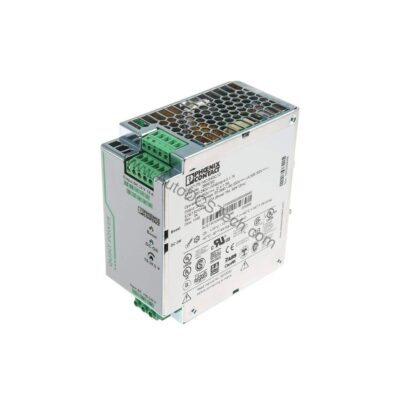

Reliable 24V DC Power for Critical Automation

Industrial control systems demand stable, clean DC power. The Phoenix Contact QUINT-PS-100-240AC/24DC/10 delivers exactly that. This 24V DC power supply provides 10A of continuous output current, making it a solid choice for PLCs, sensors, and actuators. Its robust design ensures dependable operation even in demanding environments.

Built for Real-World Industrial Demands

This power supply is engineered for universal use. Its wide-range input accepts 85-264V AC, simplifying installation across different regions. The QUINT POWER series is known for robust performance, and this model is no exception. It features a Power Boost reserve that easily handles high inrush currents from inductive loads. This prevents nuisance tripping and ensures reliable fuse operation.

Troubleshooting Common Issues

• No Output: Check input voltage and fuse. The internal fuse is slow-blow 6.3A.
• LED Flashing: Output voltage below 0.9 x UN. Reduce load or check input supply.
• Overheating: Ambient temperature above 60°C causes derating (2.5%/K). Improve ventilation or reduce load.
• Output Short Circuit: The unit is short-circuit proof. It limits current to approximately 15A and recovers automatically.
