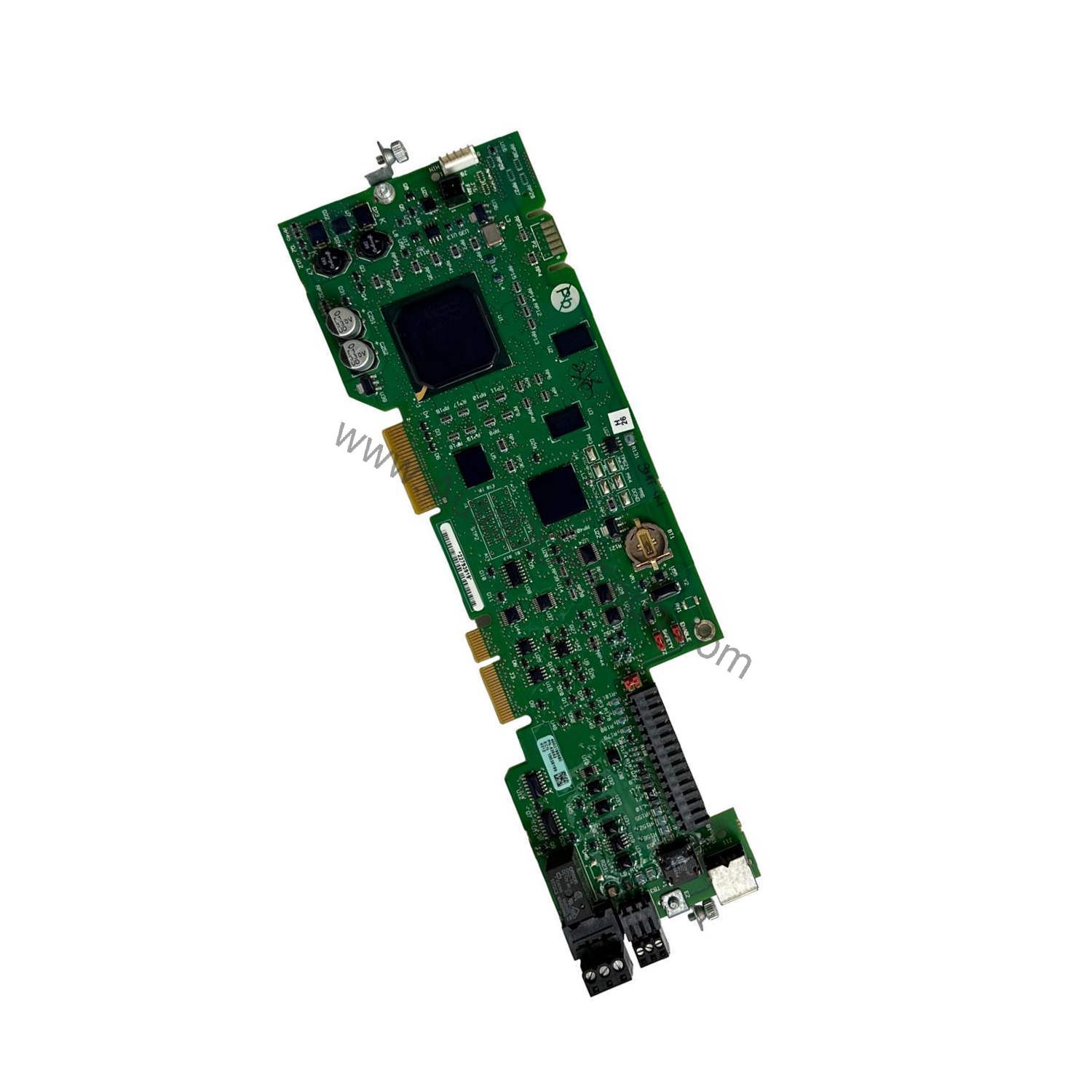

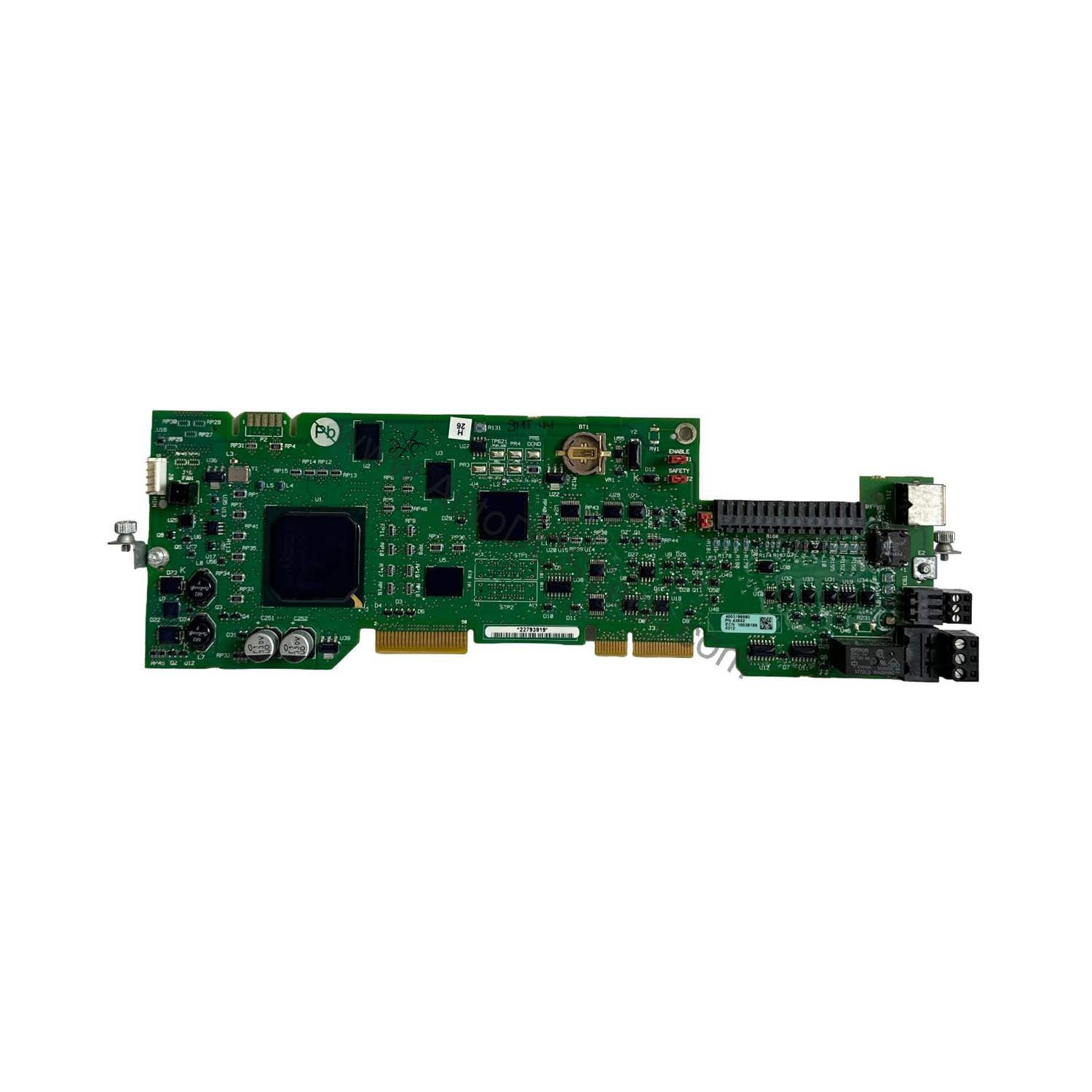

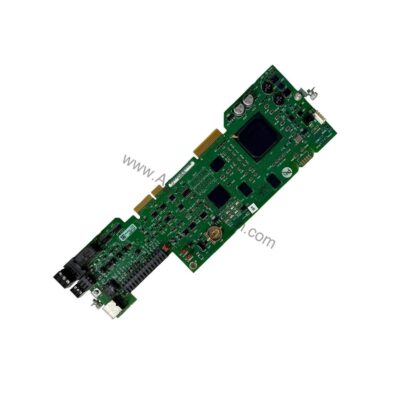

Allen-Bradley SK-R1-MCB1-PF753 Control Board for PowerFlex 753

Technical Specifications Breakdown

Key parameters for the SK-R1-MCB1-PF753 are listed below for quick reference:

Industry Applications: Where This Board Earns Its Keep

Pump and Fan Control in HVAC Systems

In commercial buildings, PowerFlex 753 drives regulate fans and pumps. When the control board fails, airflow and water circulation stop. Replacing the SK-R1-MCB1-PF753 restores variable speed control, keeping energy consumption low and comfort levels high.

Conveyor Systems in Manufacturing Plants

Conveyor lines rely on precise speed and torque control. The control board ensures the drive responds correctly to PLC commands. A failed board means jammed lines and missed production targets. Swapping in this genuine Allen-Bradley board minimizes downtime.

High-Altitude Installations

Facilities located above 2000 meters face reduced cooling efficiency. The board's rated altitude capability of up to 2000 m (6562 ft) ensures reliable operation in most industrial sites. For higher elevations, consult AutoDCSTech for guidance.

Installation & Setup Guidance

Before installation, confirm the drive is de-energized and locked out. Remove the control pod cover and carefully disconnect the existing board. Note the orientation of connectors and standoffs. Install the new board by aligning it with the mounting holes and gently pressing down until it seats properly. Reconnect all ribbon cables and wiring harnesses. Ensure the conformal coating is intact and free of damage. After reassembly, power up the drive and verify that the control board communicates with the HIM and any connected fieldbus adapters.

Maintenance & Reliability

Periodic inspection of the control board is recommended. Check for dust accumulation, which can insulate components and cause overheating. Use dry compressed air to clean the board if needed. Verify that the enclosure seals are intact to prevent moisture ingress. The conformal coating protects against humidity, but physical damage should be addressed immediately. Operating temperature should stay within -10 °C to 50 °C; ensure proper ventilation in the cabinet. Storage temperature range is wider, from -40 °C to 85 °C, so spare boards can be kept safely.

The Core Logic Behind PowerFlex 753 Performance

The Allen-Bradley SK-R1-MCB1-PF753 control electronics board is the central processing unit that governs drive operation. It is designed for frames 1 through 7 and voltage classes C, D, E, and F, making it a versatile replacement across multiple drive sizes.

This board is the brain of the drive, handling all control commands, monitoring feedback, and ensuring smooth motor operation. Without it, even the most powerful drive is just an inert assembly of power components.

Compatibility & Integration

The SK-R1-MCB1-PF753 is engineered specifically for PowerFlex 753 drives. It fits frames 1 through 7, covering voltage classes C, D, E, and F. This broad compatibility simplifies spare parts inventory—one board supports multiple drive sizes. The board mounts inside the drive control pod or a safety enclosure, protecting it from harsh factory environments. Always verify the exact frame and voltage class of your drive before ordering.

Selection Guide & Purchasing Advice

When ordering a replacement control board, confirm your drive's frame size and voltage class. The SK-R1-MCB1-PF753 is a genuine Allen-Bradley part, ensuring original performance and reliability. AutoDCSTech stocks this board and offers fast shipping. Contact our team if you need help verifying compatibility. We are an independent supplier of industrial automation parts, not an authorized distributor. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
