Product Overview

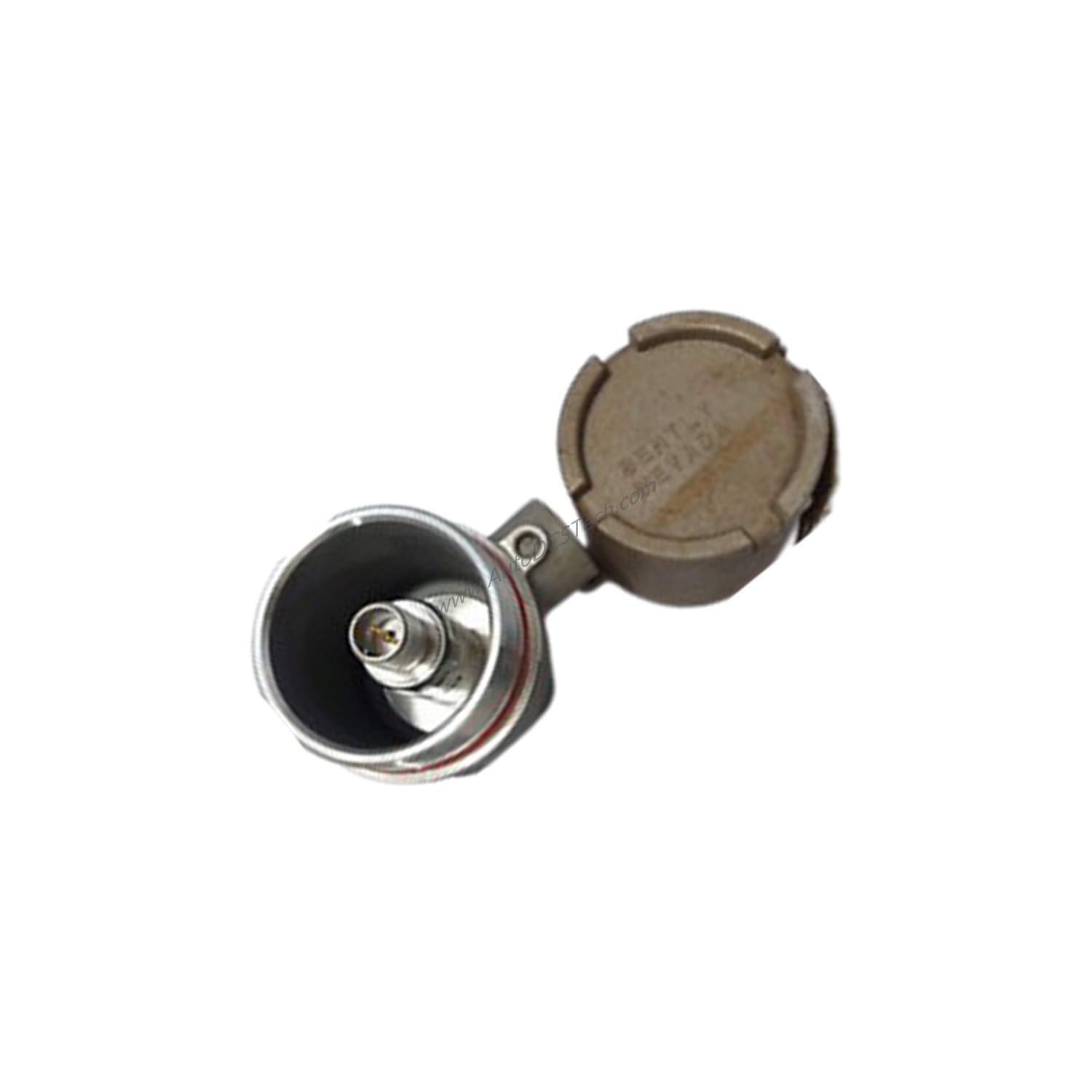

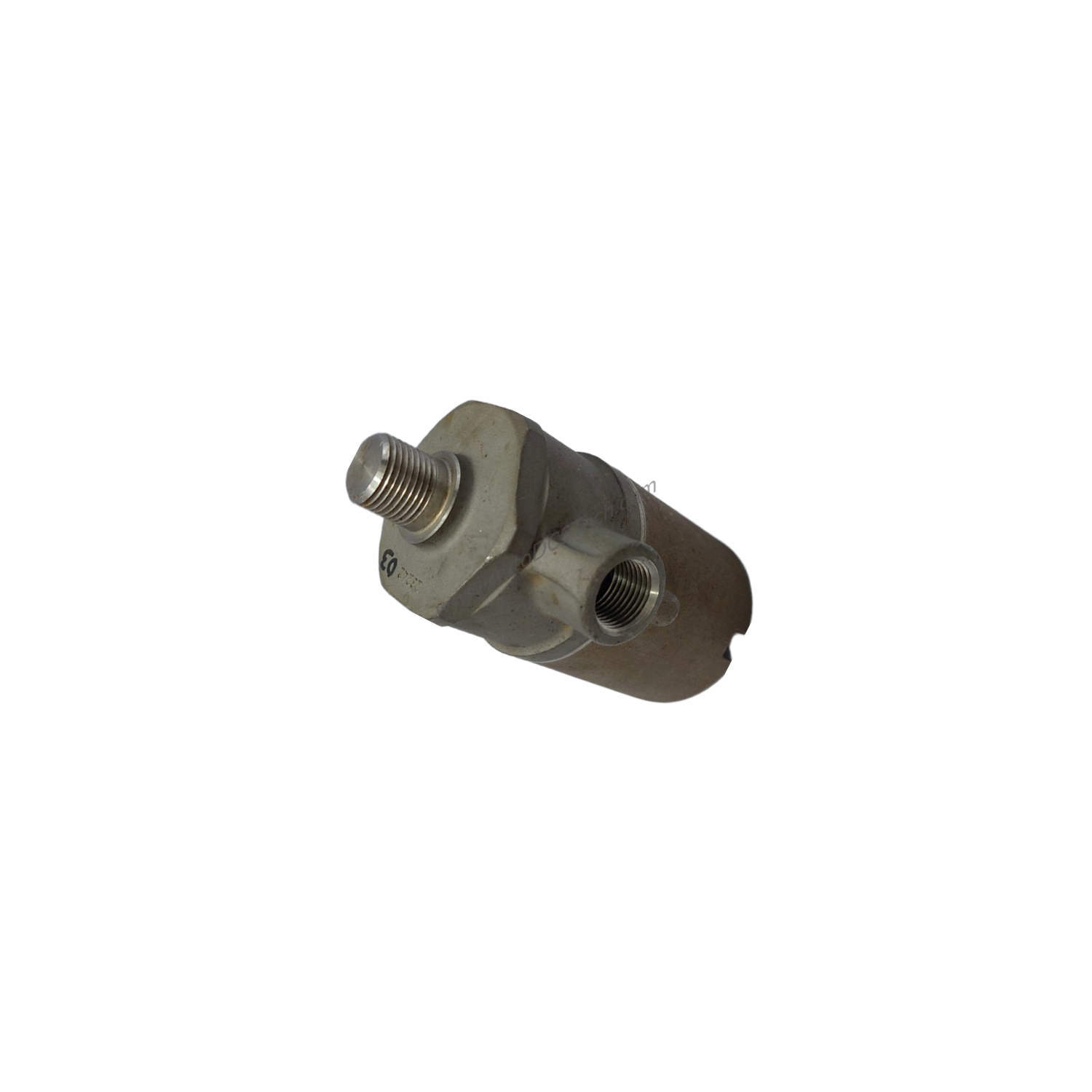

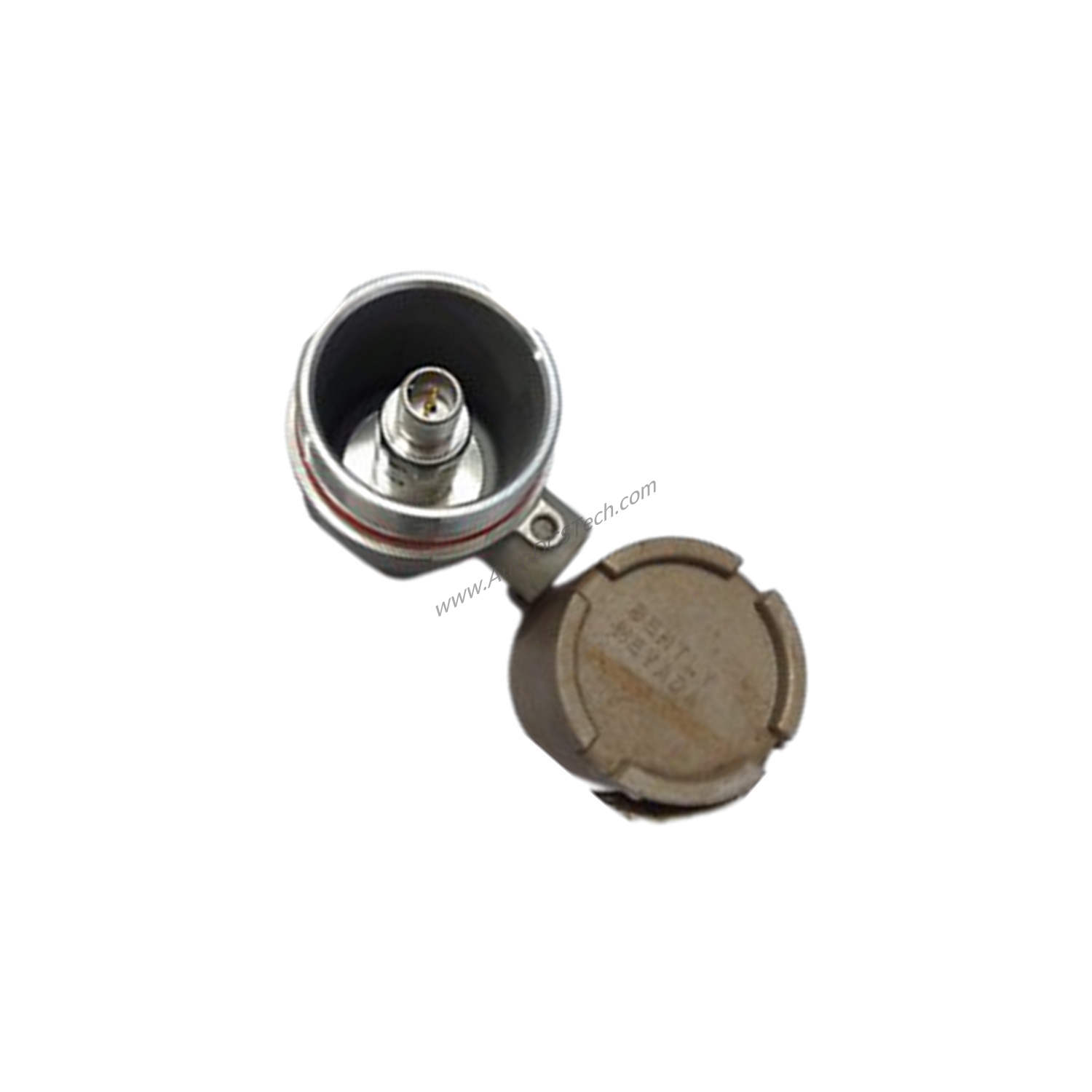

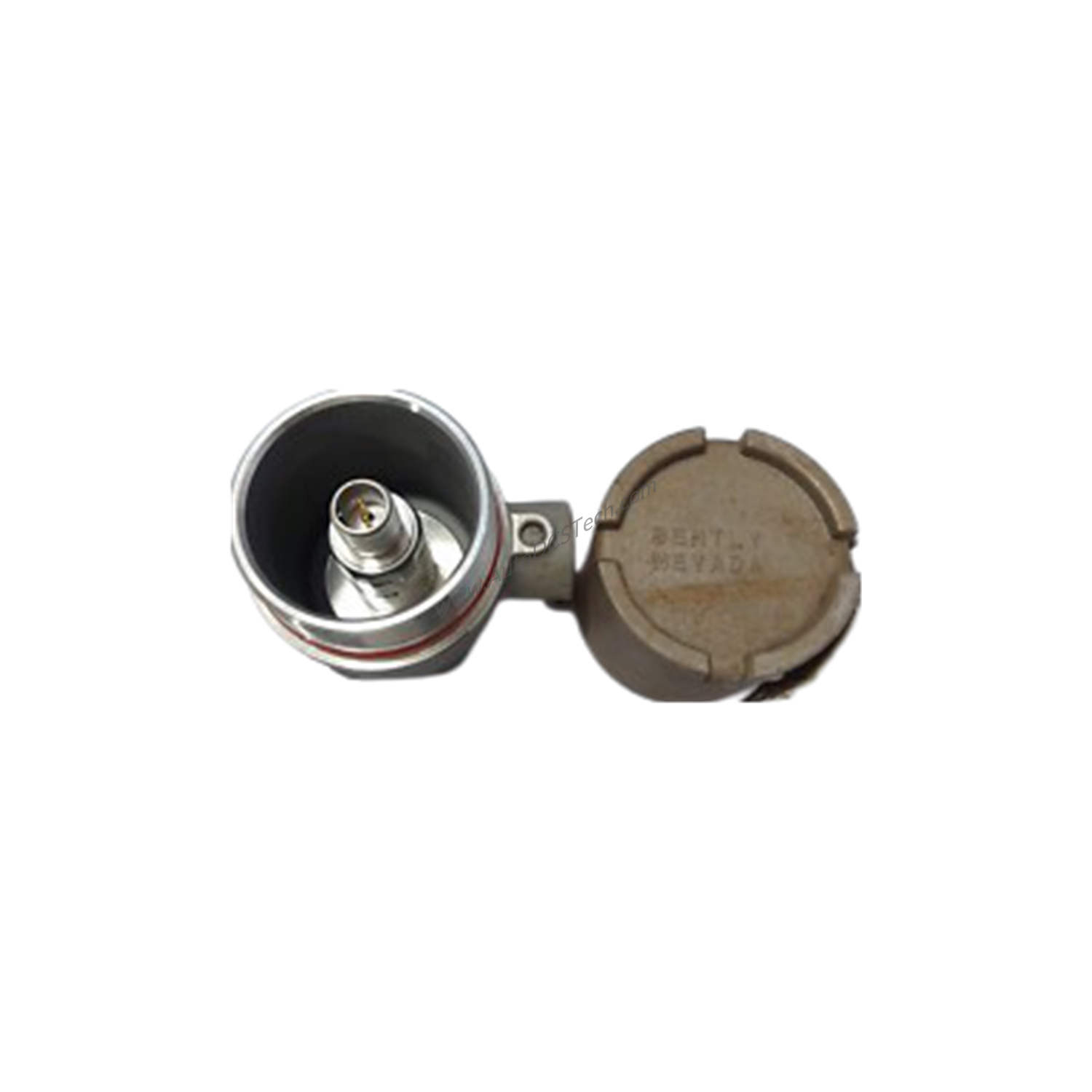

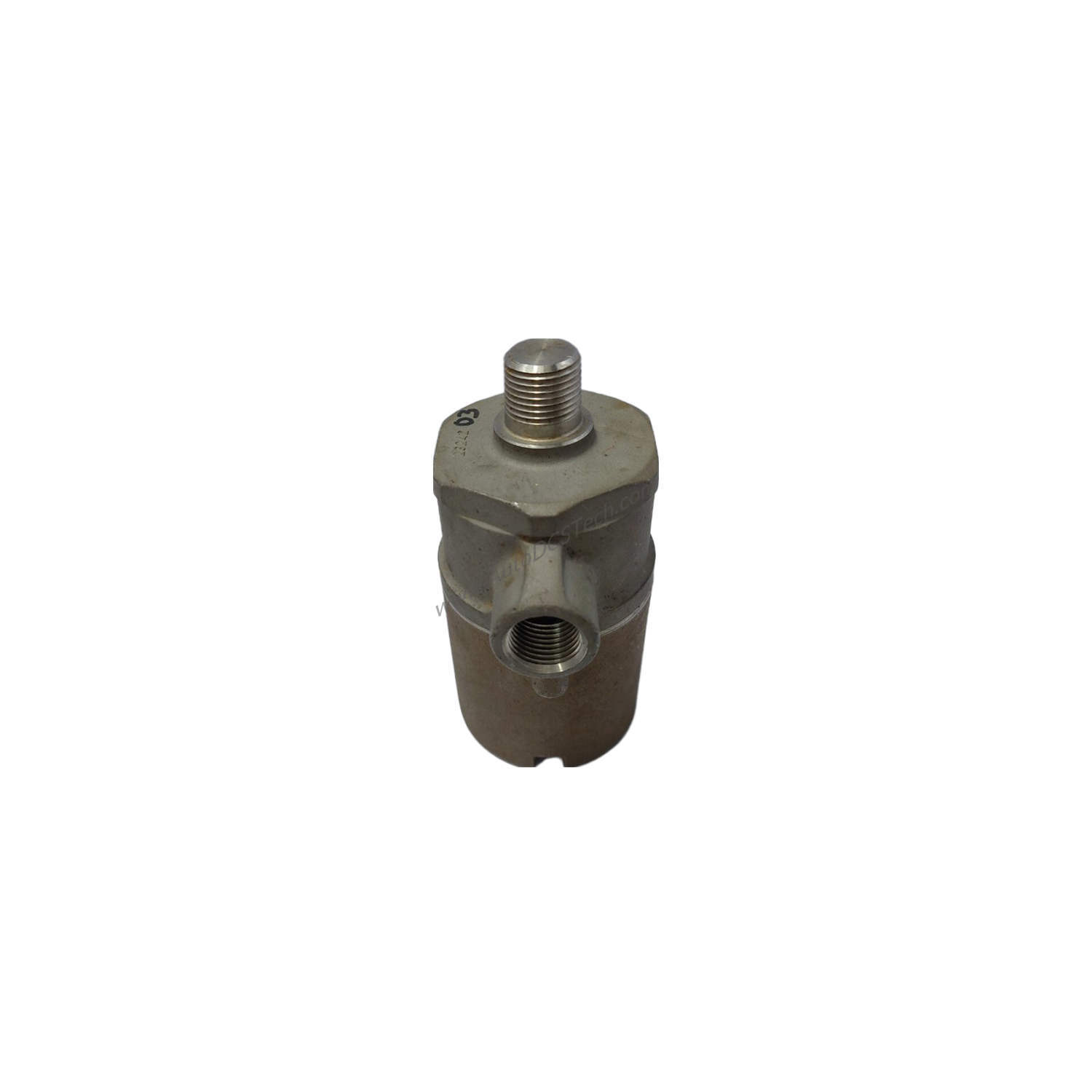

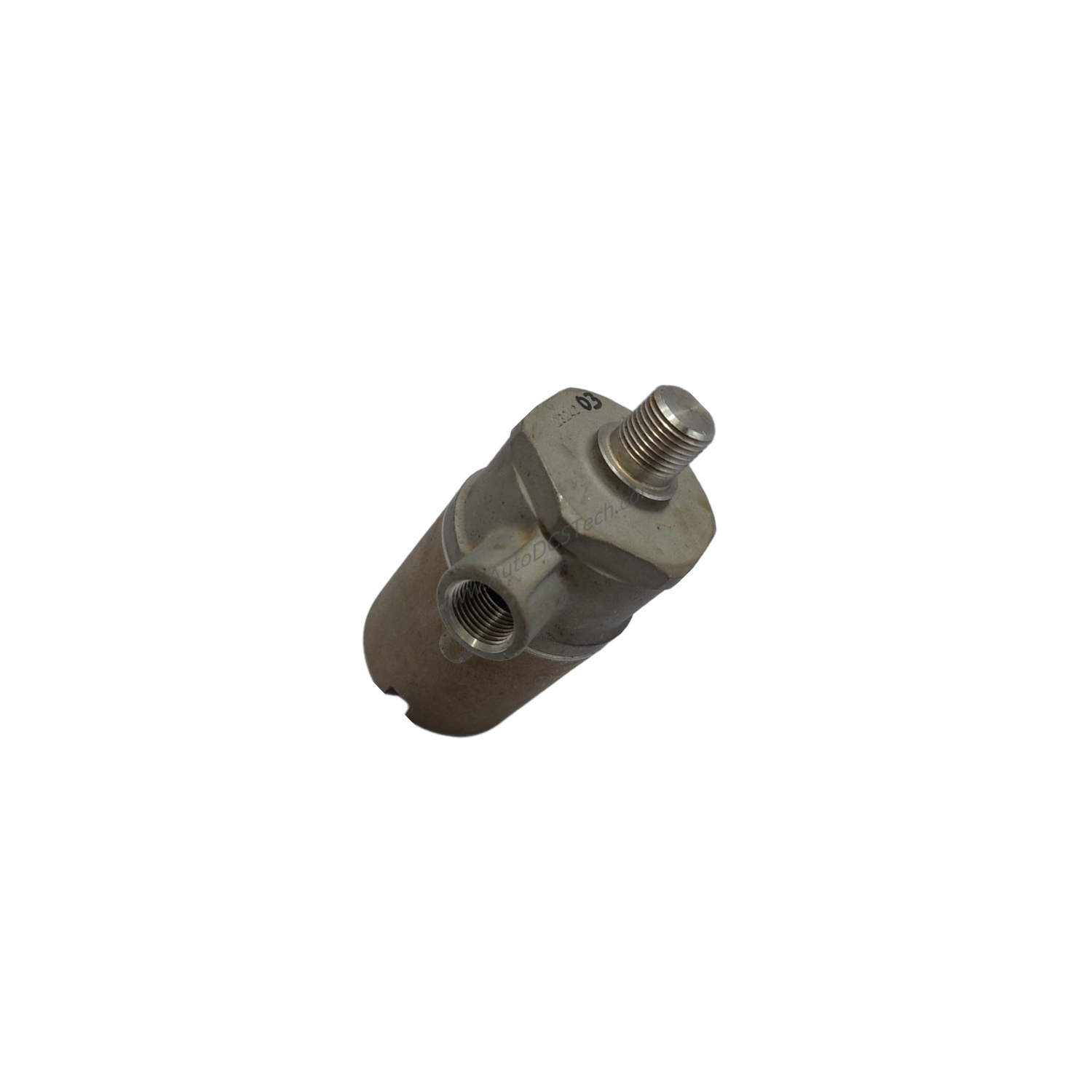

When monitoring critical machinery in hazardous environments, selecting the right vibration sensor housing is essential for both safety and reliability. The Bently Nevada 107770-03-01 velocity transducer housing offers a factory-integrated solution that combines the proven 330500 Velomitor sensor with a 21128 housing, preassembled and tested before shipment. This CENELEC-approved unit is specifically designed for use in Zone 1, Group IIC hazardous area applications, making it a trusted choice for oil and gas, petrochemical, and other heavy industries where explosive atmospheres are a concern.
Technical Specifications
The 107770-03-01 features a 1/2-14 NPT mounting thread option (code 03) and a 1/2-14 NPT cable exit fitting plug (code 01). These standardized connections simplify installation into existing equipment ports and conduit systems. The unit is rated for CENELEC Zone 1, Group IIC hazardous areas, ensuring compliance with stringent European safety standards. Additionally, it meets RoHS Directive 2011/65/EU, confirming the absence of restricted hazardous substances in its construction. For ATEX/IECEx applications, the equipment must be connected to devices meeting the listed entity parameters, and cables must comply with EN 60079-25 type A or B requirements.
Industry Applications
In refinery compressor trains, the Bently Nevada 107770-03-01 provides reliable vibration measurement in areas where flammable gases may be present. Its CENELEC Zone 1, Group IIC rating allows installation directly in the hazardous zone, eliminating the need for additional isolation barriers. Similarly, in offshore production platforms, this transducer housing withstands harsh marine conditions while delivering accurate velocity data for predictive maintenance programs. The factory-sealed design reduces field assembly errors and speeds up commissioning.
Installation & Setup Guidance
Mount the 107770-03-01 using the 1/2-14 NPT thread into a compatible sensor port. Ensure the mating surface is clean and free of debris to maintain a proper seal. For cable connections, use the supplied 1/2-14 NPT plug or attach appropriate conduit fittings. In Zone 0/1 installations, verify that the connected equipment meets the entity parameters specified in the product documentation. For Zone 2 installations, confirm that supply electrical parameters do not exceed the values listed in the tables. Always follow the manufacturer's installation manual and local electrical codes.
Maintenance & Reliability
The sealed housing design of the 107770-03-01 minimizes exposure to contaminants, reducing the need for frequent maintenance. Periodically inspect the cable entry and mounting threads for signs of corrosion or damage. In hazardous areas, follow the conditions of safe use outlined in the ATEX/IECEx documentation. Because the unit is factory-assembled, there are no field-adjustable components, which enhances long-term reliability. SpareTechPLC recommends verifying the integrity of the cable and connections during routine equipment inspections.
Compatibility & Integration
This velocity transducer housing is designed to work with Bently Nevada monitoring systems that accept velocity sensor inputs. The 1/2-14 NPT mounting and cable exit fittings ensure compatibility with standard industrial conduit and sensor mounting hardware. For systems requiring CENELEC-approved components, the 107770-03-01 integrates seamlessly into existing safety architectures. Always confirm that the monitoring system's input parameters match the sensor's output specifications before installation.
Selection Guide & Purchasing Advice
Before ordering the 107770-03-01, verify that your application requires a CENELEC Zone 1, Group IIC rated housing. Confirm that the mounting thread (1/2-14 NPT) matches your equipment's sensor port. If your installation uses different cable entry requirements, contact SpareTechPLC for compatible accessories. As a factory-new unit with original packaging and a 12-month warranty, this transducer housing delivers immediate reliability. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
