Product Overview

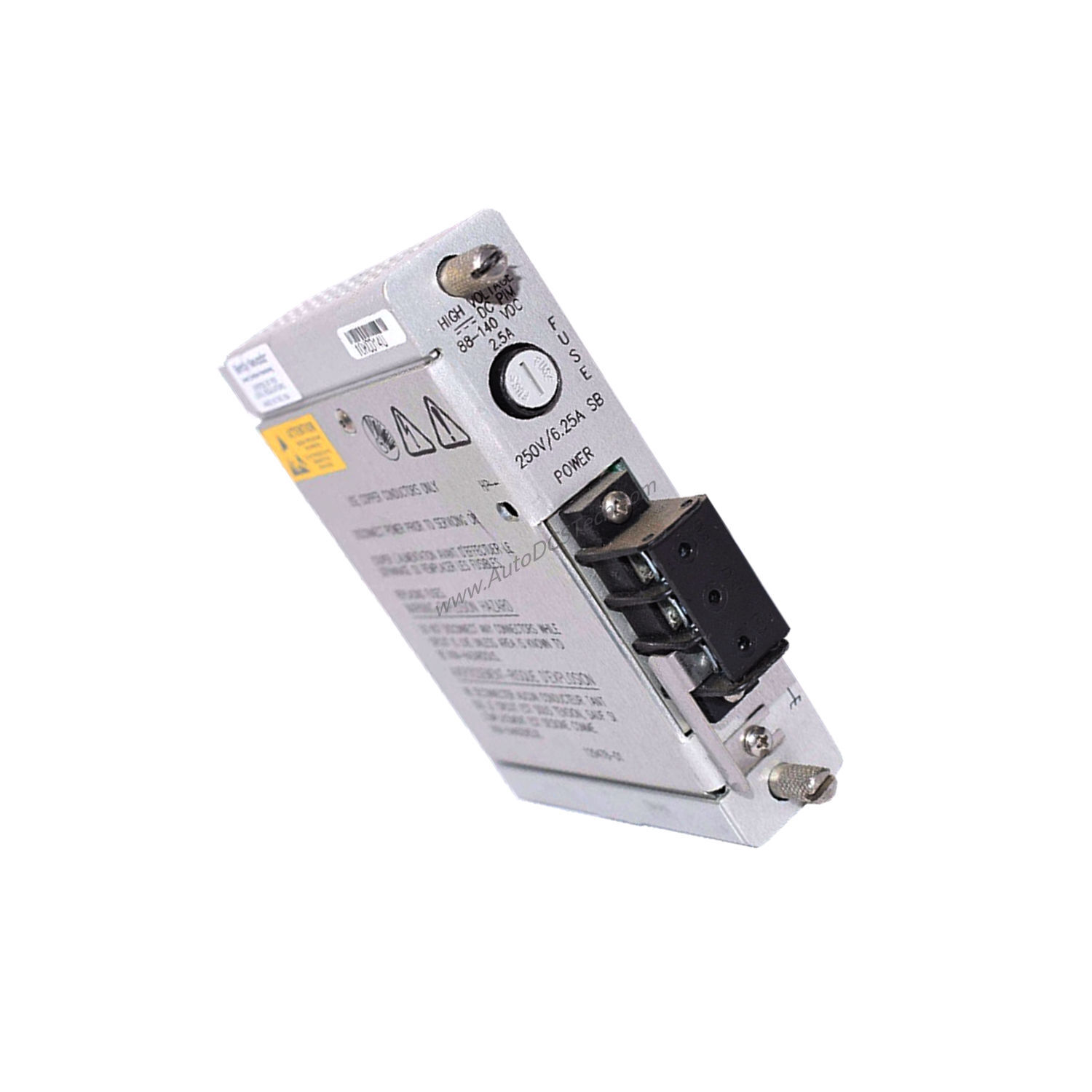

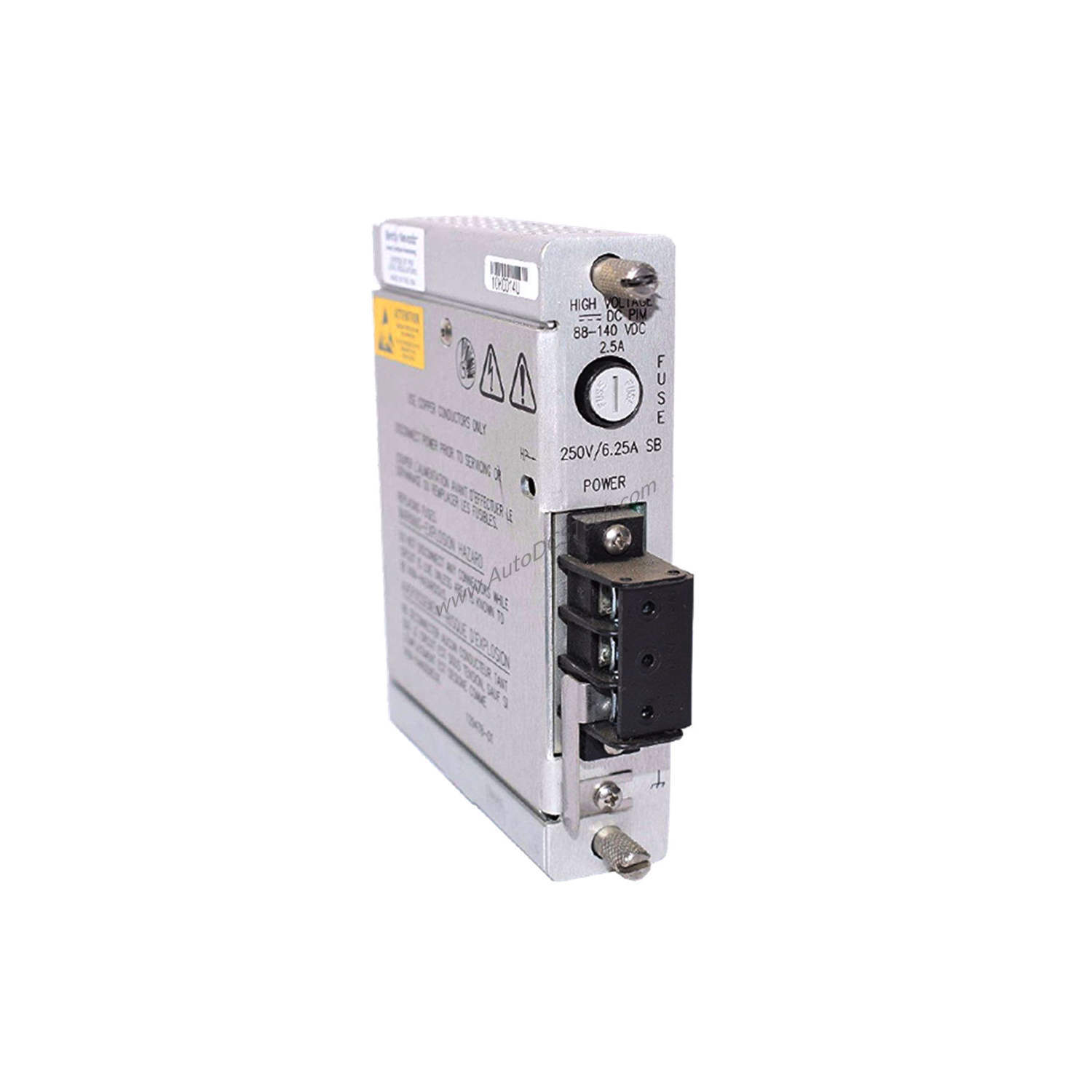

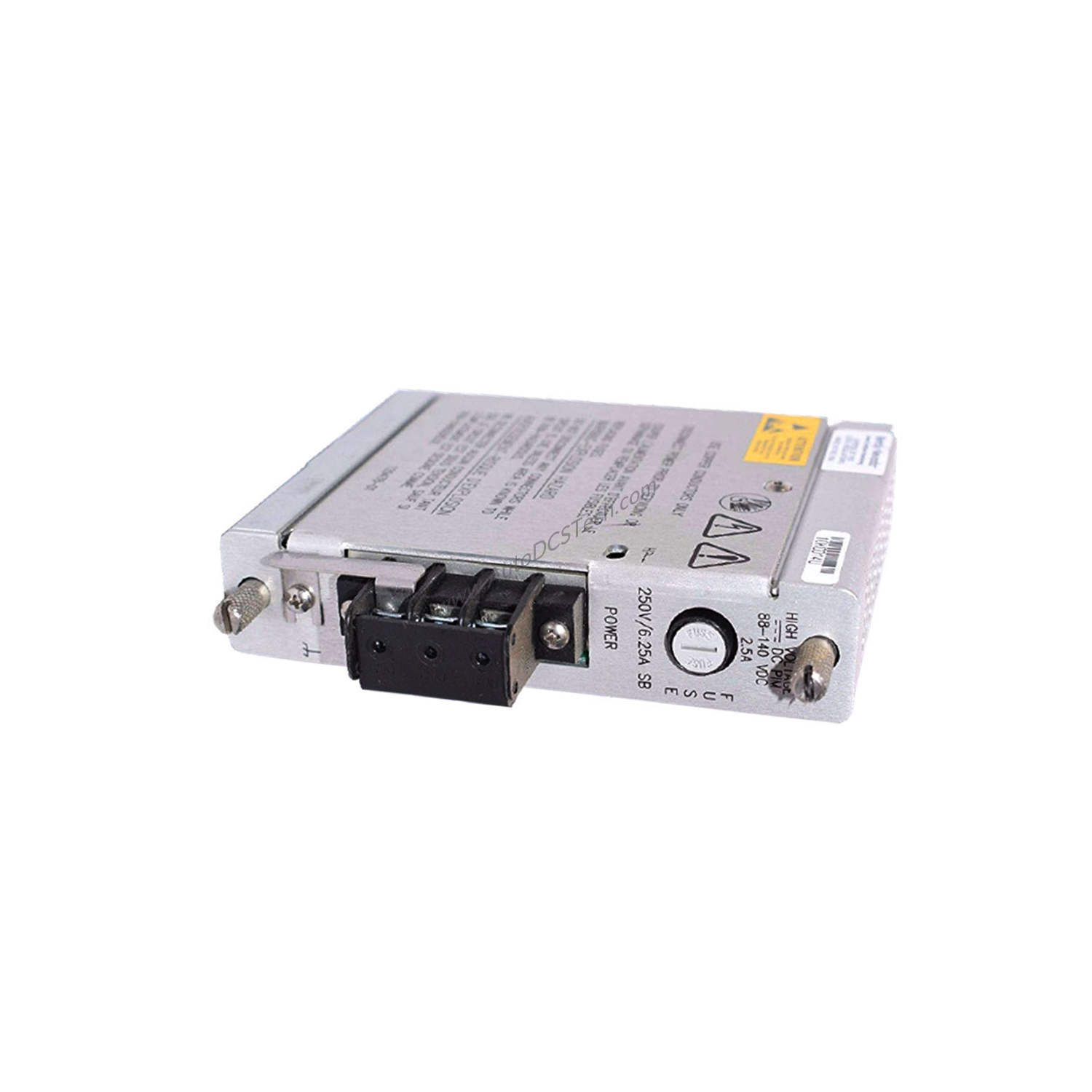

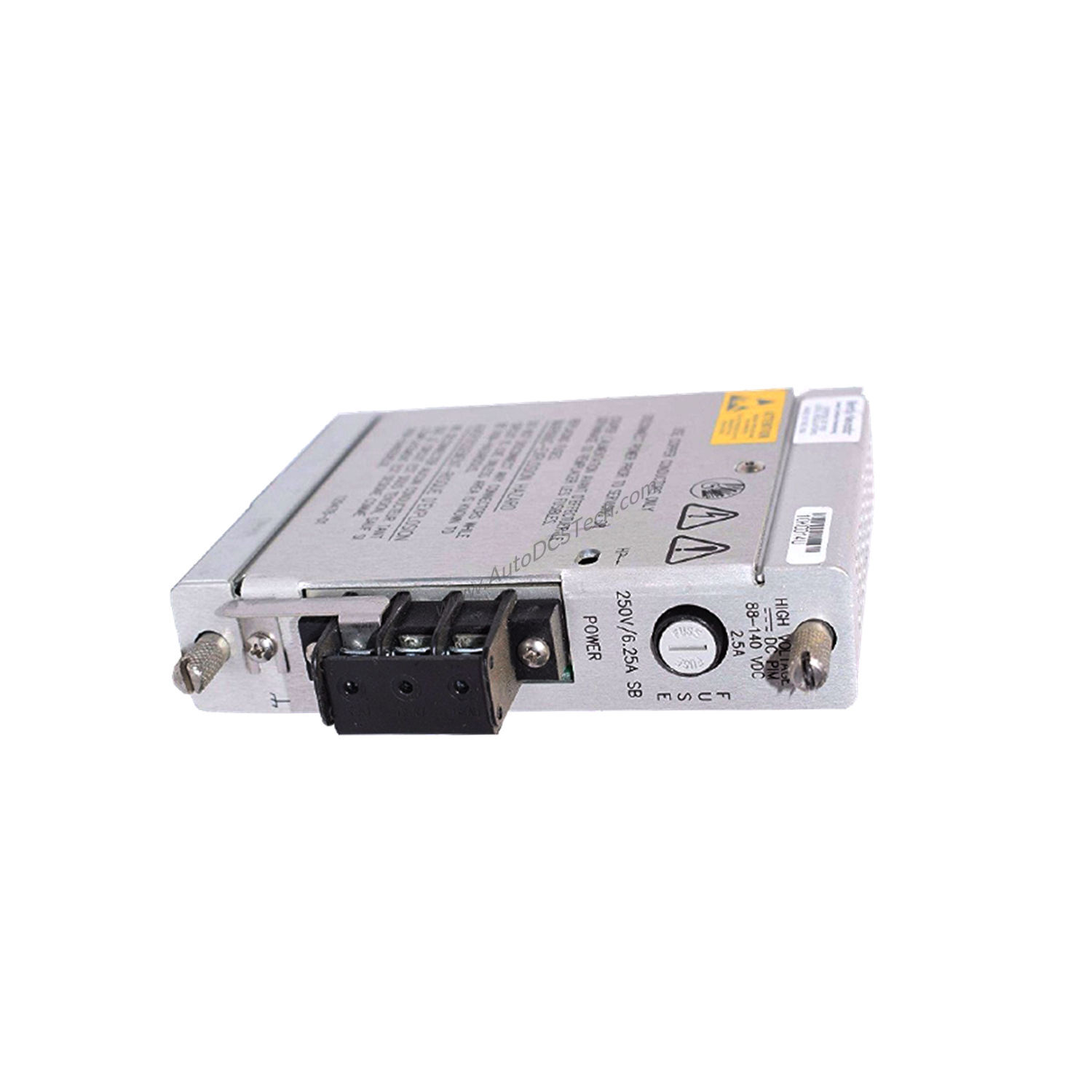

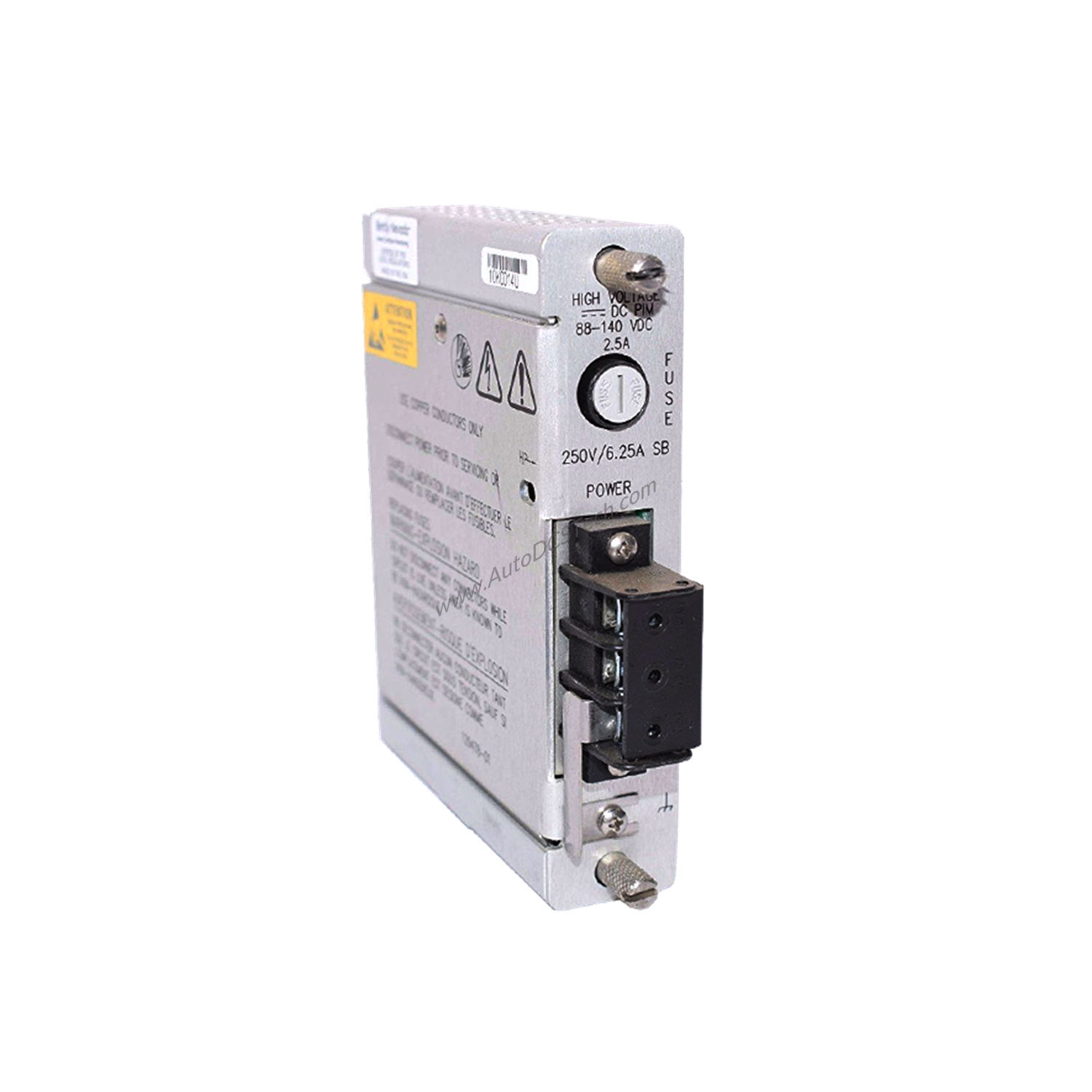

When high-voltage DC power input reliability is critical for your machinery protection system, the Bently Nevada 129478-01 Legacy High Voltage DC Power Input Module delivers consistent performance. This module, part of the 3500 series, accepts 88 to 140 Vdc input and provides a maximum full rack current draw of 2.5 A. Its robust design minimizes downtime and reduces total cost of ownership by preventing power-related failures.
Technical Specifications Breakdown
The 129478-01 operates with an input voltage range of 88 to 140 Vdc, ensuring compatibility with common industrial DC supplies. The full rack current draw is 2.5 A maximum, which keeps energy consumption low and supports cost-efficient operation. Physical dimensions are 120.7 mm x 25.4 mm x 114.3 mm (4.75 in x 1.0 in x 4.5 in), and the module weighs 0.34 kg (0.75 lb), making it compact and easy to integrate. Operating temperature spans -30 °C to +65 °C (-22 °F to +150 °F), with storage from -40 °C to +85 °C (-40 °F to +185 °F), ensuring durability in harsh environments.
Industry Applications
This power input module is ideal for turbine, compressor, and pump monitoring systems where stable DC power is essential. In a refinery, for example, the 129478-01 ensures uninterrupted operation of vibration monitoring racks, preventing costly unplanned shutdowns. Its wide temperature range also suits outdoor installations in remote pipeline stations, reducing the need for climate-controlled enclosures and lowering infrastructure costs.
Installation & Setup Guidance
Mount the 129478-01 in two half-height slots on the left side of the rack. Each slot holds one power supply, and both can be populated for redundancy. No minimum rack load is required, simplifying initial configuration. Ensure input voltage stays within 88 to 140 Vdc to avoid fuse opening from over-voltage. Use proper wiring practices to maintain reliable connections.
Maintenance & Reliability
Periodically inspect the front panel Supply OK LED to verify proper operation. The module handles under-voltage without damage, but over-voltage will open the internal fuse—a cost-saving design that protects downstream components. Operating within the -30 °C to +65 °C range and below 95% non-condensing humidity extends service life and reduces replacement frequency.
Compatibility & Integration
The 129478-01 integrates seamlessly with Bently Nevada 3500 series racks. It works with the High Voltage DC Power Supply and other PIM options. For redundant setups, install two power supplies in the two dedicated half-height slots. This compatibility allows easy upgrades without major system redesign.
Selection Guide & Purchasing Advice
Before purchasing, verify your rack's power requirements and ensure the input voltage matches your facility's DC supply (88-140 Vdc). The 129478-01 is a legacy module; please verify current lifecycle status and availability with SpareTechPLC before ordering. SpareTechPLC offers genuine Bently Nevada parts with fast shipping to minimize downtime.
Troubleshooting & Common Issues
If the Supply OK LED is off, check the input voltage is within 88-140 Vdc. An over-voltage condition will blow the internal fuse, requiring module replacement. Under-voltage does not harm the module, so temporary dips are safe. Ensure the module is seated correctly in the rack slots to avoid intermittent power loss.
Frequently Asked Questions
Q: What is the input voltage range for the 129478-01?
A: The input voltage range is 88 to 140 Vdc.
Q: Can I use two 129478-01 modules for redundancy?
A: Yes, the rack has two half-height slots for power supplies, allowing redundant configurations.
Q: What happens if the input voltage exceeds 140 Vdc?
A: Over-voltage causes the fuse to open on the PIM, protecting the system.
Q: What is the maximum current draw of this module?
A: The full rack current draw is 2.5 A maximum.
Q: What is the operating temperature range?
A: It operates from -30 °C to +65 °C.
