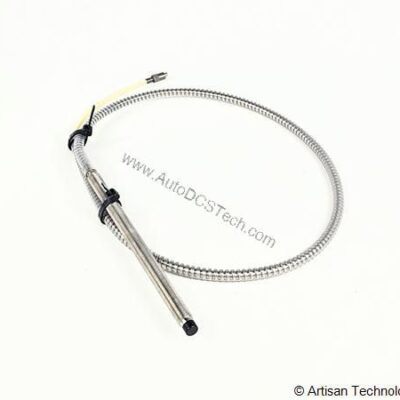

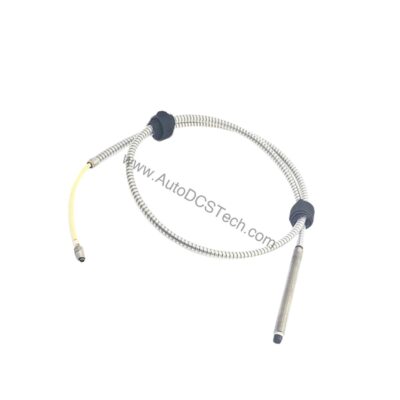

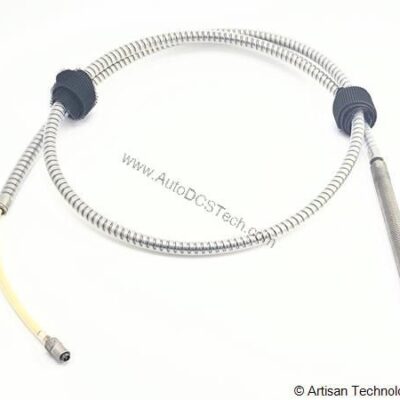

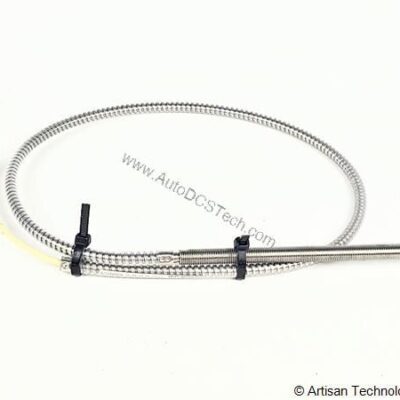

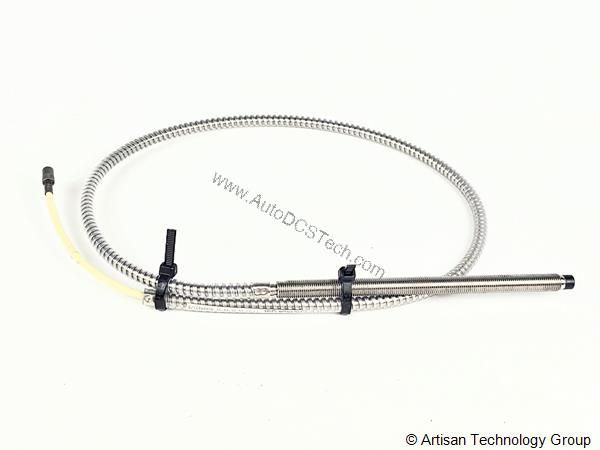

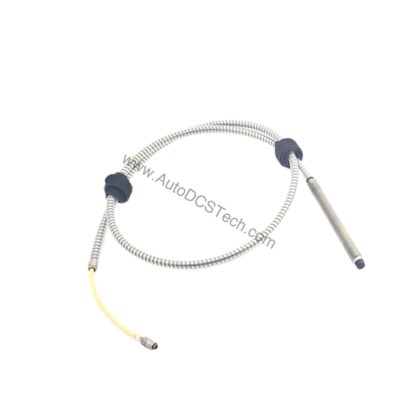

21505-00-32-10-02: 8 mm Probe Proximity Vibration Sensor
The 21505-00-32-10-02 is the 8 mm Probe Proximity Vibration Sensor covered on this page. The attribute that decides whether it fits the existing installation without modification is 3.2 in.
This configuration's 8 mm probe proximity vibration sensor is the attribute that drives the replacement decision. In a machine protection or condition-monitoring installation 8 mm probe proximity vibration sensor is the attribute that decides whether the sensor reaches the target and reads it on the correct gap. A probe or transducer specified to the wrong case length, thread or sensitivity either cannot reach the measured surface or returns vibration values that do not line up with the rest of the train. Confirming 3.2 in against the existing mount is therefore the first check before a replacement, not an afterthought.
Configuration From the Published Data
This unit is documented as a 8 mm Probe Proximity Vibration Sensor. The configuration carried in the order code is: Unthreaded Length: 0 mm; Overall Case Length: 3.2 in; Total Length: 1.0 metre (39 inches) Tolerance: +.25 metre,-.10 metre; Connector: Miniature male coaxial. These are the figures to confirm against the existing mount and monitor before ordering a replacement.
| Feature | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Brand | Bently Nevada |
| Part Number | 21505-00-32-10-02 |
| Part Number | 21505-00-32-10-02 |
| Model | 21505 7200 Proximity Transducer Systems |
| Tip Diameter | 8 mm |
| Configuration Type Threads | 3/8-24 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 3.2 in |
| Total Length | 1.0 metre (39 inches) Tolerance: +.25 metre,-.10 metre |
| Connector | Miniature male coaxial |
| Lead Armor | Stainless steel |
| Power | -17.5 Vde to -26 Vdc at 12 mA max |
| Calibrated Range | 80 mils (2.0 mm) |
| Scale Factor | 200 mV/mil (7.87 V/mm) |
| Frequency Response | 0 to 10 kHz |
| Temperature Sensitivity | -396 change at +150°F |
| Operating Temperature (Proximitor) | -60°F to +212°F |
| Operating Temperature (Probe/Cable) | -30°F to +350°F |
| Relative Humidity | To 95% noncondensing |
| Corrosion Resistance | Air, water, lube oil, ammonium hydroxide, sulfuric acid (10%), MEK, DMF |
| System Weight | 1.3 lbs. (0.59 kg) |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| bently-nevada-21505-00-32-90-02-8-mm-proximity-probe-for-vibration-monitori | confirm the configuration against your installation |
