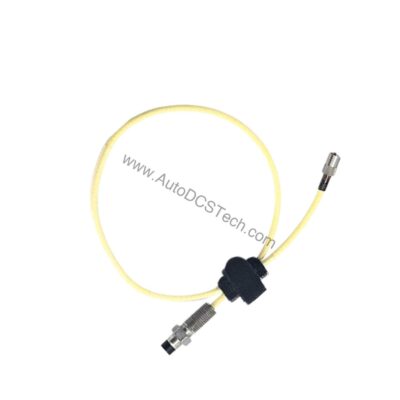

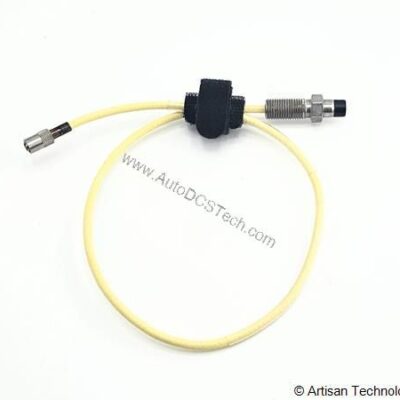

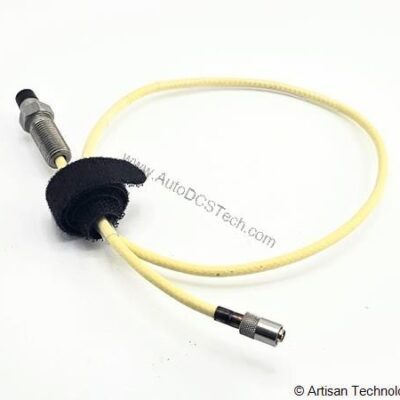

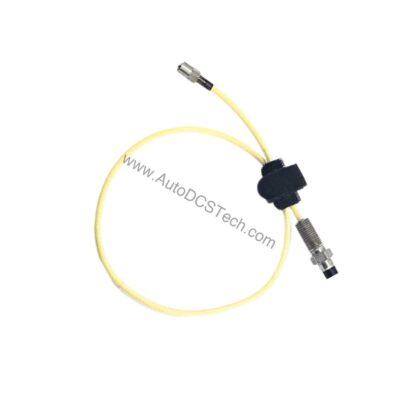

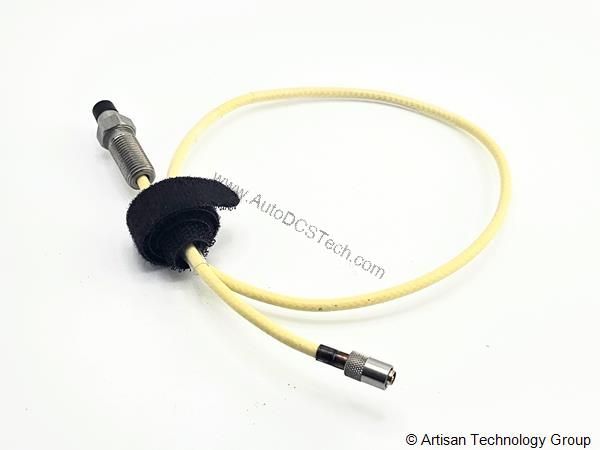

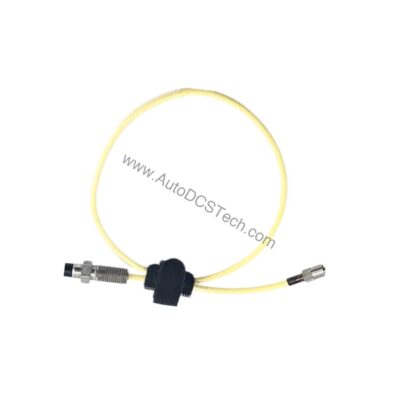

21508-02-12-05-02: Proximity Probe Vibration Sensor
The 21508-02-12-05-02 is the Proximity Probe Vibration Sensor covered on this page. The attribute that decides whether it fits the existing installation without modification is 0.5 metre (20 inches).
On this unit proximity probe vibration sensor is the figure that decides fit and function. In a machine protection or condition-monitoring installation proximity probe vibration sensor is the attribute that decides whether the sensor reaches the target and reads it on the correct gap. A probe or transducer specified to the wrong case length, thread or sensitivity either cannot reach the measured surface or returns vibration values that do not line up with the rest of the train. Confirming 0.5 metre (20 inches) against the existing mount is therefore the first check before a replacement, not an afterthought.
Configuration From the Published Data
This unit is documented as a Proximity Probe Vibration Sensor. The configuration carried in the order code is: Threads: 3/8-24; Total Length: 0.5 metre (20 inches); Connector: Miniature male coaxial. These are the figures to confirm against the existing mount and monitor before ordering a replacement.
| Feature | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Brand | Bently Nevada |
| Part Number | 21508-02-12-05-02 |
| Probe Diameter | 8 mm |
| Total Length | 0.5 metre (20 inches) |
| Connector | Miniature male coaxial |
| Threads | 3/8-24 |
| Calibrated Range | 80 mils (2.0 mm) |
| Scale Factor | 200 mV/mil (7.87 V/mm) |
| Frequency Response | 0 to 10 kHz |
| Power | -17.5 Vdc to -26 Vdc at 12 mA |
| Weight | 1.3 lbs (0.59 kg) |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| bently-nevada-21508-02-12-10-02-8-mm-proximity-probe-vibration-transducer | confirm the configuration against your installation |
| bently-nevada-21508-02-12-50-02-proximity-probe-vibration-sensor | confirm the configuration against your installation |
| bently-nevada-21508-02-12-90-02-8-mm-proximity-probe-vibration-sensor | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | 21508-02-12-05-02 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
