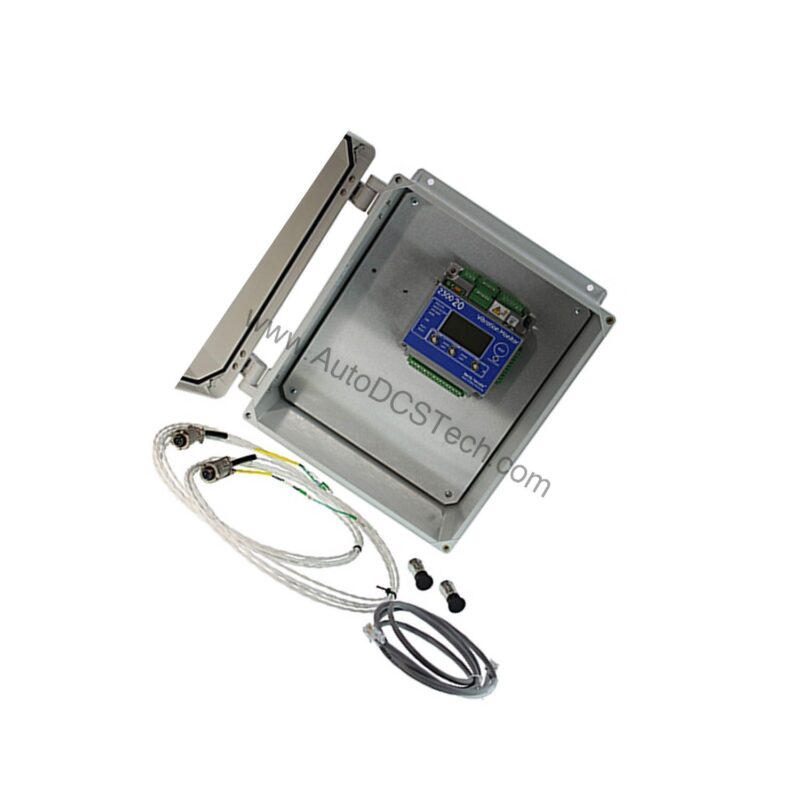

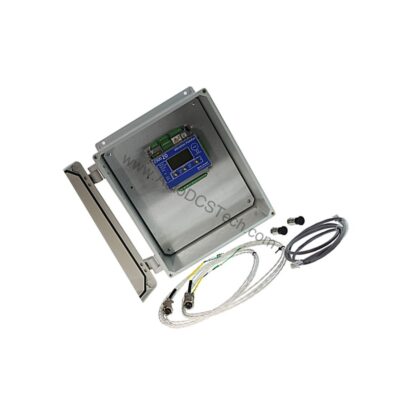

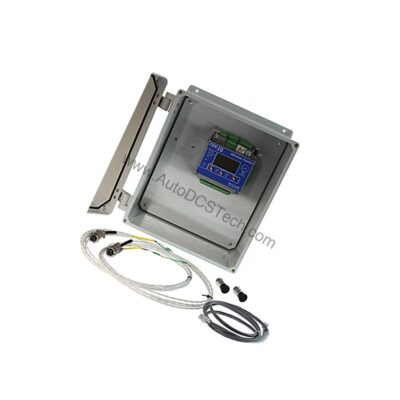

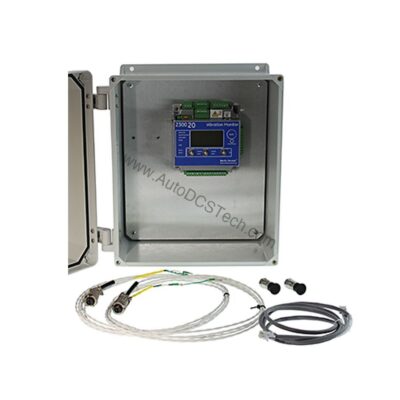

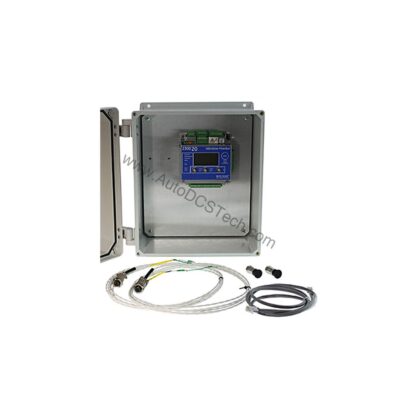

Bently Nevada 2300/20_KIT-003-00 Condition Monitoring System Kit

The kit includes one 2300/20 monitor, two AM3100T2-Z2 accelerometer sensors, two 12 ft. (3.6 m) cables (9571), and a 6 ft. (1.8 m) shielded Ethernet cable. Keyphasor sensor and 24 Vdc power supply are excluded. **Q2: What is the operating temperature range for this kit?** A: The operating temperature is -30°C to +65°C (-22°F to +149°F). Storage temperature is -40°C to +85°C (-40°F to +185°F). **Q3: How do I connect the 2300/20 monitor to a network?** A: Use the provided shielded Ethernet cable with an RJ-45 connector. The Ethernet port supports 10Base-T and 100Base-TX, conforming to IEEE802.3. Maximum cable length is 100 meters (328 ft.). **Q4: Can the 4-20 mA outputs be used with an external power supply?** A: No, the two 4-20 mA outputs will not work with an external powered loop. They have internal current loop power supply with voltage compliance of 0 to +12 Vdc across load. **Q5: What is the vibration limitation for the monitor?** A: The vibration limitation is 3 g.
