Bently Nevada 2300/25_KIT-001-00 Condition Monitoring System Kit

Technical Specifications Breakdown

Key parameters for the 2300/25_KIT-001-00 are listed below for quick reference:

Industry Applications for Predictive Maintenance

The configurable bandpass filter (0.2 Hz to 20 kHz) and scale factor range (5 to 1000 mV/g) allow precise vibration analysis across diverse equipment. The inclusion of two accelerometers enables simultaneous measurement at critical bearing points, reducing unplanned downtime.

Installation and Setup Guidance

Mount the housing using the included panel or DIN rail adapter. Connect the 24 Vdc power supply (not included) to the DC input terminals (18~36 Vdc). Attach the shielded Ethernet cable (6 ft/1.8 m) to an RJ-45 port for communication with System 1 software. Install the accelerometer sensors using the 17 ft (5.2 m) cables, ensuring proper cable routing to avoid noise interference.

Maintenance and Reliability

Periodically inspect the housing seals and cable connections for wear. The monitor's OK LED indicates proper operation. Store the unit within -40°C to +85°C when not in use. The real-time clock battery lasts 38 years powered at 50°C, supporting long-term data integrity.

Comprehensive Condition Monitoring Solution

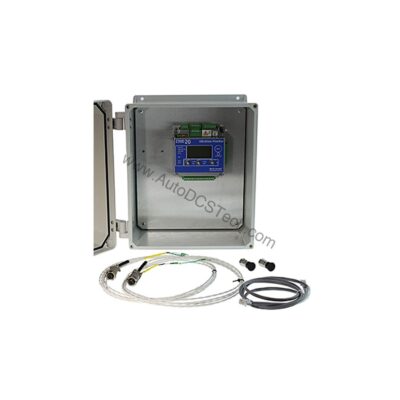

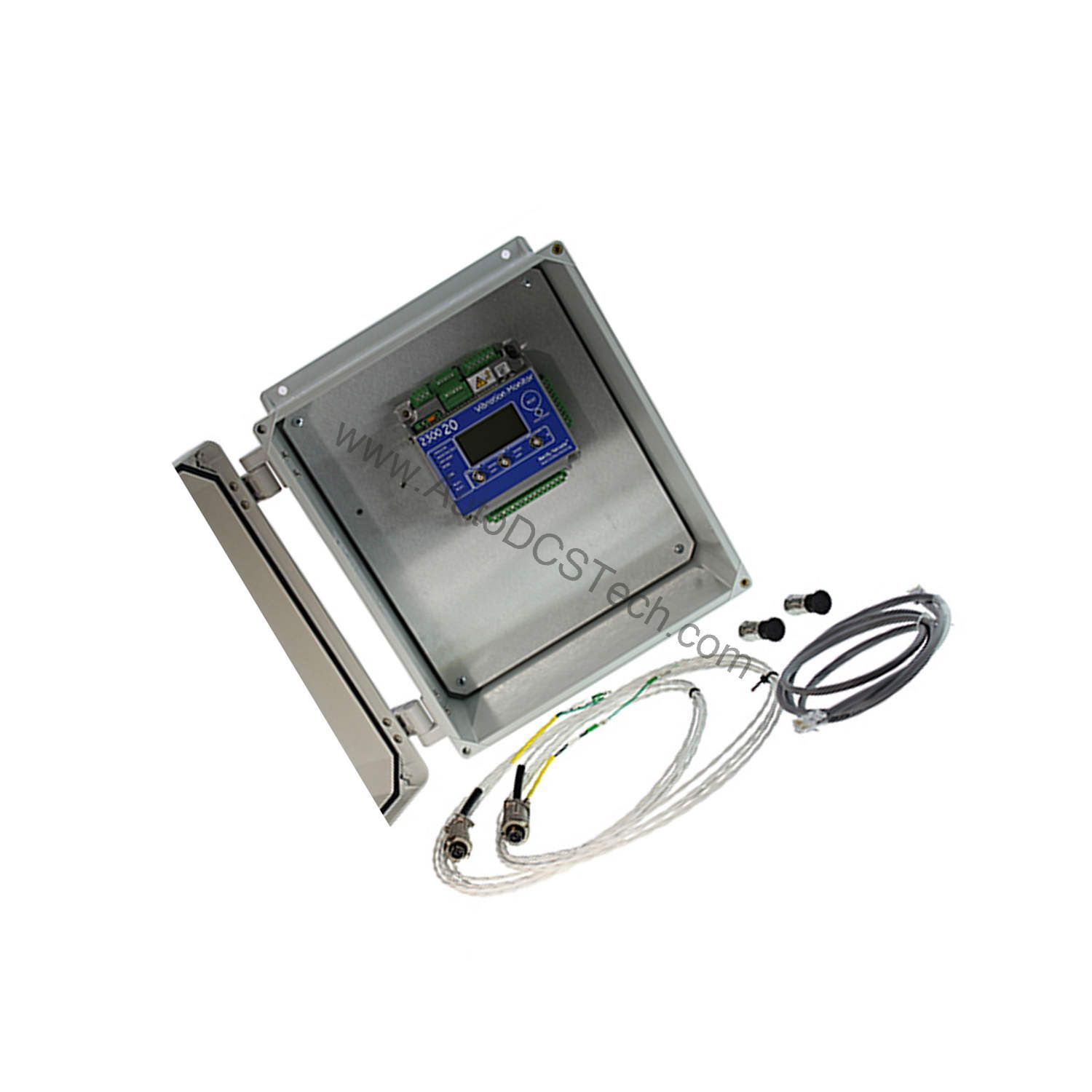

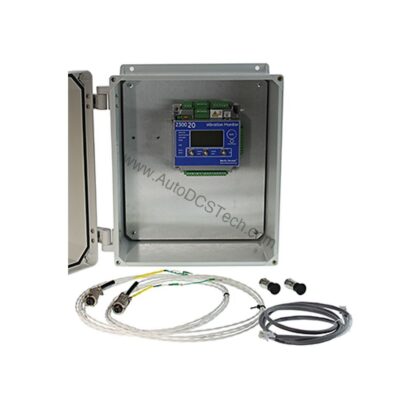

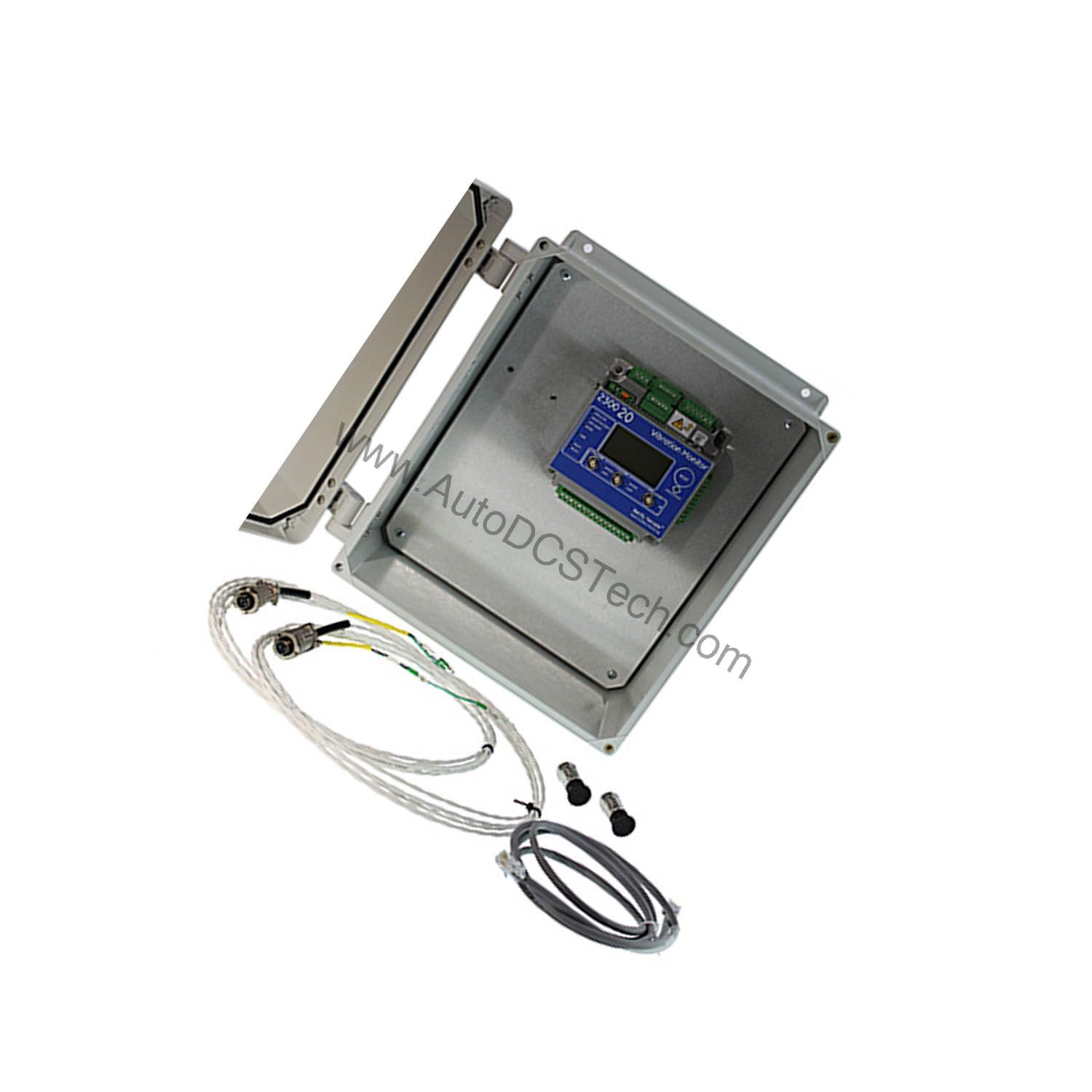

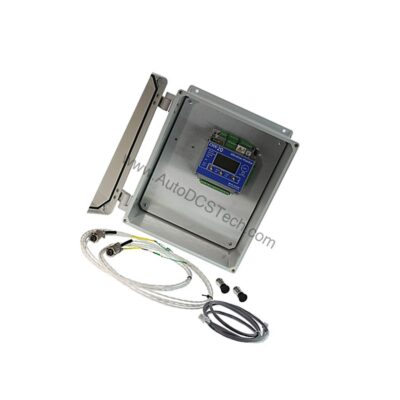

The Bently Nevada 2300/25_KIT-001-00 is a complete condition monitoring system kit designed for industrial machinery protection and predictive maintenance. This kit integrates a 2300/25 monitor with two accelerometer sensors (200350) and a choice of fiberglass or stainless steel housing, providing a ready-to-deploy solution for vibration and process variable monitoring.

Compatibility and Integration

The 2300/25_KIT-001-00 communicates via Ethernet (10Base-T/100Base-TX) and integrates with Bently Nevada System 1 software for data analysis and alarm management. It supports Bently transducers and custom 2/3-wire transducers for accelerometers, Velomitors, and Proximitors. The module includes three buffered outputs (two vibration, one speed) via BNC connectors.

Selection Guide and Purchasing Advice

When evaluating this kit, consider your hazardous area requirements: choose the 105M6193-01 fiberglass housing for nonhazardous areas or the 105M6193-03 stainless steel housing for hazardous locations. The kit excludes the Keyphasor sensor and 24 Vdc power supply. Contact AutoDCSTech for lifecycle status and availability before ordering. This ready-to-deploy solution simplifies procurement and reduces installation time.
