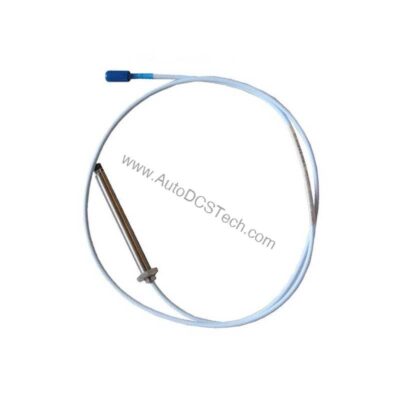

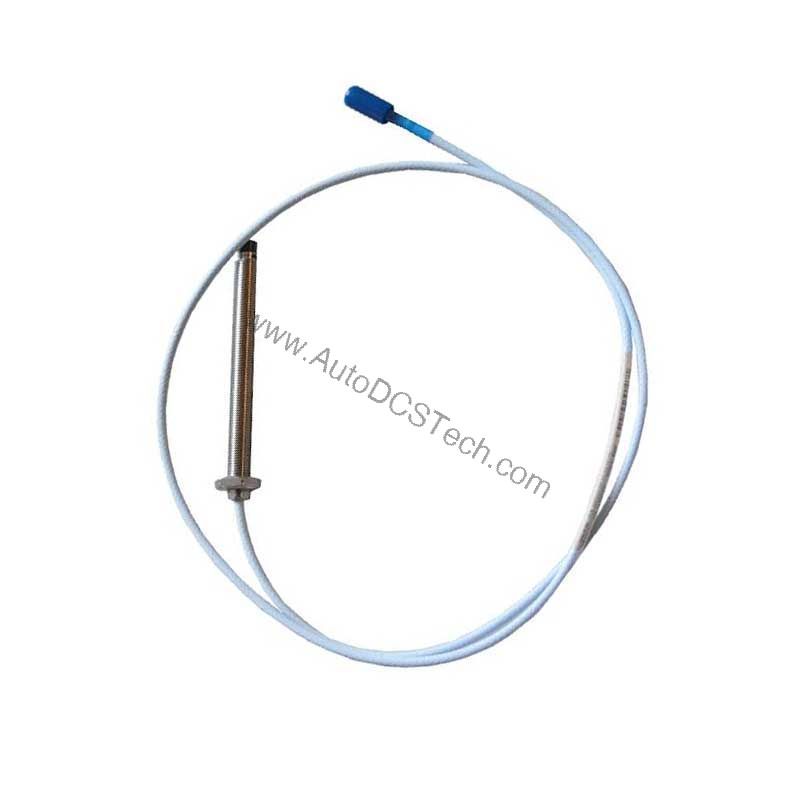

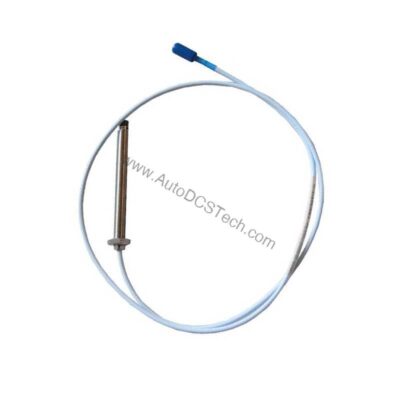

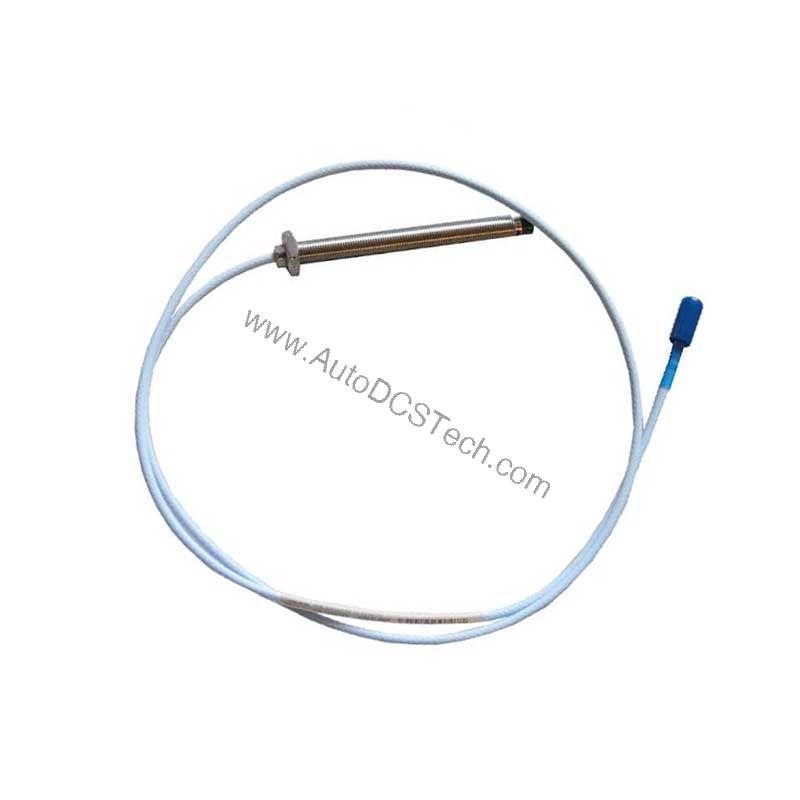

Bently Nevada 300103-00-05-10-02-05 3300 XL 8 mm Proximity Probe

Technical Specifications Breakdown

Key parameters for the 300103-00-05-10-02-05 are listed below for quick reference:

Application in Rotating Machinery Protection

This proximity probe is commonly installed on steam turbines, compressors, pumps, and electric motors to monitor radial vibration and axial position. The 2 mm linear range and recommended -9 Vdc gap setting allow precise measurement of shaft motion relative to the bearing housing. With CSA, ATEX, and IECEx approvals, the probe is suitable for hazardous area installations, including Zone 0 and Zone 2 environments when paired with appropriate barriers or isolators.

Installation Guidance for Maintenance Engineers

When installing the 300103-00-05-10-02-05, ensure the probe tip is clean and the target surface is smooth and free of scratches. The M10 x 1 thread allows secure mounting with a maximum thread engagement of 15 mm. Use 3-conductor shielded triad cable (16 to 24 AWG) for field wiring, keeping the distance between the Proximitor Sensor and monitor under 305 meters (1,000 feet) to avoid signal roll-off. Verify the gap voltage at -9 Vdc using a multimeter before finalizing the installation.

Maintenance and Reliability Considerations

Periodically inspect the probe cable and connector for damage, especially in high-vibration or high-temperature areas. The probe tip material (PPS) resists many chemicals, but avoid prolonged exposure to temperatures below -34°C (-30°F) to prevent pressure seal failure. The probe is designed to seal differential pressure between tip and case using a Viton O-ring; however, it is not pressure tested before shipment. For applications requiring a pressure seal test, contact the custom design department.

Precision Vibration Monitoring with the Bently Nevada 3300 XL Probe

For maintenance engineers responsible for rotating machinery reliability, the Bently Nevada 300103-00-05-10-02-05 3300 XL 8 mm Proximity Probe offers a trusted solution for shaft vibration and position measurement. This probe is designed for harsh industrial environments, providing accurate, non-contact sensing to detect early signs of bearing wear, imbalance, or misalignment.

Selection and Purchasing Advice

When selecting a replacement or spare probe, verify the total length, connector type, and agency approvals match your system requirements. AutoDCSTech stocks this probe and can assist with lifecycle status and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
