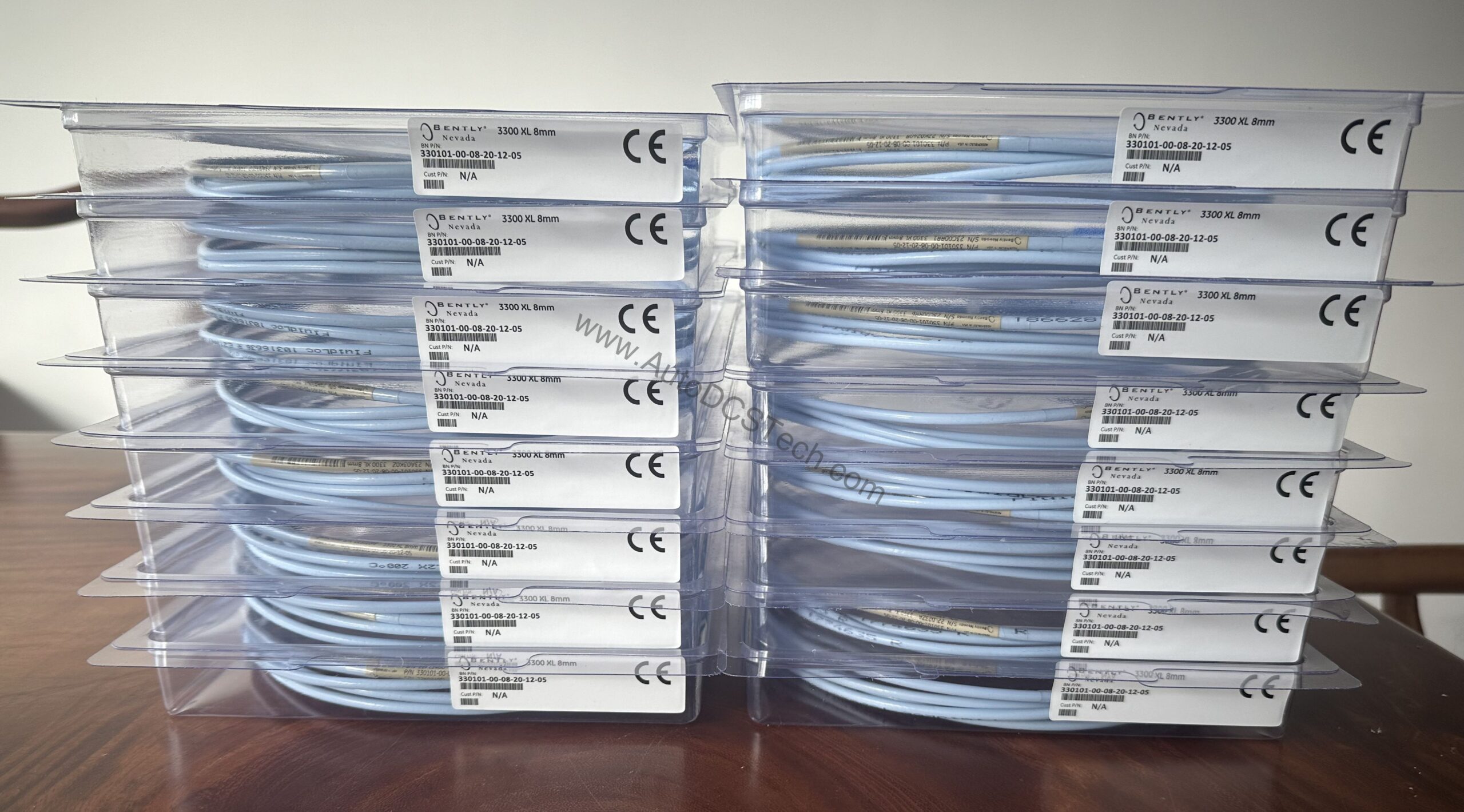

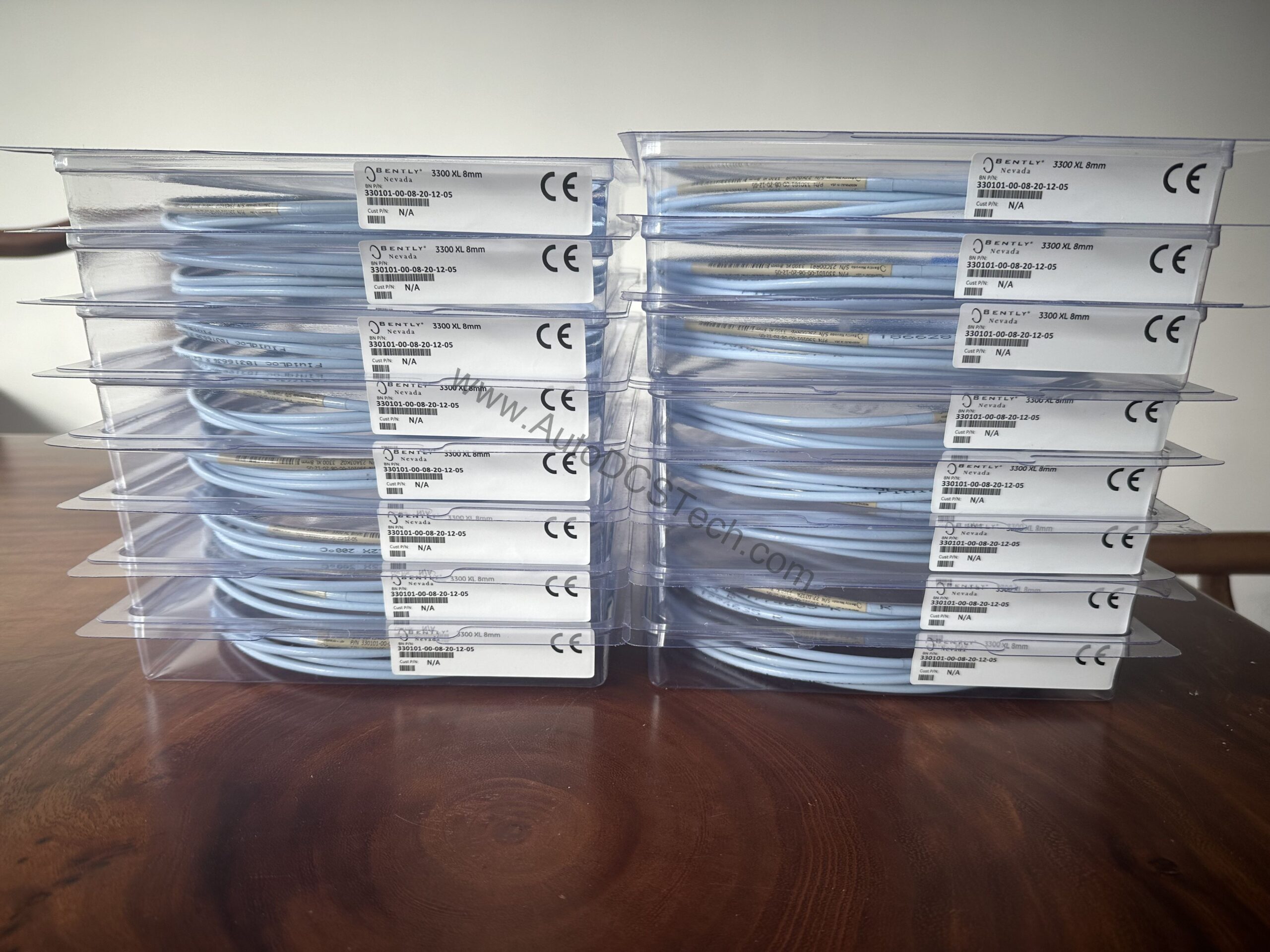

Bently Nevada 330101-37-57-10-02-05 3300 XL 8 mm Probe

Optimize Machinery Protection with the Bently Nevada 330101-37-57-10-02-05

Industrial rotating machinery demands precise vibration monitoring to prevent catastrophic failures. The Bently Nevada 330101-37-57-10-02-05 3300 XL 8 mm Probe delivers the accuracy and durability required for critical asset protection. This probe is designed for radial vibration and position measurements in harsh environments, offering a robust solution for your predictive maintenance program.

Technical Specifications Breakdown

Key parameters for the 330101-37-57-10-02-05 are listed below for quick reference:

Real-World Applications for Enhanced Reliability

Its 2 mm linear range and high sensitivity (7.87 V/mm) allow early detection of shaft vibration and thrust position changes. Compared to older 5 mm probes, the 8 mm design offers a thicker PPS tip encapsulation and stronger stainless steel case, reducing the risk of physical damage in high-vibration environments. The CSA, ATEX, and IECEx approvals make it suitable for hazardous area installations in oil and gas, petrochemical, and power generation facilities.

Installation and Setup Guidance

Proper installation is critical for accurate readings. The probe uses a 3/8-24 UNF thread. For standard forward mounted probes, recommended torque is 11.2 N•m (100 in•lbf) for the case and 7.5 N•m (66 in•lbf) for the first three threads. The recommended gap setting for radial vibration is -9 Vdc, approximately 1.27 mm (50 mils). Use field wiring of 0.2 to 1.5 mm² (16 to 24 AWG) with a 3-conductor shielded triad cable. Maximum field wiring length between the Proximitor Sensor and monitor is 305 meters (1,000 feet).

Maintenance and Reliability

To ensure long-term performance, inspect the probe cable and connector periodically for wear or damage. The patented CableLoc design provides 330 N (75 lbf) pull strength, enhancing cable retention. The probe operates reliably in temperatures from -52°C to +177°C (standard). Avoid exposing the probe to temperatures below -34°C (-30°F) to prevent premature pressure seal failure. The probe is designed to seal differential pressure between tip and case using a Viton® O-ring.

Compatibility and Integration

This probe is part of the 3300 XL system and works with Bently Nevada Proximitor sensors and monitors. The miniature coaxial ClickLoc connector ensures secure, quick connections. For extended temperature range applications, an ETR probe option is available (not included in this model).

Selection Guide and Purchasing Advice

When selecting a vibration probe, consider the required linear range, temperature environment, and agency approvals. AutoDCSTech stocks this exact model to support your maintenance needs. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
