Product Overview

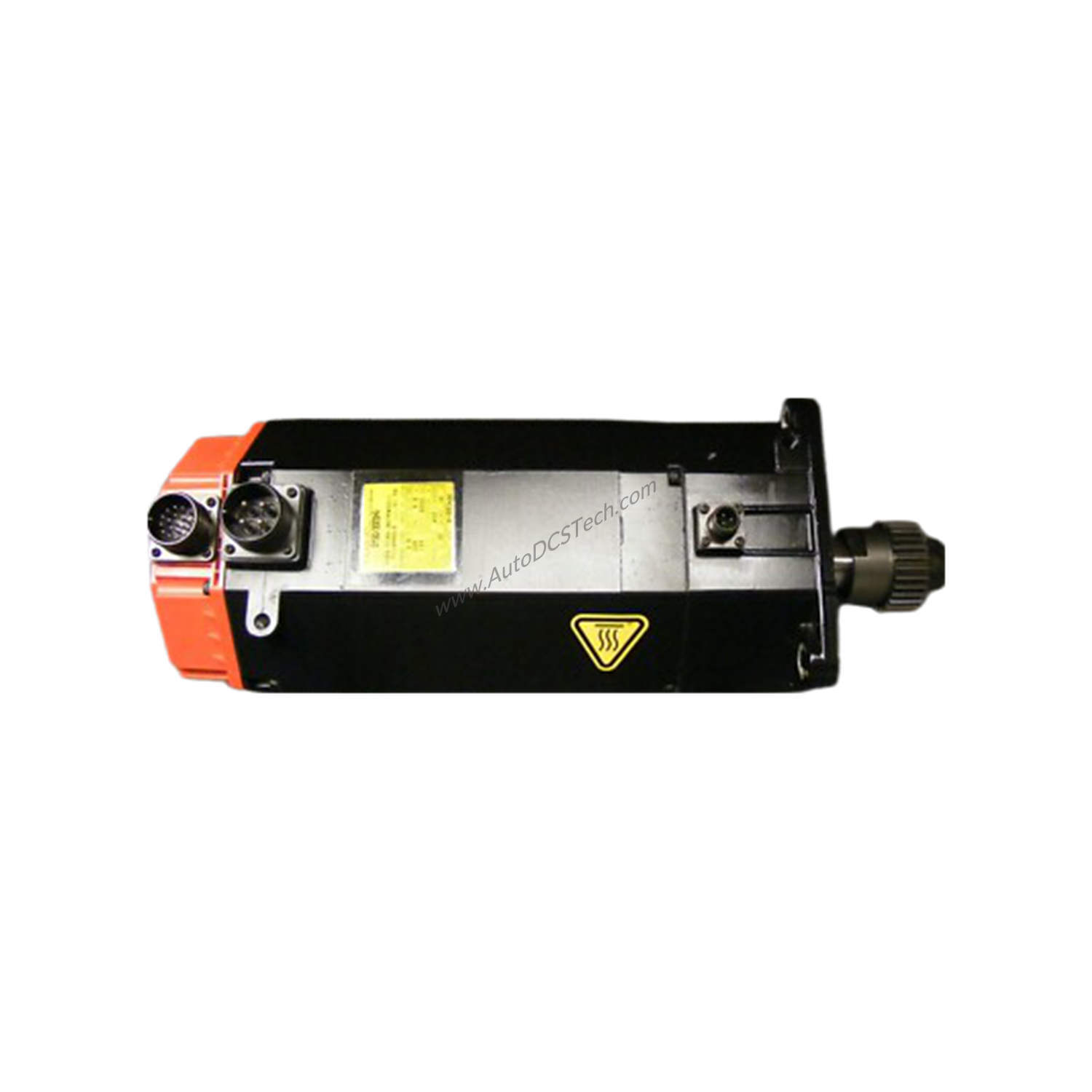

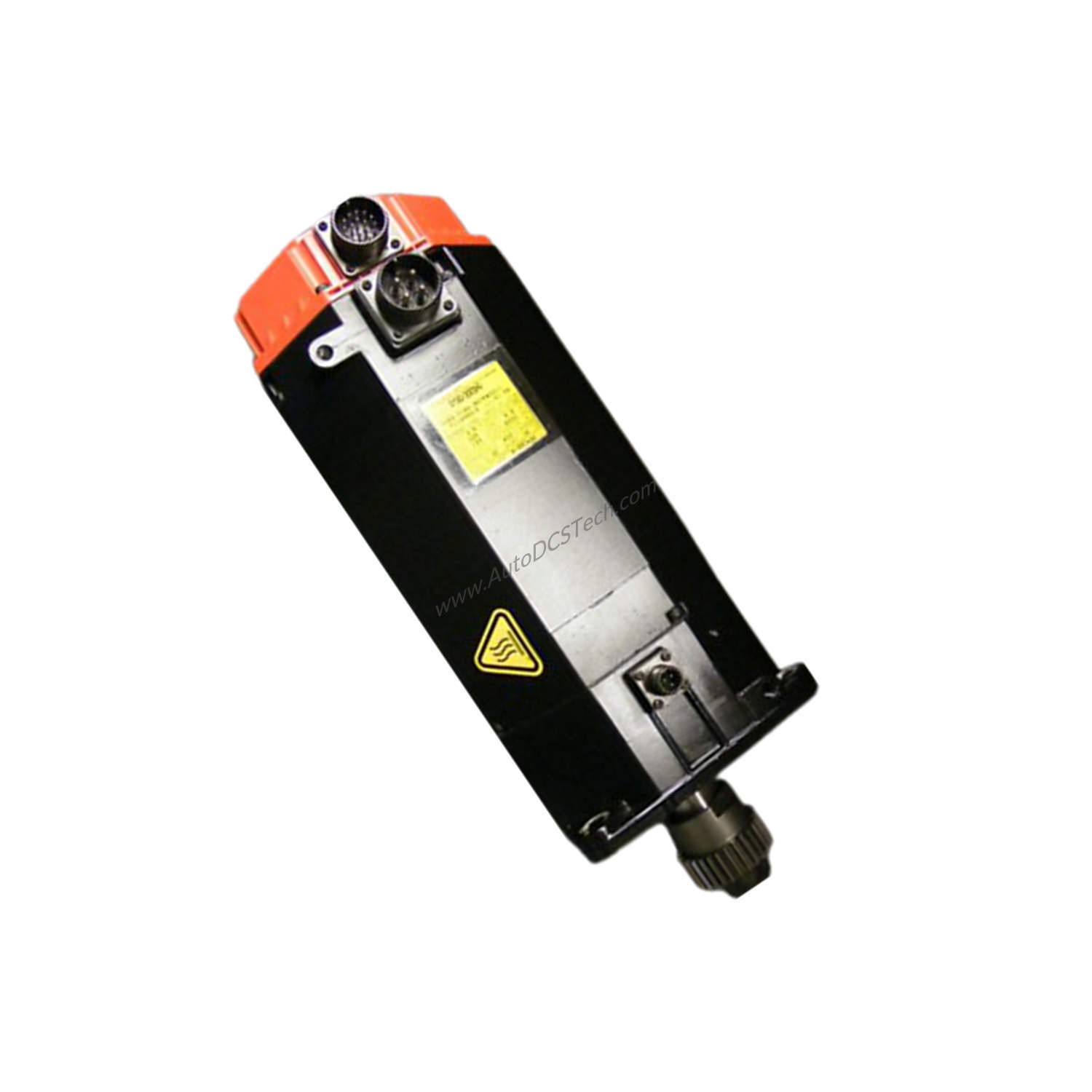

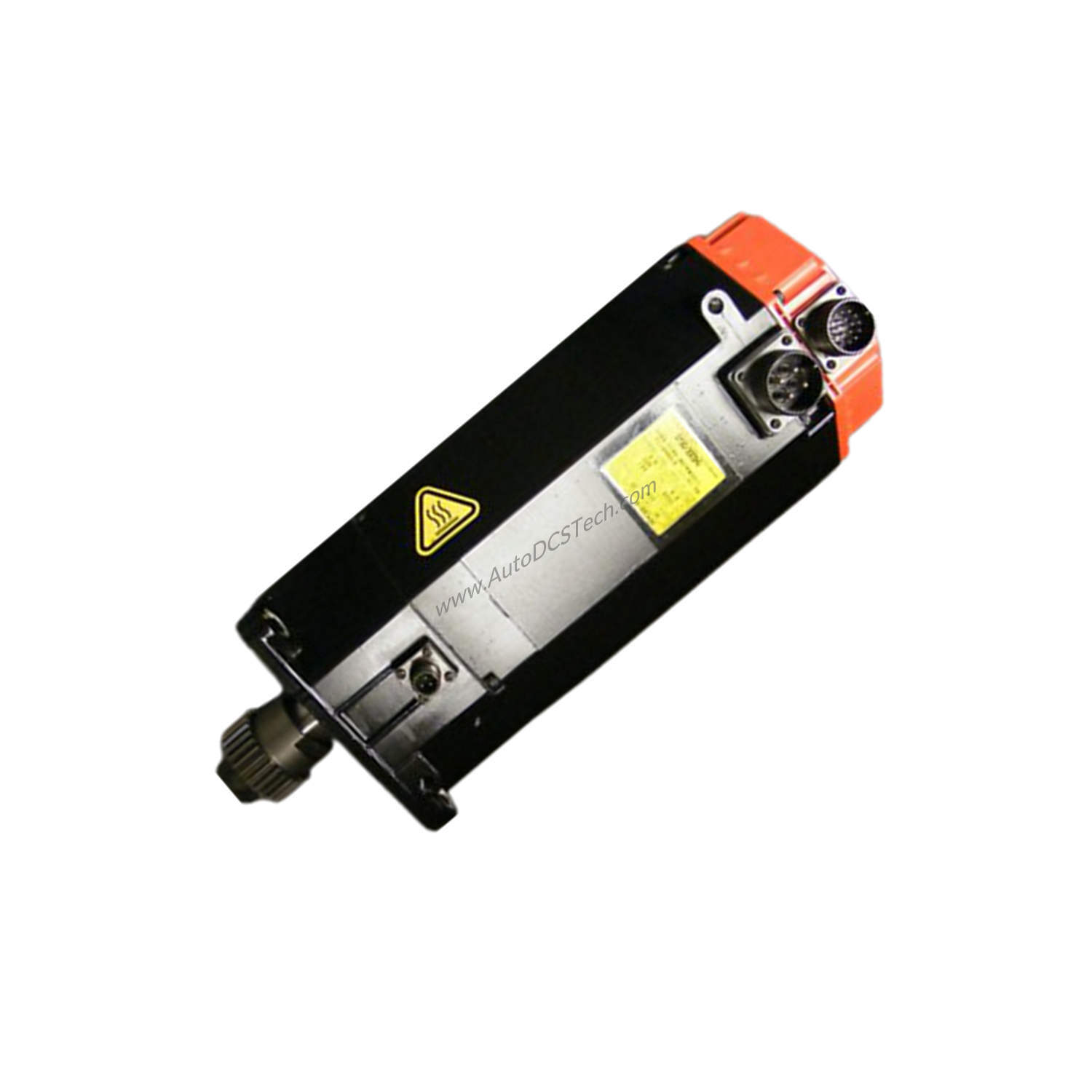

When your industrial automation demands reliable torque and precise speed control, the FANUC A06B-0186-B675 delivers. This 3-phase motor provides a rated power of 3.8 kW and a maximum torque of 30 Nm, operating at a rated speed of 2000 RPM. Designed for continuous duty in harsh environments, it ensures consistent performance in applications requiring significant force and quick acceleration.
Technical Specifications Breakdown
The A06B-0186-B675 operates on a 3-phase electrical system at 228 V and 133 Hz, drawing 9.8 A for efficient energy use. Its A64 encoder delivers accurate position and speed feedback essential for automated machinery. The tapered shaft design offers flexible coupling options, while the integrated brake enhances safety and control during operation. With insulation class F, the motor withstands higher temperatures for extended reliability. The IP67 protection class safeguards against dust ingress and temporary water immersion, making it suitable for wet or dusty environments. Air-cooling maintains optimal operating temperatures, and flange mounting (IM B5) simplifies installation and alignment. The motor weighs 77.00 lbs (34.93 kg).
Industry Applications
In robotics and material handling, the FANUC A06B-0186-B675 provides the torque and speed needed for precise positioning and heavy lifting. Its IP67 rating allows use in washdown environments like food processing or automotive assembly lines. The integrated brake ensures safe holding in vertical applications, reducing downtime and improving operator safety.
Installation & Setup Guidance
Mount the A06B-0186-B675 using the flange (IM B5) method to ensure proper alignment with driven equipment. Connect the 3-phase power supply at 228 V and 133 Hz, verifying correct phase rotation. Wire the integrated brake according to manufacturer guidelines for fail-safe operation. Use the A64 encoder cable as specified for accurate feedback. Ensure adequate airflow around the motor for air-cooling efficiency.
Maintenance & Reliability
Regularly inspect the motor for dust buildup on cooling surfaces and clean as needed to maintain air-cooling performance. Check the brake operation periodically to confirm safe holding torque. Monitor encoder signals for any degradation over time. With insulation class F and IP67 protection, this motor offers long service life in demanding conditions, reducing total cost of ownership.
Comparison with Similar Motors
Compared to standard induction motors without encoders or brakes, the A06B-0186-B675 offers integrated feedback and holding capability. Unlike many servo motors that require external drives, this FANUC motor is optimized for direct connection in 3-phase systems. Its IP67 rating exceeds typical IP54 protection, allowing use in harsher environments. The tapered shaft provides more coupling options than straight-shaft alternatives.
Selection Guide & Purchasing Advice
Before ordering, verify your system voltage and frequency match the 228 V / 133 Hz specification. Confirm the mounting interface is IM B5 compatible. The integrated brake eliminates the need for external holding devices. SpareTechPLC stocks the FANUC A06B-0186-B675 and can advise on compatibility with your existing automation setup. Contact our team for current availability and lead times.
Frequently Asked Questions
Q: What is the rated power of the FANUC A06B-0186-B675?
A: The motor delivers a rated power of 3.8 kW.
Q: Does this motor include a brake?
A: Yes, the A06B-0186-B675 comes with an integrated brake for safety and holding.
Q: What encoder type is used?
A: It features an A64 encoder for precise position and speed feedback.
Q: What is the protection class?
A: The motor has IP67 protection, guarding against dust and temporary water immersion.
Q: What is the mounting type?
A: It uses flange mounting (IM B5) for straightforward installation.
