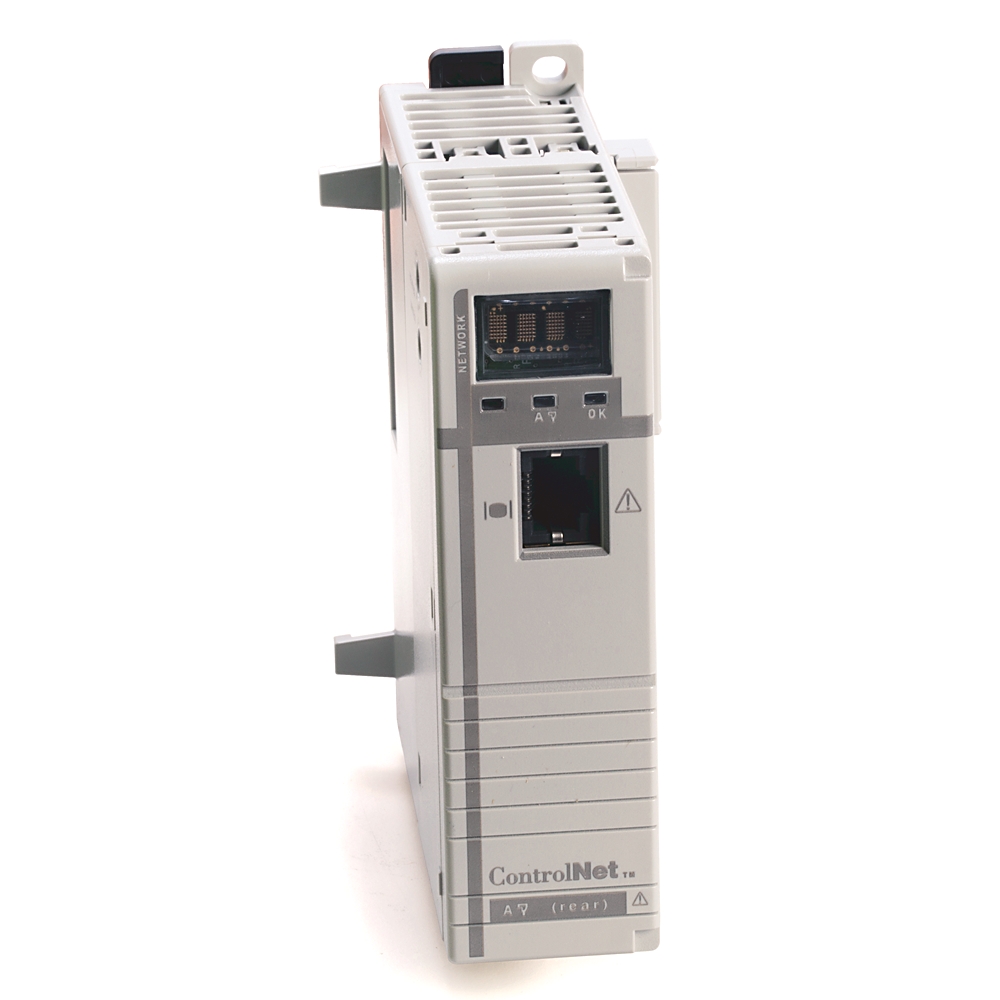

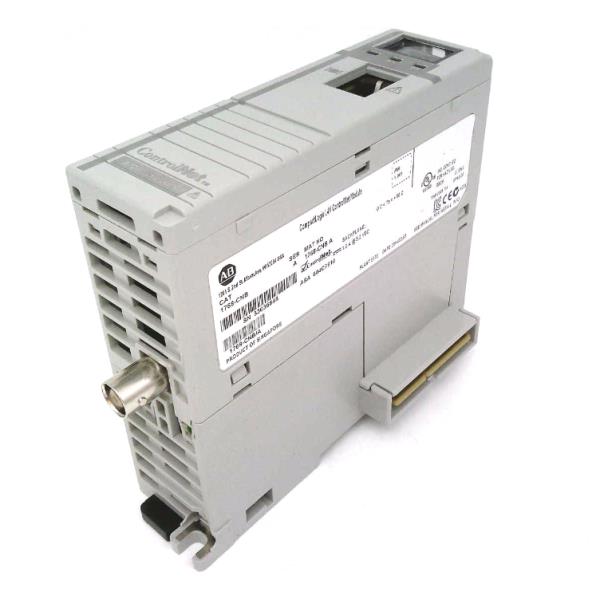

Product Overview
In modern manufacturing, achieving precise synchronized motion across multiple axes is a critical challenge. The Allen-Bradley 1768-M04SE SERCOS Interface Module addresses this by integrating motion control directly into the CompactLogix platform. This module allows engineers to control up to four Kinetix drives using a single interface, reducing wiring complexity and improving system responsiveness. Designed by Rockwell Automation, the 1768-M04SE is part of the CompactLogix series and is compatible with 1768-L43 and 1768-L45 controllers.
Technical Specifications Breakdown
Key parameters for the 1768-M04SE are listed below for quick reference:
| Feature | Specification |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Product Type | SERCOS Interface Module |
| Supported No. of Drives | Up to Four (4) drives |
| Drives Compatibility | Kinetix 2000, Kinetix 6000, Kinetix 7000, and Ultra 3000 SERCOS servo drives |
| Connections Consumed | Three (3) |
| SERCOS Class | Class B (Position or Velocity) |
| SERCOS Data Rate | 4 M or 8 M |
| Power Dissipation | 5.04 W |
| Backplane Current @ 5.2 VDC | 969 mA |
Industry Applications
This module excels in applications requiring coordinated motion, such as packaging machinery, material handling, and assembly lines. For example, in a high-speed bottling plant, the 1768-M04SE can synchronize four servo-driven fill stations, ensuring consistent fill levels even at variable line speeds. The 0.5 ms cycle time at 8 M data rate enables real-time adjustments, minimizing waste and downtime. By integrating motion control into the CompactLogix controller, engineers reduce hardware costs and simplify programming.
Installation & Setup Guidance
Mount the 1768-M04SE on a DIN rail or panel using the provided slots. It occupies a single slot in the 1768 chassis. Connect fiber optic cables using F-SMA standard screw-type connectors. Use plastic fiber optic cables (980 µm ± 60 µm core diameter) or glass cables (200 µm ± 4 µm core diameter) as per application needs. For plastic cables, ensure bend radius is at least 25 mm (0.98 in.) for standard jacket types. Verify that the SERCOS data rate (4 M or 8 M) matches the drive configuration. The module consumes three connections, so plan your network accordingly.
Maintenance & Reliability
Periodically inspect fiber optic connections for dust or damage. The module is rated for open enclosure use, so ensure it is installed in a clean, dry environment. The fiber optic operating temperature range is -55…85 °C for plastic cable and -20…85 °C for glass cable. Keep cables away from sharp edges to avoid exceeding bend radius limits. No internal adjustments are required; the module is designed for long-term reliability with a power dissipation of only 5.04 W.
Compatibility & Integration
The 1768-M04SE is compatible with Allen-Bradley Kinetix 2000, Kinetix 6000, Kinetix 7000, and Ultra 3000 SERCOS servo drives. It works with 1768-L43 (up to one module) and 1768-L45 (up to two modules) controllers. The module supports SERCOS Class B for position or velocity control. Use the 2090-SCEPxx-0, 2090-SCVPxx-0, or 2090-SCNPxx-0 plastic fiber optic cables, or 2090-SCVGxx-0 glass cables for drive connections.
Selection Guide & Purchasing Advice
When selecting the 1768-M04SE, confirm your controller compatibility and number of axes required. This module is ideal for systems needing up to four SERCOS drives with fast cycle times. For lifecycle status and availability, please contact SpareTechPLC before ordering. Our team can help verify stock and recommend alternatives if needed.
Troubleshooting & Common Issues
If the module fails to communicate, check the fiber optic cable connections and ensure the data rate matches the drives. Verify that the backplane current draw (969 mA @ 5.2 VDC) does not exceed the chassis power supply capacity. If cycle times are slower than expected, confirm the SERCOS operating cycle settings: at 4 M data rate with up to 2 drives, cycle time is 0.5 ms; with up to 4 drives, it is 1 ms. At 8 M data rate with up to 4 drives, cycle time is 0.5 ms.
