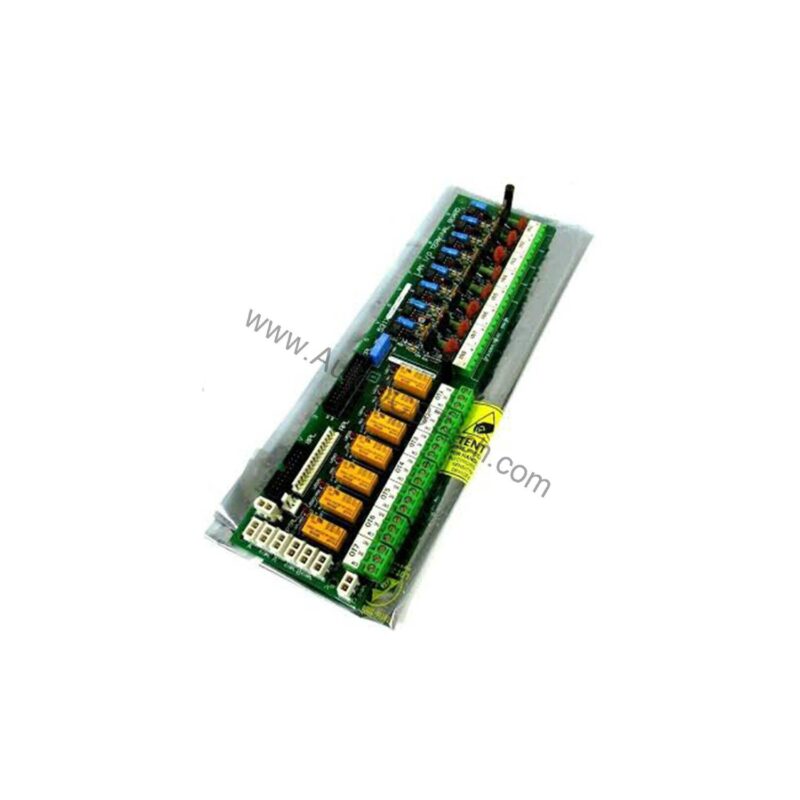

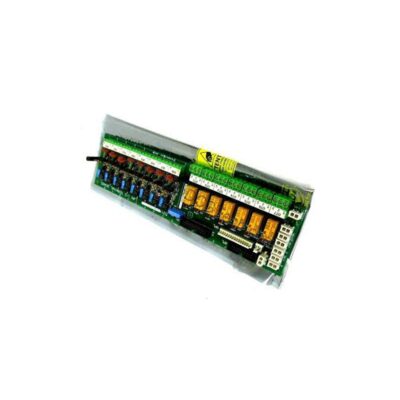

531X307LTBAJG1: LAN I/O Terminal Card
The 531X307LTBAJG1 is the LAN I/O Terminal Card covered on this page. The attribute that decides whether it fits the existing installation without modification is 8 configurable 24 V dc.
This configuration's lan i/o terminal card is the attribute that drives the replacement decision. A terminal board or cable is the physical interface between the control system and the field wiring, and its configuration is about connector type, signal routing and termination rather than processing. lan i/o terminal card sets how the signals are landed and distributed, and whether the board mates with the existing harness. Confirming 8 configurable 24 V dc against the original assembly avoids a board that bolts in but does not connect.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | 531X307LTBAJG1 |
| Part Number | 531X307LTBAJG1 |
| Country of Manufacture | United States (USA) |
| Product Type | LAN I/O Terminal Card |
| Series | EX2000 |
| Inputs | 8 configurable 24 V dc |
| Outputs | 7 form C relays + 7 high voltage high current relays |
| Turn-On Threshold | 6 V, 0.5 mA peak ac/dc |
| Turn-Off Threshold | 6 V, 0.5 mA peak ac/dc |
| LED Indicators | 15 |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-531x300cchafm5-drive-system-control-card-for-dc-300-drives | confirm the configuration against your installation |
| ge-531x305ntbang1-ntb-3tb-terminal-board-for-ex2000-excitation-systems | confirm the configuration against your installation |
| ge-531x309spcajg1-signal-processor-card-for-dc2000-drives | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | 531X307LTBAJG1 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
