GE 531X309SPCAJG1 Signal Processor Card for DC2000 Drives

Technical Specifications Breakdown

Key parameters for the 531X309SPCAJG1 are listed below for quick reference:

Industry Applications

DC Drive Retrofit and Maintenance

In aging DC drive systems, the 531X309SPCAJG1 provides a drop-in replacement for failed signal processor boards, minimizing downtime.

Process Line Control

For multi-drive process lines, this board handles LAN control and I/O processing, ensuring synchronized operation. The configurable potentiometers allow fine-tuning of signal gains to match specific line requirements.

Installation and Setup Guidance

Before installation, verify that the drive is powered down and all capacitors are discharged. Mount the board securely in the designated slot, ensuring proper alignment with the backplane connector. Set the onboard switches and jumpers according to your application's signal filtering and gain requirements, referencing the GEH-6005 manual. Connect the RS-422 serial cable and screw terminal wiring per the wiring diagram. Only qualified personnel should perform installation.

Maintenance and Reliability

Periodically inspect the board for dust accumulation or loose connections. Ensure the operating environment is clean and dry, as the board relies on passive cooling. Check that all potentiometers remain at their set positions; if drift is suspected, recalibrate using a multimeter. No specific temperature or humidity ratings are provided, so maintain standard industrial control cabinet conditions.

Signal Processor Card for Reliable Drive Control

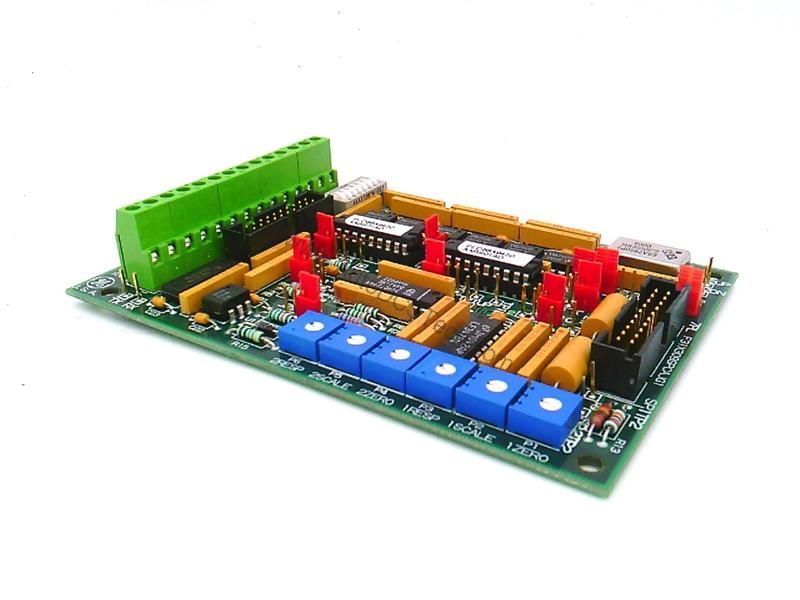

The GE 531X309SPCAJG1 is a digital signal process board from the 531X series, engineered for use with SDCC Drive Control Cards in GE DC2000 Digital Adjustable Speed Drives. This replacement board integrates critical I/O processing functions, including local area network (LAN) control and drive control board I/O handling. It serves as an interfacing medium between the processor card and externally connected encoders and tachometers, converting current reference signals and voltage level signals into voltage reference signals for command execution. Additionally, it processes RS-422 serial signals and sends them to the motor control processor. Onboard configurable switches, jumpers, and potentiometers allow users to adjust signal filtering and gains. The board features screw terminals and an RS-422 serial connector for easy integration.

Compatibility and Integration

The 531X309SPCAJG1 is designed exclusively for GE DC2000 drives using the SDCC Drive Control Card. It supports RS-422 serial communication, enabling integration with motor control processors. The board's LAN control function allows it to participate in distributed drive networks. Verify compatibility with your specific drive model before ordering.

Selection Guide and Purchasing Advice

When selecting a replacement signal processor board, confirm that your drive uses the SDCC control card and that the board's revision matches your system. The 531X309SPCAJG1 is available at AutoDCSTech, a trusted supplier of industrial automation parts. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
