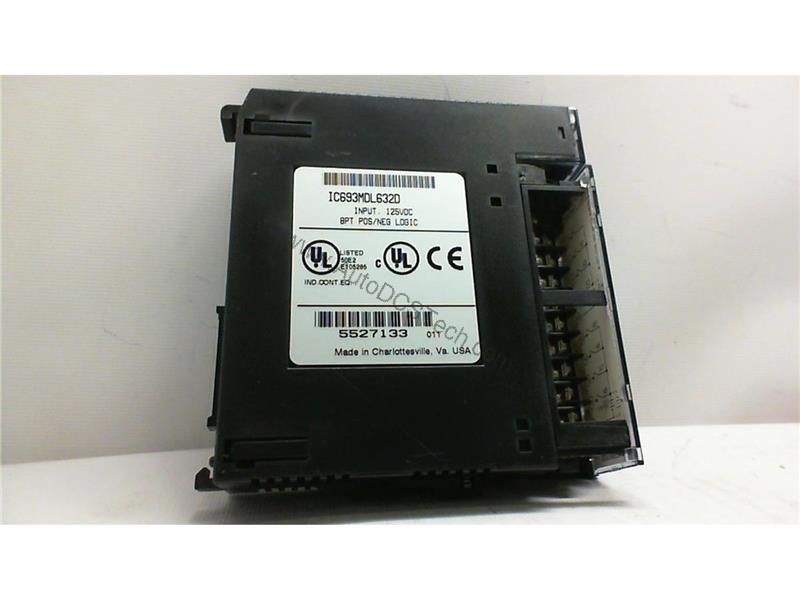

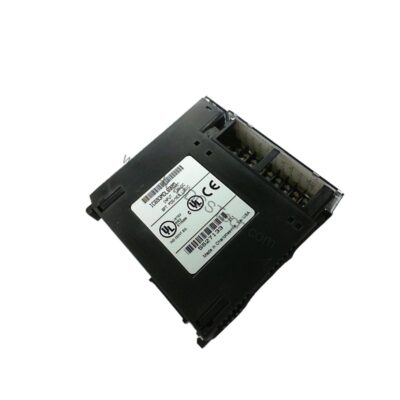

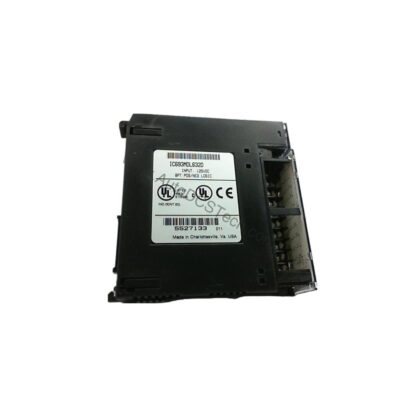

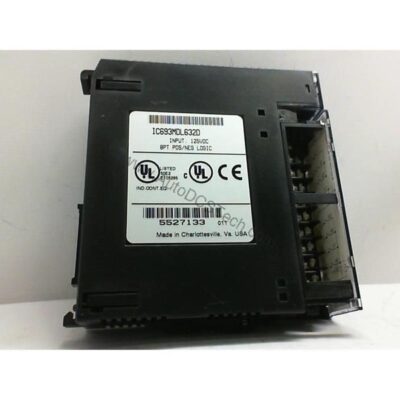

IC693MDL632: Input Module
The IC693MDL632 is the Input Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 8 inputs.
The reason to specify this exact variant is input module. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. input module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 8 inputs against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693MDL632 |
| Series | Series 90-30 |
| Part Number | IC693MDL632 |
| Product Type | Input Module |
| Logic | Positive/Negative |
| Rated Voltage | 125 Volts DC |
| Input Voltage Range | 0 to 150 Volts DC |
| Inputs | 8 |
| Isolation between groups | 500 Volts |
| On-State Voltage | 90 to 150 Volts DC |
| Off-State Voltage | 0 to 30 Volts DC |
| On-State Current | 3.1 mA |
This part belongs to a discontinued platform (GE Series 90-30), superseded by PACSystems RX3i (IC695 series). We stock remaining new and refurbished units.
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic693mdl630-series-90-30-24v-dc-8-point-positive-logic-input-module | confirm the configuration against your installation |
| ge-fanuc-ic693mdl634-24v-dc-positive-negative-logic-input-module | confirm the configuration against your installation |
| ge-fanuc-ic693mdl635-series-90-30-positive-negative-logic-input-module | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC693MDL632 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
