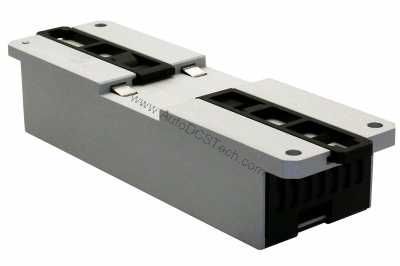

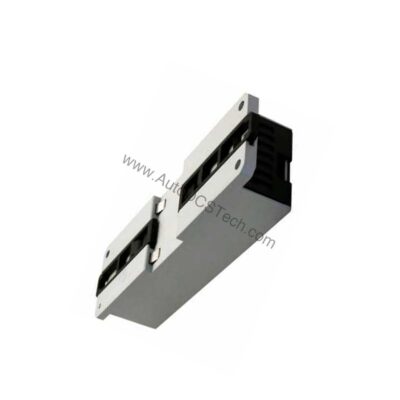

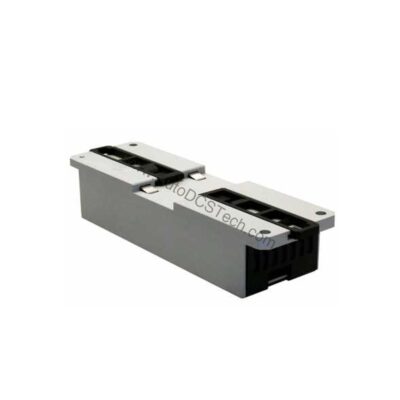

IC695CEP001: RX3i CEP carrier with RJ-45 copper Ethernet interface
The IC695CEP001 is the RX3i CEP carrier with RJ-45 copper Ethernet interface covered on this page. The attribute that decides whether it fits the existing installation without modification is 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).
This configuration's rx3i cep carrier with rj-45 copper ethernet interface is the attribute that drives the replacement decision. A communication or network module is judged by the protocol it carries and the bus it joins, not by its catalogue headline. rx3i cep carrier with rj-45 copper ethernet interface sets which controllers and field devices it can bridge, and the isolation and termination it provides. Matching 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) against the existing network topology avoids a module that fits the rack but cannot talk to the rest of the system.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC695CEP001 |
| Series | RX3i PacSystem |
| Part Number | IC695CEP001 |
| Type | RX3i CEP carrier with RJ-45 copper Ethernet interface |
| PROFINET Support | PROFINET version 2.3 (Class A) |
| Voltage Range | 19.2 to 30 Volts DC |
| Required Power | 5.25 Watts (0.22 Amp) at 24 Volts DC |
| Number of I/O Modules per Station | 1 |
| I/O Data per Station | 1024 bytes total with 512 bytes for input data / 512 bytes for output data |
| Number of Ethernet Port Connectors | 2 RJ-45 10/100 Base-TX receptacles |
| USB Connector | 1 Micro-B connector, USB 2.0 compliant |
| Dimensions | 177.2 x 51 x 35 millimeters (7 x 2 x 1.3 inches) |
| Operating Temperature | 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic695cpe310-pacsystems-rx3i-mid-range-controller-module | confirm the configuration against your installation |
| ge-fanuc-ic695cbl001-rx3i-energy-pack-cable-091m | confirm the configuration against your installation |
| ge-fanuc-ic695cbl002-rx3i-pacsystem-cpu-energy-pack-cable | confirm the configuration against your installation |
| ge-fanuc-ic695cbl003-rx3i-pacsystems-energy-pack-cable-06m | confirm the configuration against your installation |
| ge-ic695chs007-universal-backplane-for-pacsystem-rx3i | confirm the configuration against your installation |
| ge-ic695chs012-rx3i-pacsystem-12-slot-universal-backplane | confirm the configuration against your installation |
| ge-ic695chs016-pacsystem-rx3i-universal-backplane-16-slot | confirm the configuration against your installation |
| ge-ic695cmm002-pacsystem-rx3i-serial-communications-module-overview | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC695CEP001 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
