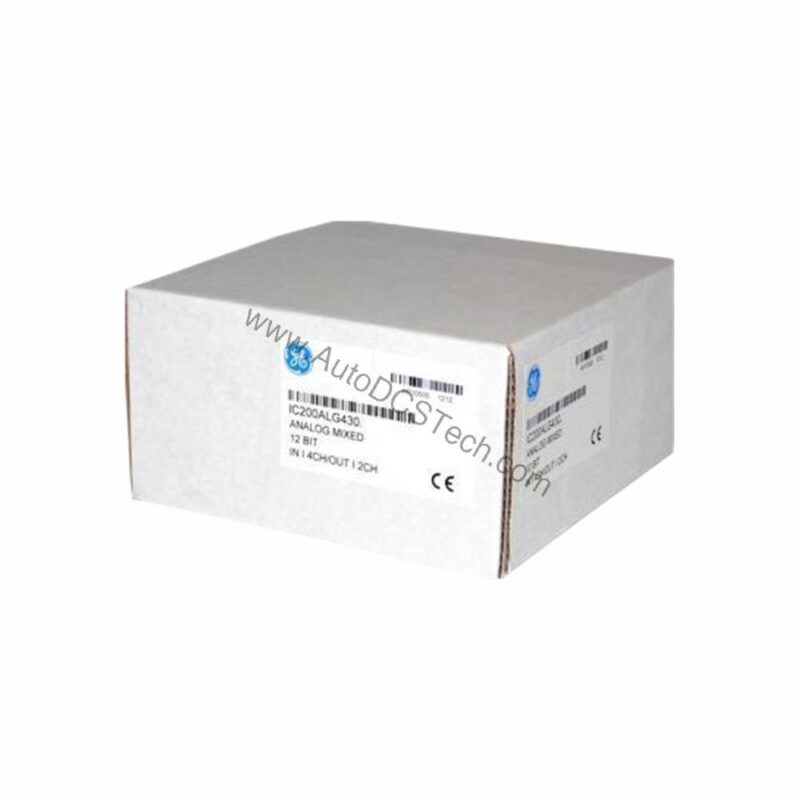

IC200ALG430: VersaMax Analog Combination Module 4 Inputs 2 Outputs
The IC200ALG430 is the VersaMax Analog Combination Module 4 Inputs 2 Outputs covered on this page. The attribute that decides whether it fits the existing installation without modification is 12 bit.
This configuration's versamax analog combination module 4 inputs 2 outputs is the attribute that drives the replacement decision. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. versamax analog combination module 4 inputs 2 outputs sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 12 bit against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC200ALG430 |
| Series | VersaMax |
| Part Number | IC200ALG430 |
| Input Channels | 4 |
| Output Channels | 2 |
| Input Signal | 4-20 mA |
| Output Signal | 4-20 mA |
| Resolution | 12 bit |
| Input Update Rate | 0.4 ms |
| Output Update Rate | 0.3 ms |
| Input Filter Response | 5 ms |
| Accuracy | +/-0.3% typ., +/-0.5% max. at 25°C |
| Isolation | 250/1500 VAC |
| Backplane Current | 50 mA @ 5VDC |
| External Supply (Output) | 18-30 VDC |
| Crosstalk Rejection | 30 dB |
| LEDs | FLD POWER, MODULE OK |
| Width | Single slot. |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic200alg431-versamax-analog-mixed-module-12-bit | confirm the configuration against your installation |
| ge-fanuc-ic200alg432-versamax-analog-mixed-module-overview | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC200ALG430 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
