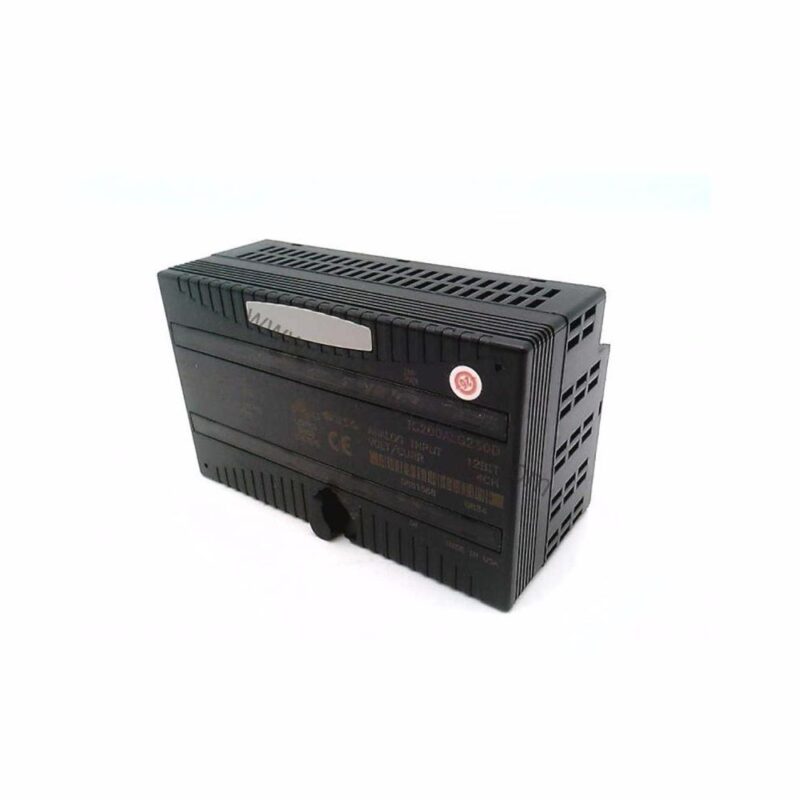

IC200ALG432: VersaMax Analog Mixed Module
The IC200ALG432 is the VersaMax Analog Mixed Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 10 Volts DC.
This configuration's versamax analog mixed module is the attribute that drives the replacement decision. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. versamax analog mixed module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 10 Volts DC against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC200ALG432 |
| Series | VersaMax |
| Part Number | IC200ALG432 |
| Description | Analog mixed module |
| Voltage | 10 Volts DC |
| Update Rate | 0.4 milliseconds |
| Response Time | 5 milliseconds |
| Power Consumption | 160 milliamperes |
| Accuracy at 25 Degrees Celsius | +/- 0.3% of full scale |
| Accuracy at 60 Degrees Celsius | +/- 1% maximum |
| Common Mode Voltage | 0 Volts |
| Resolution | 8 counts |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic200alg430-versamax-analog-combination-module-4-inputs-2-outputs | confirm the configuration against your installation |
| ge-fanuc-ic200alg431-versamax-analog-mixed-module-12-bit | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC200ALG432 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
