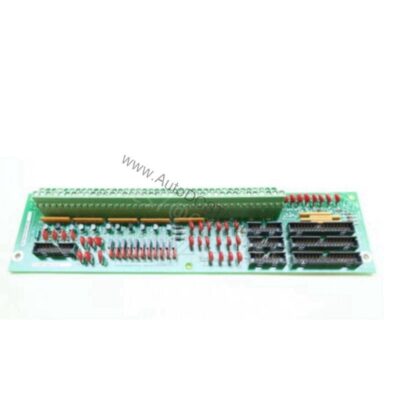

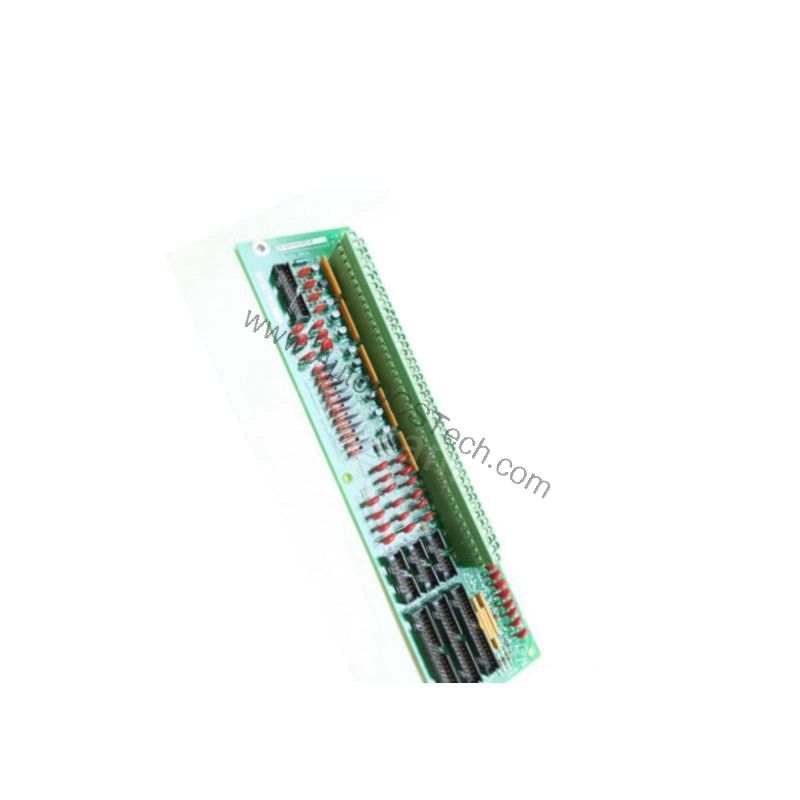

DS200TBQBG1ACB: Mark V RST Analog Termination Board
The DS200TBQBG1ACB is specified as Mark V RST Analog Termination Board. Where this variant differs from others in its family is the configuration listed below — confirm it against the unit being replaced.
On this unit mark v rst analog termination board is the figure that decides fit and function. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. mark v rst analog termination board sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching the configuration shown in the specification table against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | DS200TBQBG1ACB |
| Series | Mark V |
| Functional Acronym | TBQB |
| Functional Description | RST Termination Board |
| PCB Coating | Normal Coating |
| Functional Revision 1 | A |
| Functional Revision 2 | C |
| Artwork Revision | B |
| Terminal Blocks | 2 (154 terminals) |
| Jumpers | 15 |
| Connectors | 3 34-pin, 3 16-pin |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ds200tbqcg1aaa-analog-input-termination-module-for-mark-v-series | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | DS200TBQBG1ACB |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
