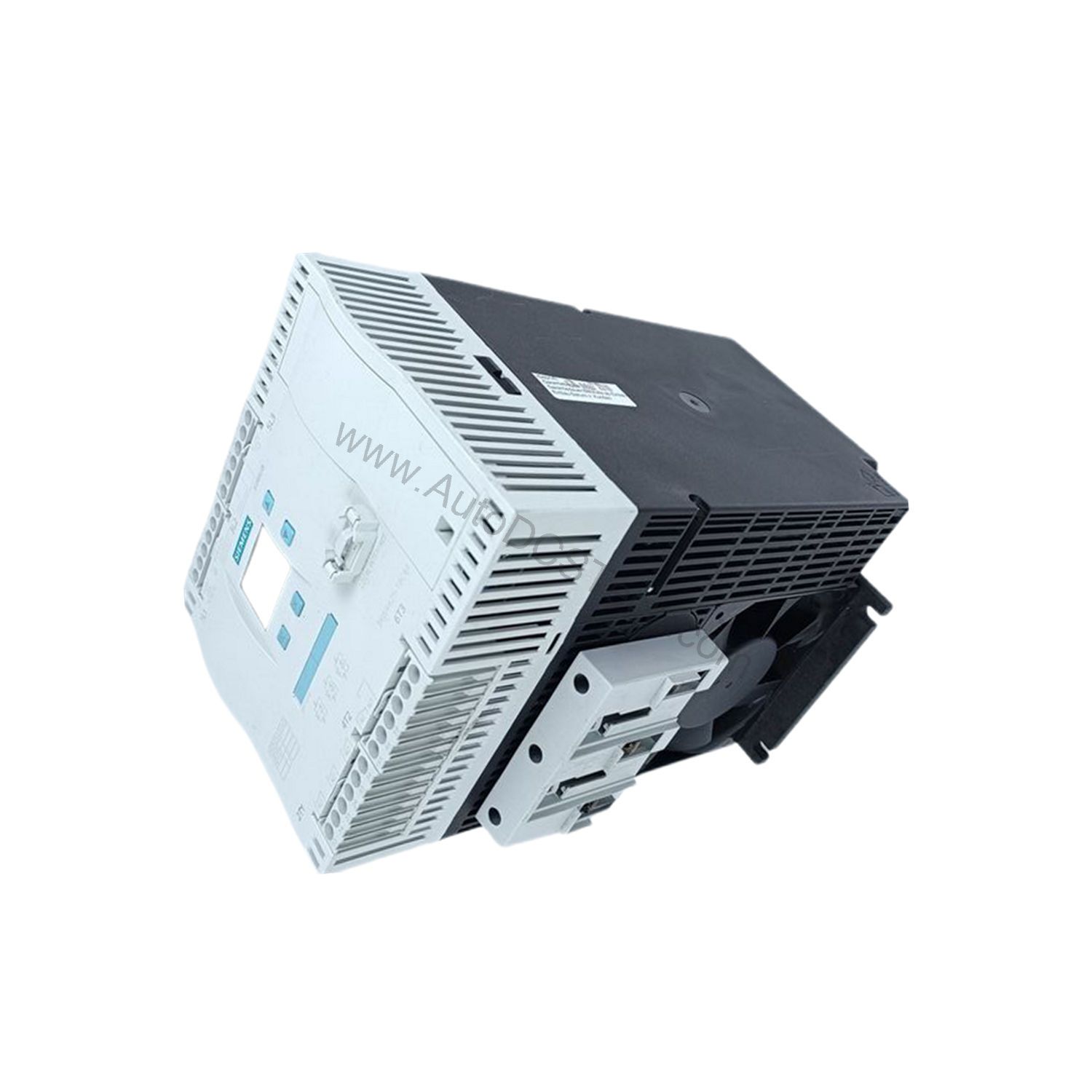

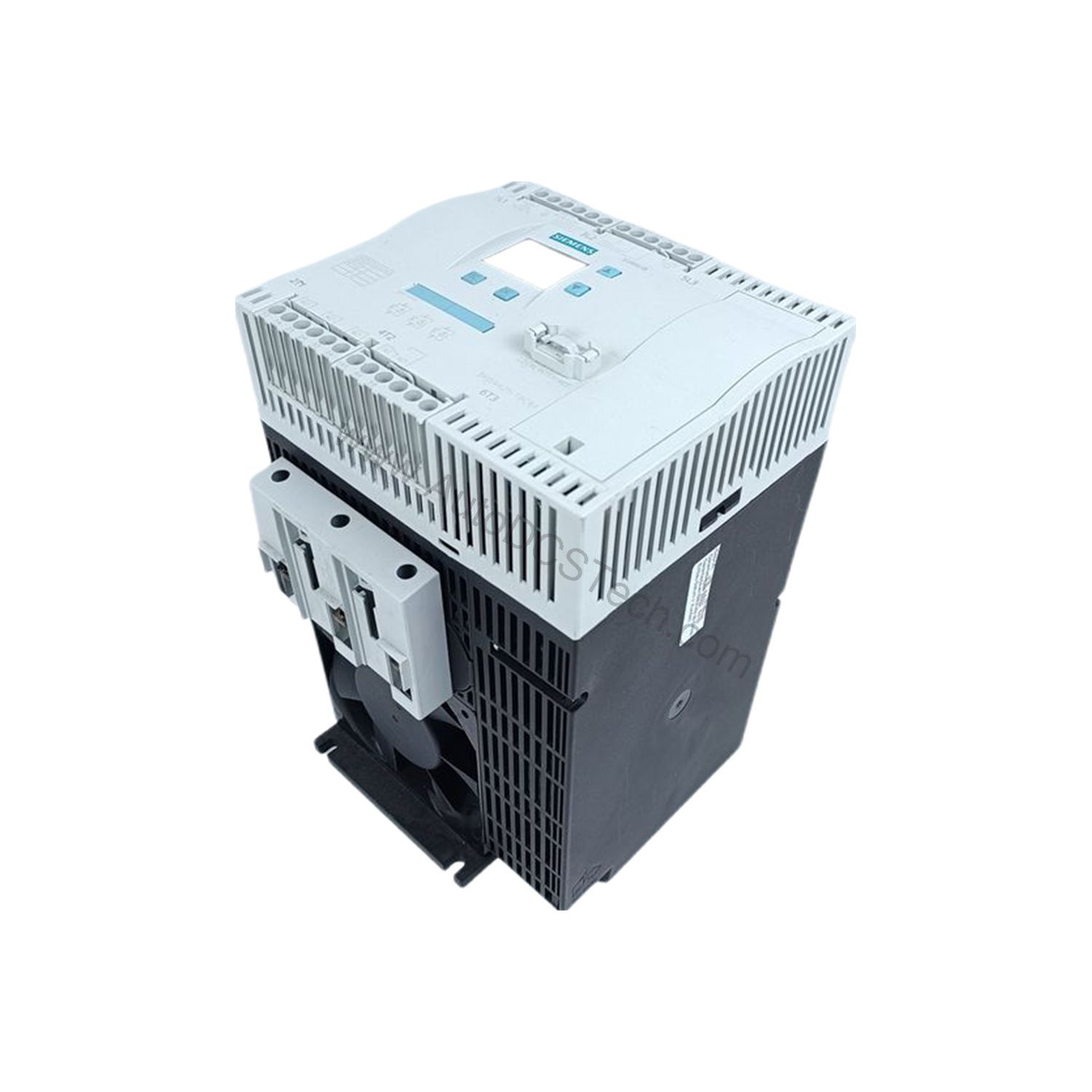

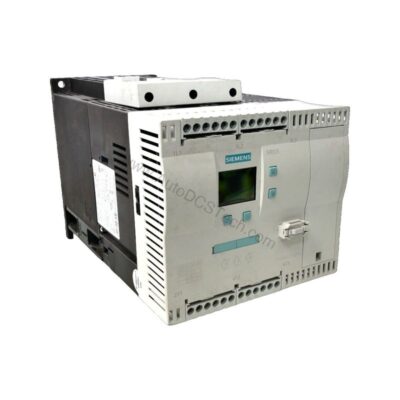

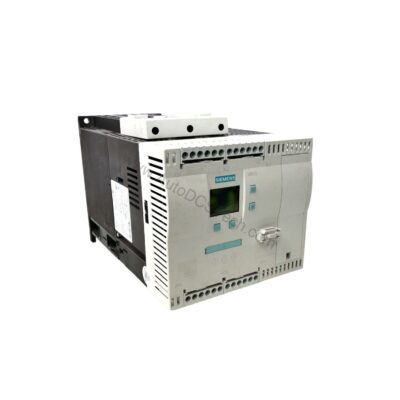

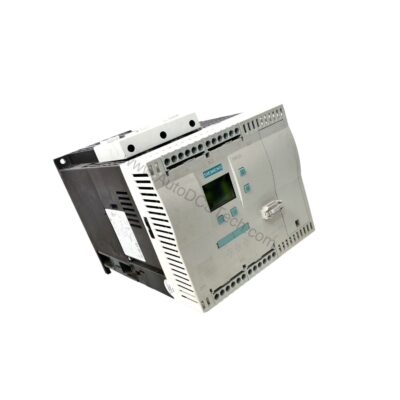

Introduction to the Siemens 3RW4425-1BC44 Soft Starter

When motor starting demands reliability and precision, the 3RW4425-1BC44 from Siemens provides a proven solution. This SIRIUS soft starter is engineered for high-feature applications, offering integrated bridging and thyristor control to manage inrush currents effectively. With a rated operating current of 57 A at 40 °C in standard circuit, it handles demanding industrial loads while protecting the motor from thermal stress.

Key Features and Technical Specifications

The 3RW4425-1BC44 is packed with features that enhance motor protection and operational flexibility. Below are the core specifications derived directly from the datasheet:

• Rated operating current: 57 A at 40 °C (standard circuit), 99 A at 40 °C (inside-delta circuit).
• Emitted mechanical power: 30 kW at 400 V standard switching; 55 kW at 400 V inside-delta.
• Operating voltage: 200–460 V AC (standard and inside-delta).
• Control supply voltage: 230 V AC at 50/60 Hz.
• Operating frequency: 50–60 Hz with ±10% tolerance.
• Integrated protection: Motor overload protection, intrinsic device protection, thermal resistor evaluation.
• Adjustable current limitation: Yes, for precise starting control.
• Inside-delta circuit: Supported for higher power applications.
• Electrical connections: Box terminals for main circuit, screw terminals for control.
• Protection class: IP00.

These specifications ensure the soft starter can be tailored to specific motor starting requirements, reducing mechanical stress and extending equipment life.

Applications and Use Cases

The 3RW4425-1BC44 is ideal for conveyors, pumps, fans, and compressors where controlled acceleration is critical. In material handling, it prevents belt slippage and product damage. For pumping systems, it minimizes water hammer. The adjustable current limitation helps manage starting torque, making it suitable for both light and heavy start-up loads. Its wide voltage range (200–460 V AC) allows integration into diverse global installations.

Installation and Setup

Proper installation is key to maximizing performance. The soft starter supports screw fixing and can be mounted on a vertical plane, rotatable ±90° or tilted ±22.5°. Maintain the specified clearances: 100 mm upward, 5 mm sideways, and 75 mm downward to ensure adequate airflow. The maximum cable length is 500 m, and installation altitude can reach 5,000 m above sea level. Connectable conductor cross-sections range from 2.5 to 70 mm² depending on the clamping point, offering flexibility for various wiring configurations.

Maintenance and Reliability

Regular inspection per the manufacturer's manual is recommended to ensure long-term reliability. The integrated bridging contact system and thyristors are designed for durability, but environmental factors like temperature and humidity should be monitored. The unit operates at ambient temperatures up to 60 °C, with derating above 40 °C. Periodic verification of torque settings and electrical connections helps prevent unexpected downtime.

Compatibility and Integration

This soft starter is part of the Siemens SIRIUS family, designed for seamless integration into industrial control systems. It includes three NO contacts and one changeover contact for auxiliary signaling, enabling easy connection to PLCs or motor control centers. The control supply voltage (230 V AC) is standard in many regions, simplifying retrofit projects.

Troubleshooting and Common Issues

Common issues with soft starters include nuisance trips due to incorrect current settings or thermal overload. The 3RW4425-1BC44 features adjustable rated current (minimum 11 A) to match motor full-load current. If the motor fails to start, verify the control supply voltage and frequency. The device provides a display for fault signals, aiding quick diagnosis. Always consult the official Siemens manual for detailed troubleshooting steps.
