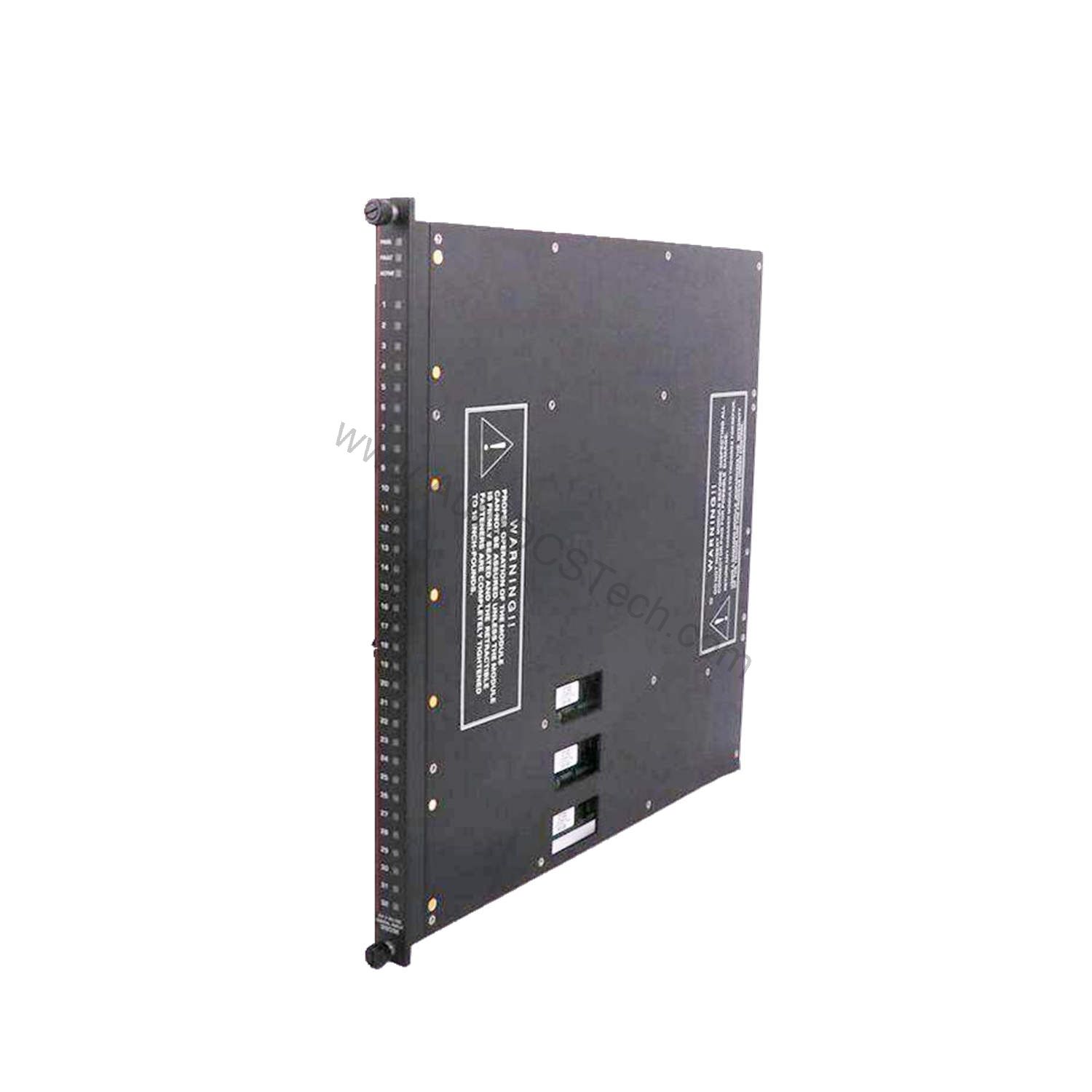

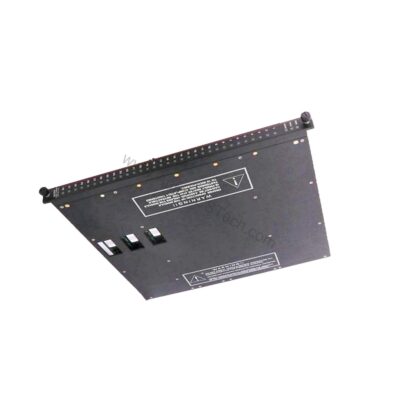

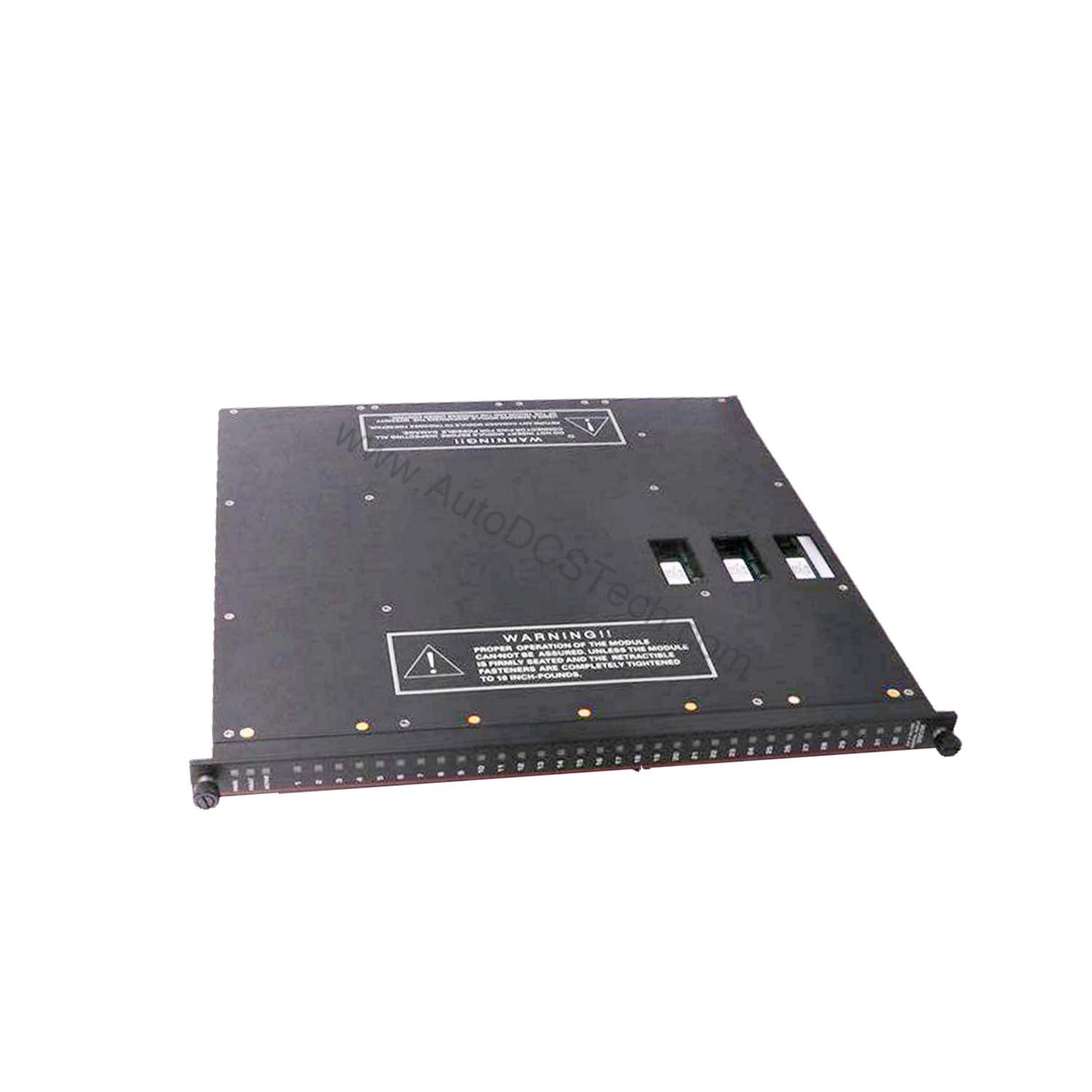

Introduction to the Triconex 4119A Enhanced Intelligent Communication Module

When your Tricon system needs to communicate with Modbus masters, slaves, TriStation, or printers, the 4119A Enhanced Intelligent Communication Module (EICM) delivers a dependable solution. This module is engineered to integrate seamlessly into your existing Tricon chassis, providing robust data exchange across multiple protocols.

The 4119A supports both Modbus RTU and ASCII modes, giving you flexibility in how you connect to field devices. With four serial ports and one parallel port operating concurrently, this module handles substantial communication loads without compromising performance.

Key Features and Technical Specifications

The 4119A is packed with features that make it a versatile choice for industrial communication. Below are the core specifications extracted from the official datasheet:

• Model Number: 4119A, Isolated
• Serial Ports: 4 ports supporting RS-232, RS-422, or RS-485
• Parallel Port: 1 Centronics port, isolated
• Port Isolation: 500 VDC
• Protocols: TriStation and Modbus
• Communication Speed: 1200, 2400, 9600, or 19,200 Baud
• Diagnostic Indicators: PASS, FAULT, ACTIVE, plus TX/RX per port

One standout feature is the port isolation of 500 VDC, which protects your system from ground loops and voltage spikes. This isolation enhances reliability in harsh industrial environments, reducing the risk of communication failures.

Applications and Use Cases

The 4119A is ideal for applications requiring robust Modbus communication. For example, in a process plant, you can connect the module to multiple Modbus slaves over an RS-485 network, with support for up to 32 slaves on a single trunk. The RS-485 trunk can extend up to 4,000 feet (1,200 meters), making it suitable for large facilities.

Additionally, the module can act as a Modbus master for up to seven masters per Tricon chassis, enabling centralized control. The parallel port provides a Centronics interface for printing reports or logs, which is useful in batch processing environments.

Installation and Setup

Installing the 4119A is straightforward. The module fits into a logical slot in the Tricon chassis, and you can replace a faulty unit while the controller remains online—though hot-spare redundancy is not supported. Ensure that the serial port configurations match your network topology, whether you choose RS-232 point-to-point or RS-485 multi-drop.

For Modbus communication, assign a five-digit alias to each Tricon variable name that will be accessed by Modbus devices. This alias mapping is done in TriStation, and it is essential for proper data exchange.

Maintenance and Reliability

To maintain reliable operation, periodically inspect the module's diagnostic indicators. The PASS and FAULT LEDs give you immediate status feedback, while the ACTIVE LED shows communication activity. Check the TX and RX LEDs per port to verify data transmission.

Because the module is isolated, it is less susceptible to electrical interference, but you should still ensure that cabling is properly shielded and grounded. Regular inspection of connections and adherence to the manufacturer's manual will extend the module's service life.

Compatibility and Integration

The 4119A is designed for Tricon systems, and it supports Modbus and TriStation protocols. It can communicate with any standard Modbus device, provided aliases are assigned. The module also works with host computers accessing the Tricon through other communication modules, such as the NCM.

Each Tricon system supports a maximum of two EICMs, which must reside in one logical slot. This allows you to expand communication capacity while maintaining a single point of integration.

Troubleshooting and Common Issues

If you encounter communication errors, first verify that the alias assignments in TriStation are correct. Incorrect aliases are a common cause of data mismatches. Next, check the serial port settings—baud rate, parity, and stop bits—to ensure they match the connected devices.

If the FAULT LED is lit, refer to the diagnostic indicators to isolate the problem. The module supports loopback diagnostic tests (Modbus function 08), which can help verify the integrity of the communication path.

Product Support and Availability

The 4119A is available through AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering. In stock and ready to ship, this module can be delivered promptly to minimize downtime.
