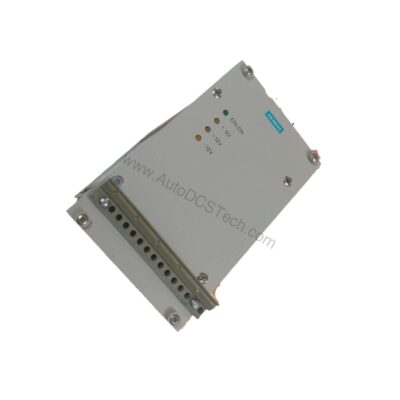

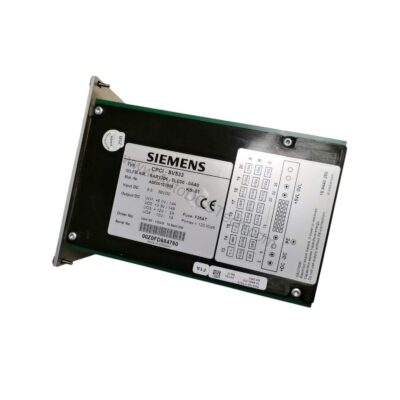

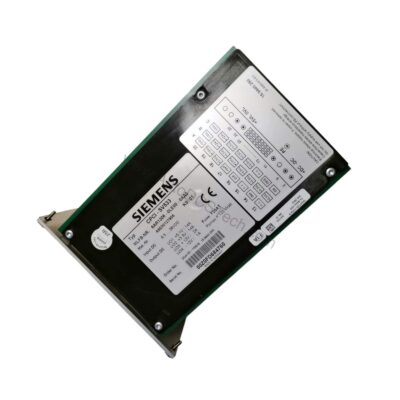

6AR1306-0LE00-0AA0 8.5-36V DC Siemens Power Supply Module

Introduction to the Siemens 6AR1306-0LE00-0AA0

When your control system demands a stable and efficient power source, the 6AR1306-0LE00-0AA0 from Siemens provides a dependable solution. This power supply module converts a wide input voltage range of 8.5 to 36 V DC into a regulated output of 5.1 V, capable of delivering up to 14 A. Such flexibility makes it suitable for diverse industrial setups, from small control panels to larger automation networks.

Engineered for robustness, this module operates reliably across a temperature range of 0 to 60 degrees Celsius and can handle humidity up to 80% RH without condensation. Its compact dimensions—2.5 cm in height, width, and depth—and a weight of just 0.5 kg allow for easy integration into space-constrained environments.

Key Features and Technical Specifications

The 6AR1306-0LE00-0AA0 stands out with its wide input range and high output current. Below are the core specifications extracted from the official datasheet:

• Input Voltage: 8.5 to 36 V DC
• Output Voltage: 5.1 V
• Output Current: 14 A
• Operating Temperature: 0 to 60 °C
• Humidity Tolerance: Up to 80% RH (non-condensing)
• Altitude Capability: Up to 1000 m without derating
• Dimensions: 2.5 cm × 2.5 cm × 2.5 cm
• Weight: 0.5 kg

These parameters ensure that the module can be deployed in various industrial environments without performance degradation. The wide input range accommodates fluctuating power sources, while the stable 5.1 V output supports sensitive electronics.

Comparison with Similar Power Supply Modules

When compared to other power supplies in the same category, the 6AR1306-0LE00-0AA0 offers a notable balance of input flexibility and output capacity. For instance, many modules in this class provide either a narrower input range or lower output current. The table below illustrates how this Siemens module compares to typical alternatives:

This comparison highlights the Siemens module's superior input range and higher current capability, making it a versatile choice for demanding applications.

Applications and Use Cases

The 6AR1306-0LE00-0AA0 is ideal for powering control systems, PLCs, and industrial sensors. Its wide input range allows it to be used in installations where the supply voltage may vary, such as in battery-backed systems or renewable energy setups. The high output current supports multiple loads simultaneously, reducing the need for additional power distribution units.

In manufacturing environments, this module can reliably power logic circuits and field devices, ensuring uninterrupted operation. Its compact size enables mounting in tight enclosures, and the wide temperature range ensures performance in both cold and warm climates.

Installation and Setup

Installing the 6AR1306-0LE00-0AA0 is straightforward. The module's small footprint allows for DIN-rail or panel mounting, though specific mounting instructions should be followed per the manufacturer's guidelines. Ensure proper ventilation to maintain the operating temperature within the specified range. The input and output connections should be made with appropriate gauge wires to handle the 14 A output current safely.

Before powering up, verify that the input voltage is within the 8.5 to 36 V DC range. Incorrect voltage could damage the module or connected equipment. Always follow standard safety procedures when working with electrical equipment.

Maintenance and Reliability

Routine maintenance is minimal for the 6AR1306-0LE00-0AA0. Periodically inspect the module for dust accumulation and ensure that the ambient temperature and humidity remain within specified limits. The module's robust design, with no moving parts, contributes to long-term reliability, reducing downtime and maintenance costs.

Given its wide operating range and high efficiency, this power supply can help lower total cost of ownership by minimizing energy waste and extending service life.

Compatibility and Integration

The 6AR1306-0LE00-0AA0 is designed to integrate seamlessly into Siemens control systems and other industrial automation platforms. While specific communication protocols are not listed in the datasheet, the module's primary function is to provide stable DC power, making it compatible with any system requiring a 5.1 V supply.

For detailed integration guidance, refer to the official Siemens documentation or contact AutoDCSTech for technical support.

Troubleshooting and Common Issues

If the output voltage is not present, check the input supply and connections. Verify that the input voltage is within the specified range. Overheating can occur if the ambient temperature exceeds 60 °C or if ventilation is blocked. In such cases, improve airflow or relocate the module to a cooler area.

If the module does not deliver the expected current, ensure that the load does not exceed 14 A. If problems persist, consult the manufacturer's manual or contact AutoDCSTech for assistance.

Product Support and Availability

The 6AR1306-0LE00-0AA0 is available at AutoDCSTech. Contact our team for current stock and pricing. We are committed to providing genuine Siemens products and technical support to ensure your operations run smoothly.
