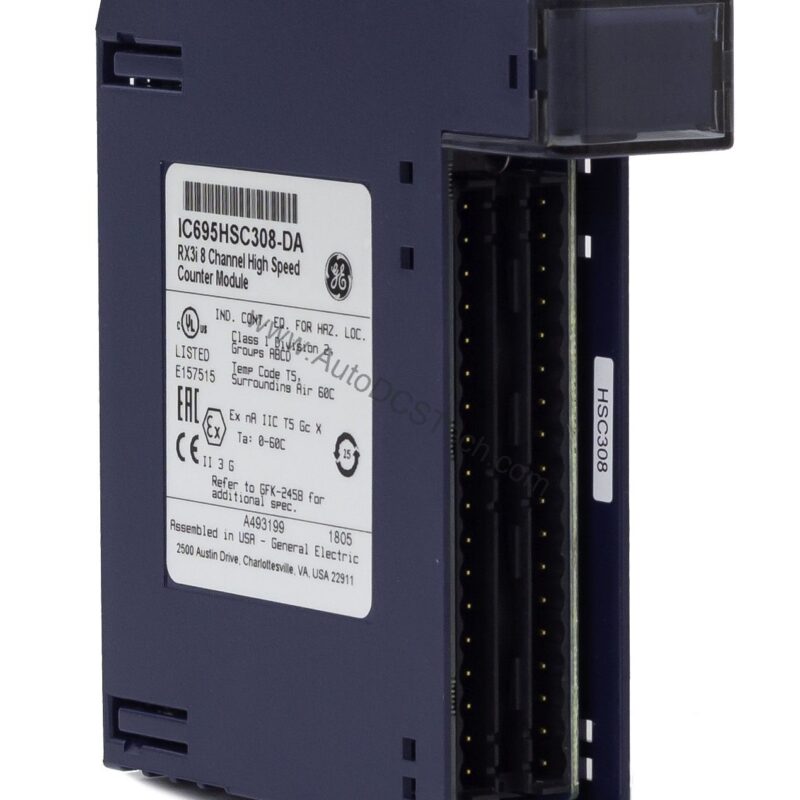

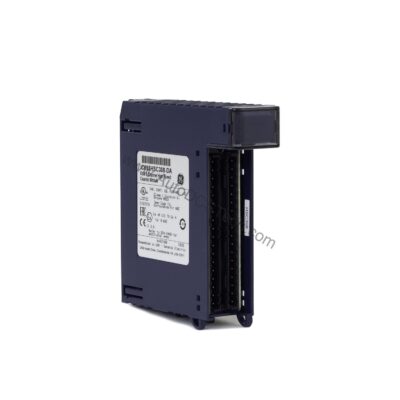

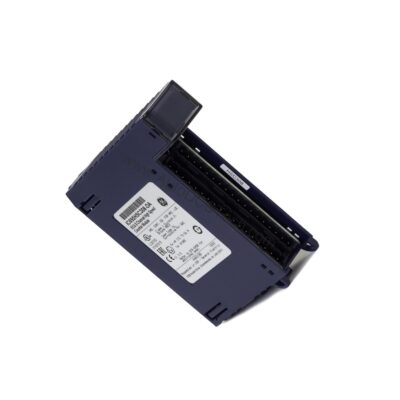

IC695HSC308: High-speed counter module
The IC695HSC308 is the High-speed counter module covered on this page. The attribute that decides whether it fits the existing installation without modification is 16 inputs.
What separates this variant from its siblings is high-speed counter module. A processor or controller is selected on memory, scan time and platform compatibility before anything else. high-speed counter module sets how much programme fits, how fast the logic executes and which I/O and networks the unit can host — the three things that decide whether an existing application migrates without a rewrite. Confirming 16 inputs against the installed controller family is the check that prevents a processor that boots but cannot run the existing project.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC695HSC308 |
| Series | PACSystem RX3i |
| Part Number | IC695HSC308 |
| Product Type | High-speed counter module |
| Compatibility | PACSystems RX3i |
| Counters | 8 |
| Inputs | 16 |
| Outputs | 14 |
| Output Voltage Range | 4.7 to 40 Volts DC |
| Power Requirements | 561 milliamps at 3.3 Volts DC, 94 milliamps at 5 Volts DC |
| Maximum Count Rates | 1.5 MHz |
| Counting Range | -2147483648 to 2147483647 |
| Hot insertion/extraction | Supported |
| I/O Interrupts | Supported |
| Module Fault Reporting | Supported |
| Oscillator Accuracy | ±100 PPM |
| Oscillator Drift | ±5 PPM/year |
| Input Voltages | 5VDC nominal: 4.7VDC to 5.5VDC |
| 12 to 24VDC nominal | 10VDC to 26.4VDC |
| Output Current Rating | 1.5A maximum per channel, 10.5A maximum per module |
| Output Delay | Off to On: 125uS @ 1.5A |
| On to Off | 85uS @ 1.5A |
| Compliance | ATEX, CE, 1604, UL/CUL 508. |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-rx3i-ic695hsc304-high-speed-counter-module-overview | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC695HSC308 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
