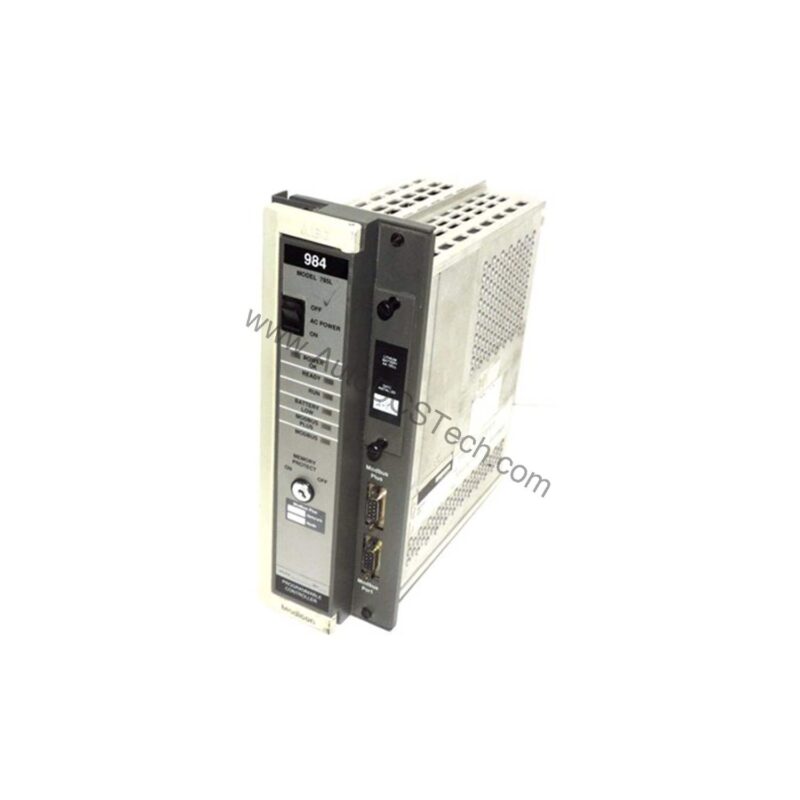

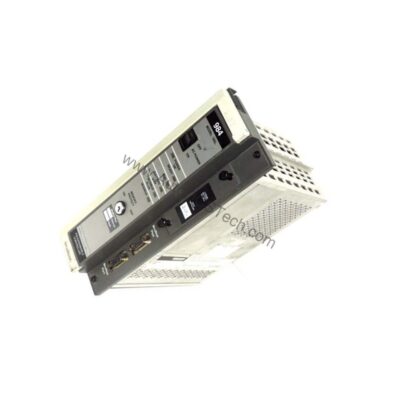

PC-L984-785: Compact CPU
The PC-L984-785 is the Compact CPU covered on this page. The attribute that decides whether it fits the existing installation without modification is 5.00 lbs (2.27 kg).
The reason to specify this exact variant is compact cpu. A processor or controller is selected on memory, scan time and platform compatibility before anything else. compact cpu sets how much programme fits, how fast the logic executes and which I/O and networks the unit can host — the three things that decide whether an existing application migrates without a rewrite. Confirming 5.00 lbs (2.27 kg) against the installed controller family is the check that prevents a processor that boots but cannot run the existing project.
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Brand | Schneider |
| Part Number | PC-L984-785 |
| Product Type | Compact CPU |
| Product Line | Modicon |
| Part Number | PC-L984-785 |
| Weight | 5.00 lbs (2.27 kg) |
| Logic Memory | 24k |
| Registers | 1920 |
| Total Memory | 42k |
| Scan Time | 2.5 ms/k |
| Communication Ports | 1 Modbus, 1 Modbus+ |
| Local I/O | 256 |
| Total I/O | 512/512 |
| I/O Drops | 1 |
| Maximum Racks | 4 |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| schneider-140cpu65160c-modicon-quantum-unity-processor-266-mhz | confirm the configuration against your installation |
| schneider-170adm85010-modicon-momentum-i-o-module-for-industrial-control | confirm the configuration against your installation |
| schneider-140qsm67160-modicon-quantum-hot-standby-unit | confirm the configuration against your installation |
| schneider-140qucmoe-universal-communications-module-for-modicon-quantum | confirm the configuration against your installation |
| schneider-140x816-modbus-plus-floating-point-option-adapter-overview | confirm the configuration against your installation |
| schneider-140xca71706-modicon-quantum-backplane-expander-cable-2m | confirm the configuration against your installation |
| schneider-140xca71709-modicon-quantum-backplane-expander-cable-3m | confirm the configuration against your installation |
| schneider-140xcp40200-rear-rail-bracket-for-modicon-quantum-systems | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | PC-L984-785 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
